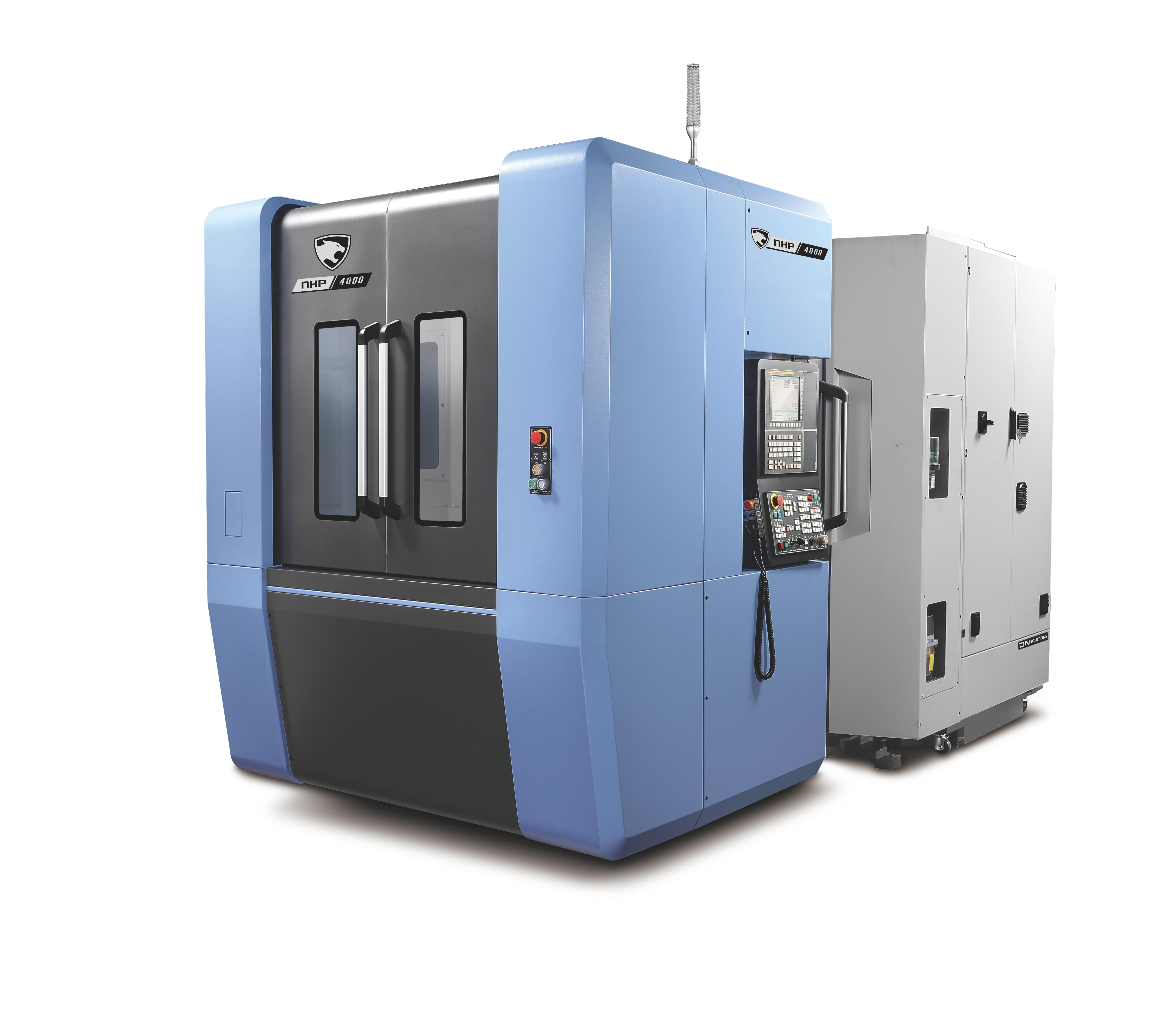

NHP 4000
- Unmatched Accuracy and Productivity: Thermal compensation and minimized non-cutting time ensure precise and efficient machining.
- Enhanced Performance: Faster feed rates, tool changes, and table rotation boost productivity, especially in the NHP 5500 model.
- Eco-Friendly and Reliable: Grease lubrication and advanced cooling systems offer sustainable operation with long-term stability and accuracy.
Highlights
- Travels - X Axis Travel distance (mm): 560
- Travels - Y Axis Travel distance (mm): 640
- Travels - Z Axis Travel distance (mm): 660
Compatible Control System
Series description
|

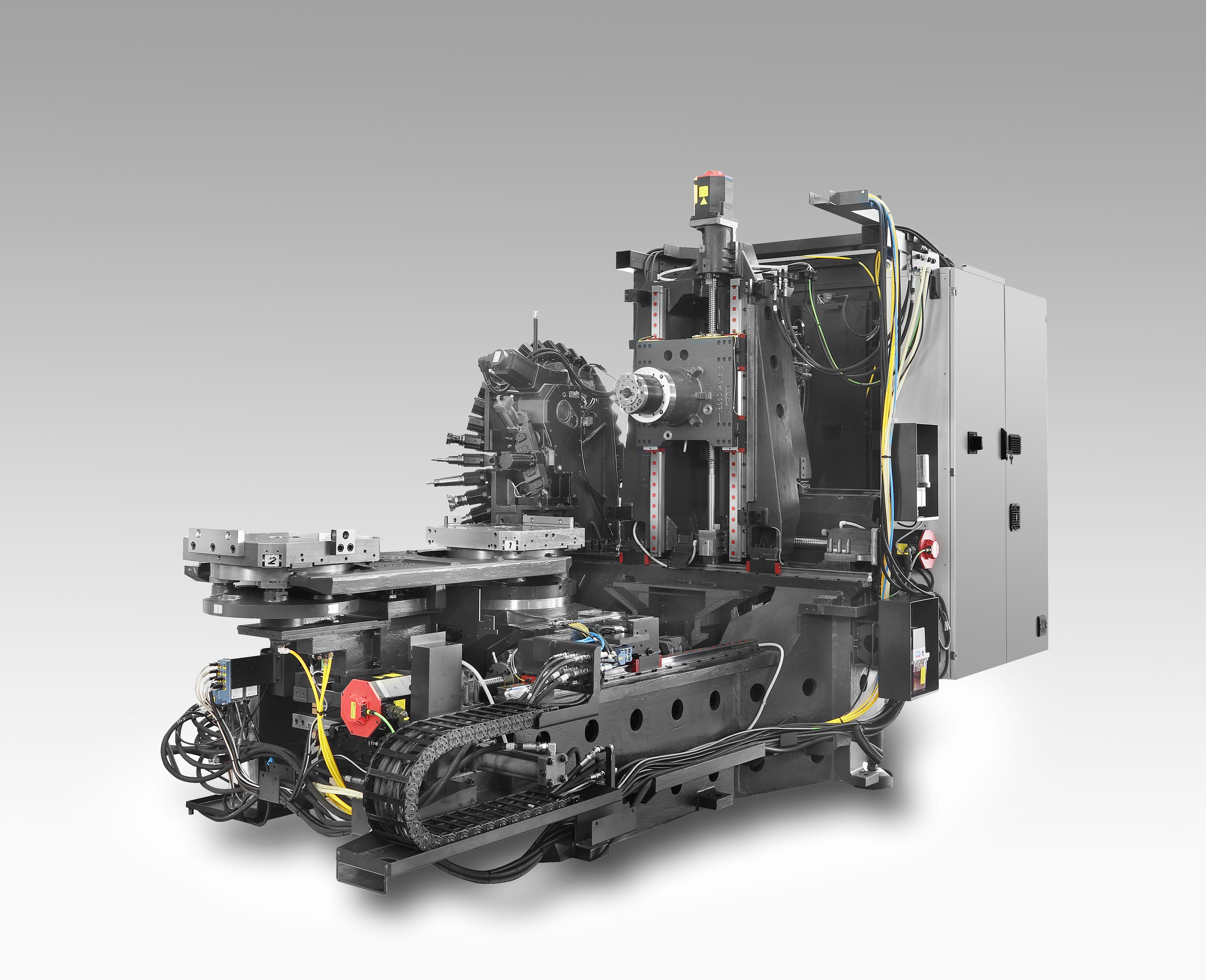

The NHP Series, including the NHP 4000/5000 and NHP 5500 2nd models, consists of advanced horizontal machining centers known for their stable structures, thermal compensation systems, and minimized non-cutting time, delivering exceptional accuracy and productivity. These machines use eco-friendly grease lubrication for all ballscrews and are ideal for machining small to medium-sized components. The NHP 5500 2nd model further enhances productivity with faster feed rates, reduced tool change times, and improved table rotation speed. Equipped with spindle smart thermal control, cooling systems, and a 3-point support structure, it ensures superior machining accuracy and stable, continuous operation, complemented by various automation solutions and efficient chip removal. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 560 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 640 |
| Travels - Z Axis Travel distance (mm) | 660 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 60 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 60 |
| Feed rate - Z Axis Rapid Traverse | 60 |
Table
| Max. Workpiece weight (kg) | 400 |
|---|---|
| Pallet Size (mm) | 400x400 |
Workpiece capacity
| Max. Workpiece Diameter (mm) | 630 |
|---|---|
| Max. Workpiece Height (mm) | 900 |
| Max. Workpiece weight (kg) | 400 |
Tool storage capacity
| Machining center - No. of tool station | 40 |
|---|
Main spindle
| Main Spindle Max. Speed | 15000 |
|---|---|
| Main Spindle Max. Power | 30 |
| Main Spindle Max. Torque | 229.9 |
| Tool Taper (ISO) | 40 |
Turret
| Turret - No. of tool station | 40 |
|---|
Dimensions
| Length (mm) | 4950 |
|---|---|
| Height (mm) | 2690 |
| Width (mm) | 2300 |
| Weight (kg) | 9700 |
| Name | Download | File type | |
|---|---|---|---|
|
NHP_4000_5000 .pdf | 2920 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
