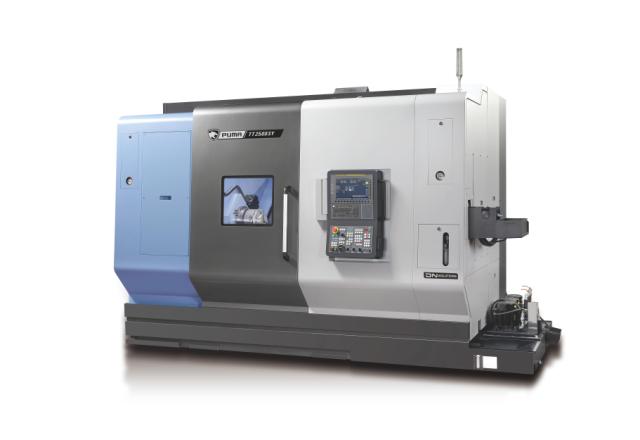

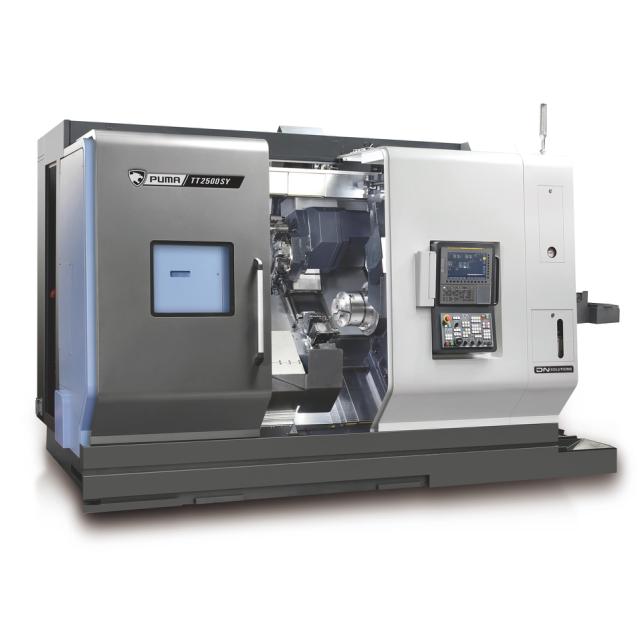

PUMA TT2500 Series
- Dual Spindle Efficiency: Twin opposed spindles with equal power allow simultaneous machining on two faces, significantly increasing productivity.
- Flexible Machining Capabilities: Equipped with upper/lower turrets and Y-axis functionality, these machines handle complex tasks with precision and efficiency.
- Automated Operation: Independent spindle processing and automatic workpiece ejection streamline operations, reducing downtime and maximizing throughput.
Highlights
- Travels - X Axis Travel distance (mm): 255
- Travels - Y Axis Travel distance (mm): 120
- Travels - Z Axis Travel distance (mm): 800
- Chuck size (mm): 254
- Max. Turning Diameter (mm): 350
- Max. Turning Length (mm): 350
Compatible Control System
Series description
|
The PUMA TT1300, TT1800, TT2100, and TT2500 series are high-productivity horizontal turning centers with bar capacities ranging from 42mm to 81mm. These machines are equipped with twin opposed spindles and upper/lower turrets, featuring Y-axis capabilities for simultaneous two-face machining. Both spindles have equal power and capacity, allowing independent operation and automatic workpiece ejection, significantly enhancing productivity. Favored globally, the PUMA TT series is renowned for its best-in-class performance and reliability, making it one of DN Solutions' top-selling products. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 255 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 120 |
| Travels - Z Axis Travel distance (mm) | 800 |
| Travels - X Axis Rapid Traverse (m/min) | 20 |
| Travels - Y Axis Rapid Traverse (m/min) | 75 |
| Travels - Z Axis Rapid Traverse (m/min) | 24 |
Tool storage capacity
| Machining center - No. of tool station | 12 |
|---|
Capacity
| Chuck size (mm) | 254 |
|---|---|
| Max. Turning Diameter (mm) | 350 |
| Max. Turning Length (mm) | 350 |
| Bar Capacity (mm) | 81 |
Main spindle
| Main Spindle Max. Speed | 3500 |
|---|---|
| Main Spindle Max. Power | 26 |
| Main Spindle Max. Torque | 433 |
Turret
| Rotary Tool (r/min) | 4000 |
|---|---|
| Turret - No. of tool station | 12 |
Dimensions
| Length (mm) | 4050 |
|---|---|
| Height (mm) | 2480 |
| Width (mm) | 2210 |
| Weight (kg) | 12700 |
| Name | Download | File type | |
|---|---|---|---|
|
PUMA_TT2500.pdf | 4682 KB | |
|
TOOLING SYSTEM-PUMA-TT-2500.pdf | 159 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
