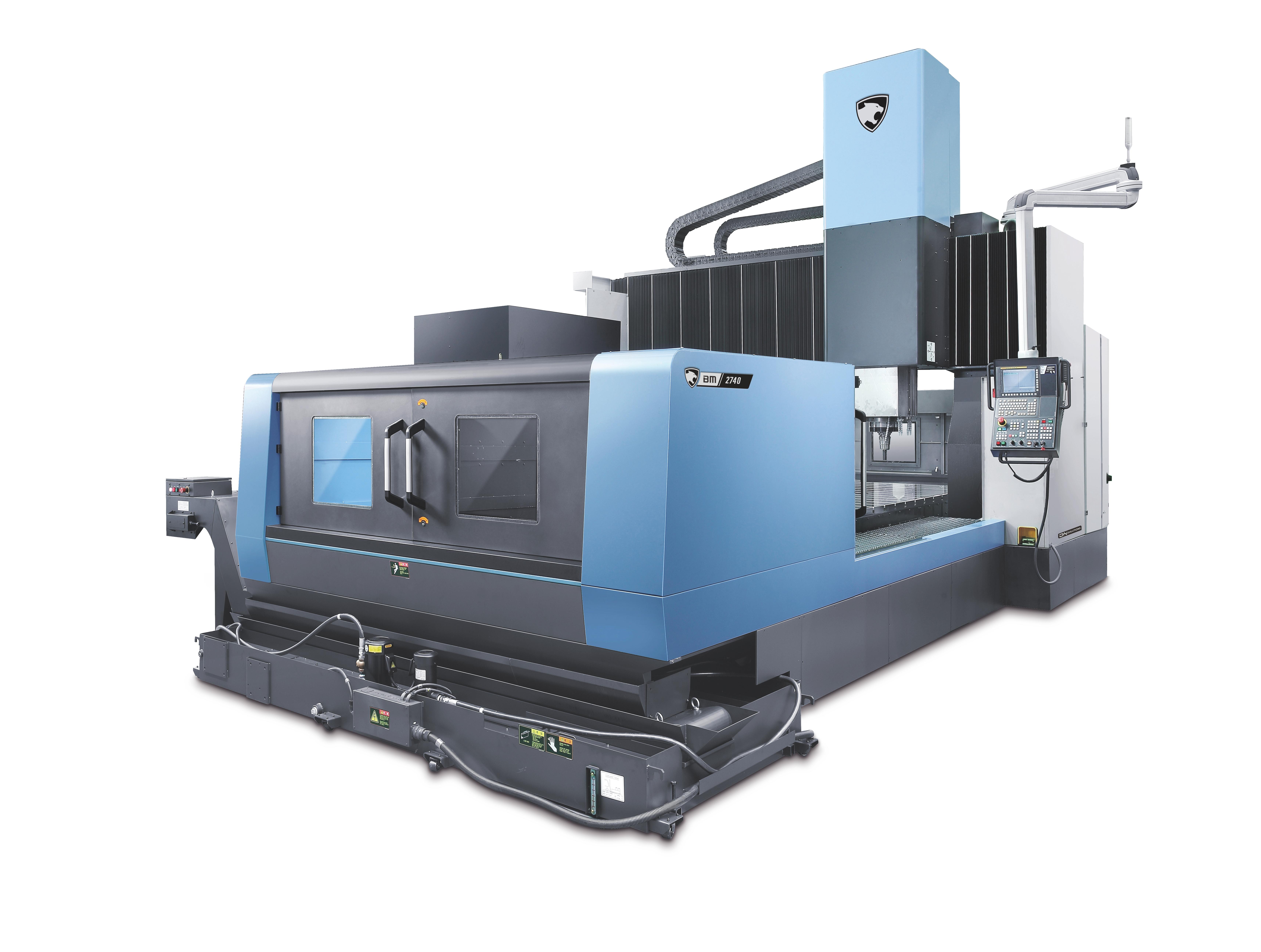

    BM 2740

    DOUBLE COLUMN MACHINING CENTER

    • Versatile Performance: Suitable for a range of tasks from roughing to finishing, thanks to its low-vibration built-in spindle.
    • Enhanced Efficiency: Improved design increases operational efficiency, raising overall productivity.
    • Maximum Added Value: Delivers high-quality results, providing significant value to customers' machining operations.

    Highlights

    • Travels - X Axis Travel distance (mm): 4000
    • Travels - Y Axis Travel distance (mm): 2700
    • Travels - Z Axis Travel distance (mm): 800

    Compatible Control System

      Heidenhain

    Series description

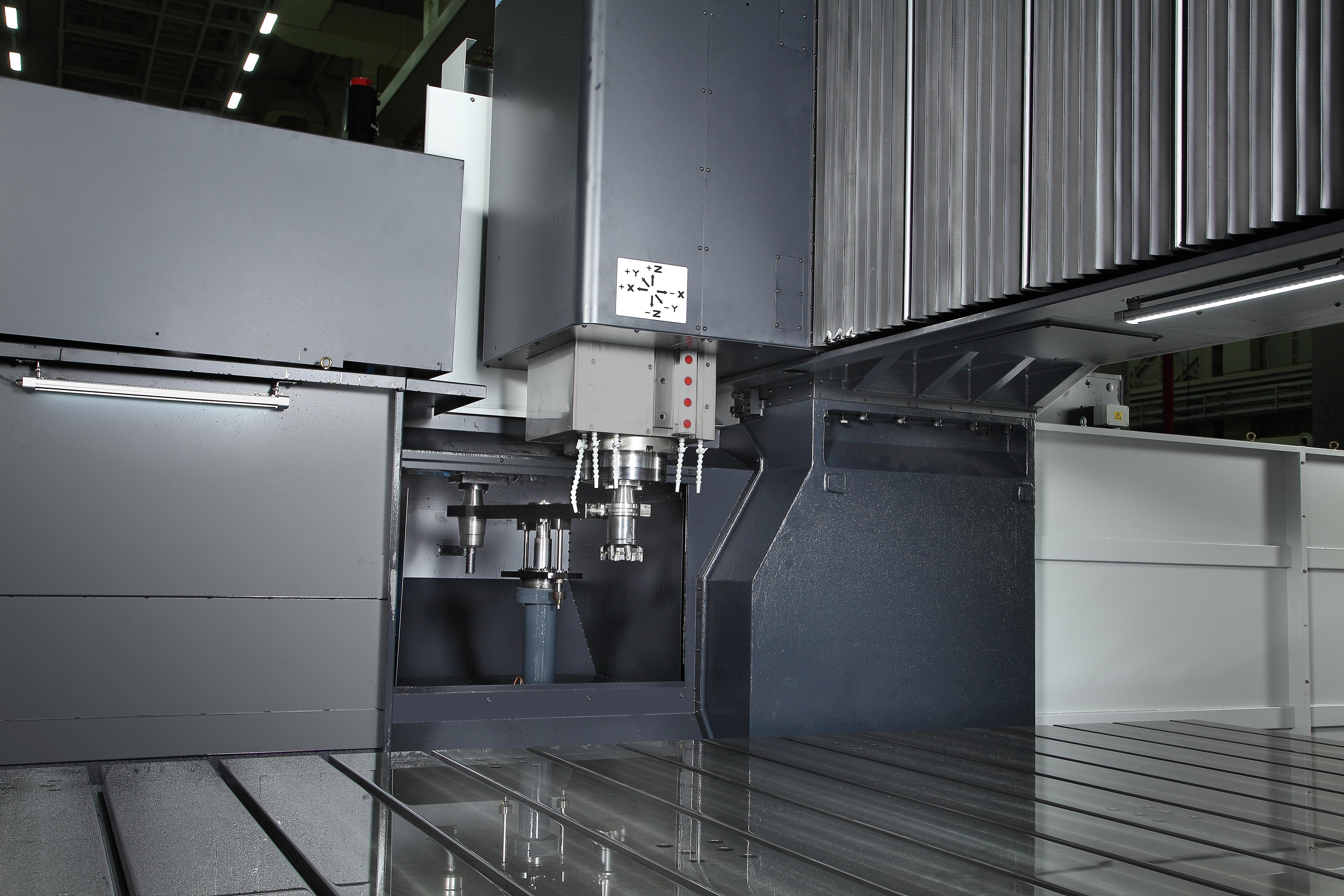

    The BM Series is a large double-column type machining center ideal for mold processing. It features a low-vibration built-in spindle, making it suitable for a range of tasks from roughing to finishing. The improved design enhances efficiency, boosting productivity and maximizing added value for customers.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 4000
    Travels - Y Axis Travel distance (mm) 2700
    Travels - Z Axis Travel distance (mm) 800

    Feed rates

    Feed rate - X Axis Rapid Traverse 12
    Feed rate - Y Axis Rapid Traverse 16
    Feed rate - Z Axis Rapid Traverse 16

    Table

    Table Length (mm) 4000
    Table Width (mm) 2500
    Max. Workpiece weight (kg) 15000
    Max. Table weight (kg) 15000

    Workpiece capacity

    Max. Workpiece Height (mm) 938
    Max. Workpiece weight (kg) 15000

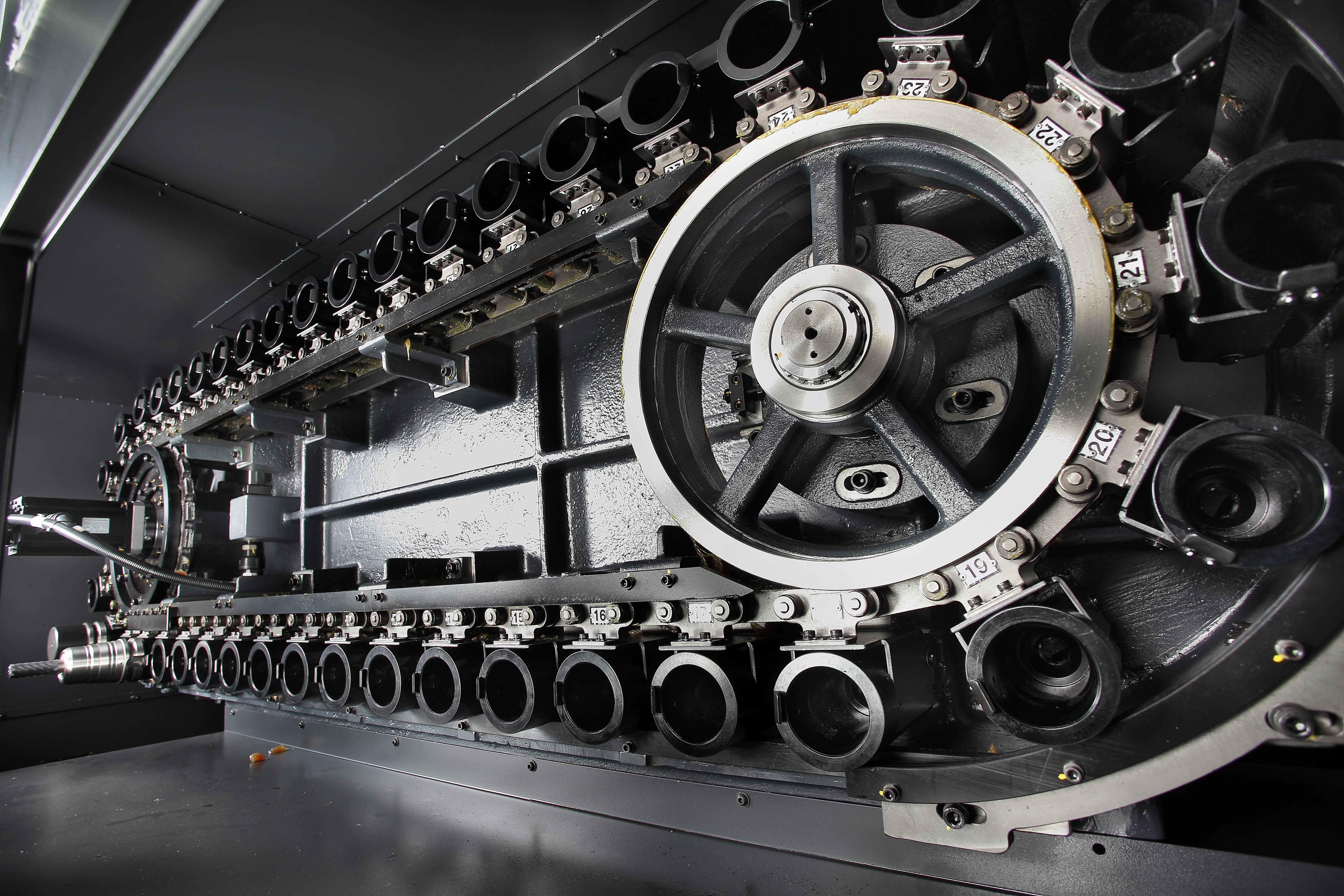

    Tool storage capacity

    Machining center - No. of tool station 40/60

    Capacity

    Table to spindle nose 950

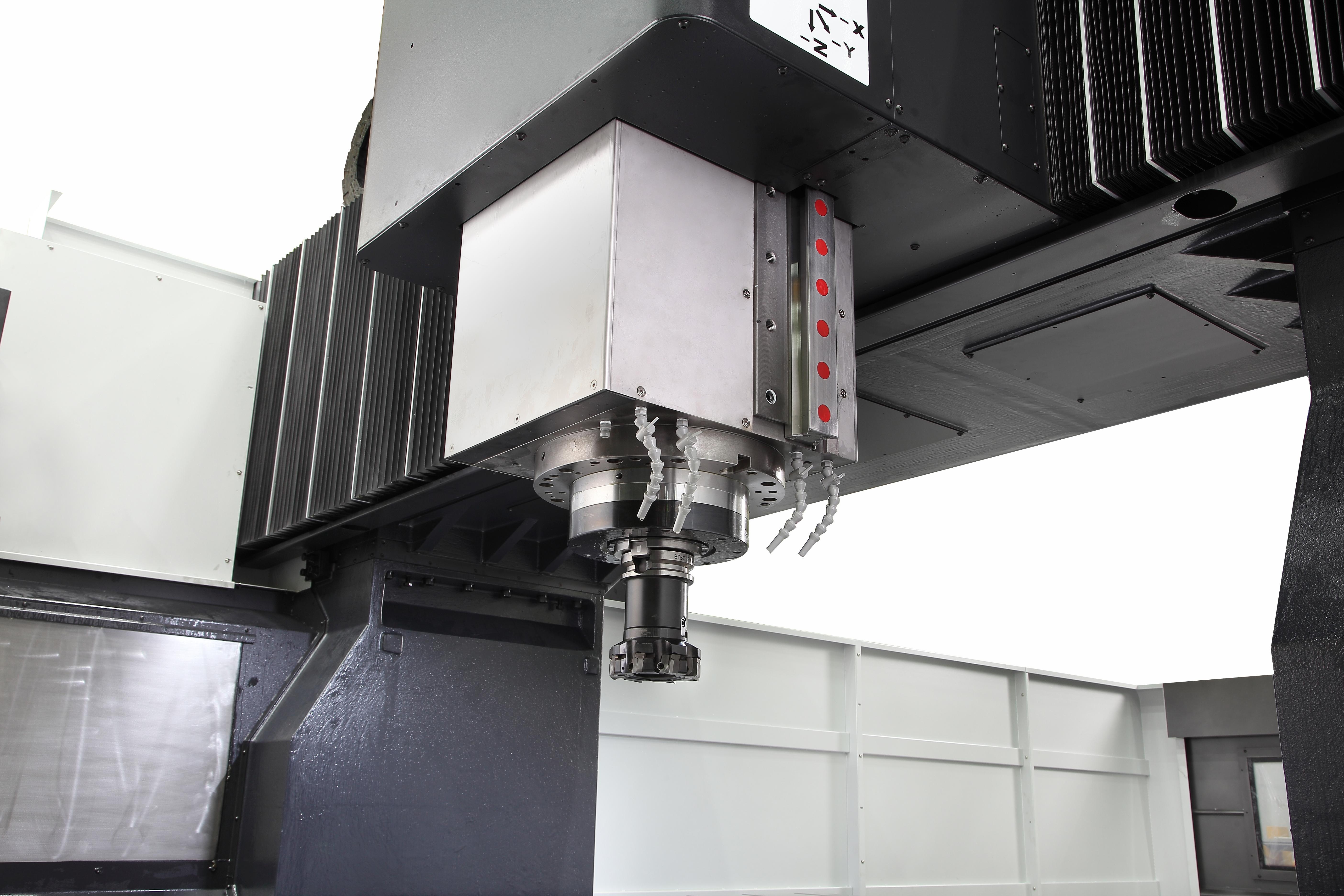

    Main spindle

    Tool Taper (ISO) 50

    Turret

    Turret - No. of tool station 40

    Dimensions

    Length (mm) 5535
    Height (mm) 4675
    Width (mm) 10825
    Weight (kg) 48000
      Name Download File type
    BM 2740
    		BM-M series .pdf 3198 KB
    		.pdf
