HC 500 II
- Space-Efficient Design: Compact footprint allows for optimal use of limited factory space.
- High Productivity: Engineered to deliver maximum output with precision and reliability.
- User-Friendly Features: Includes a range of convenient features to enhance operational efficiency and ease of use.
Highlights
- Travels - X Axis Travel distance (mm): 850
- Travels - Y Axis Travel distance (mm): 700
- Travels - Z Axis Travel distance (mm): 750
Compatible Control System
Series description
|

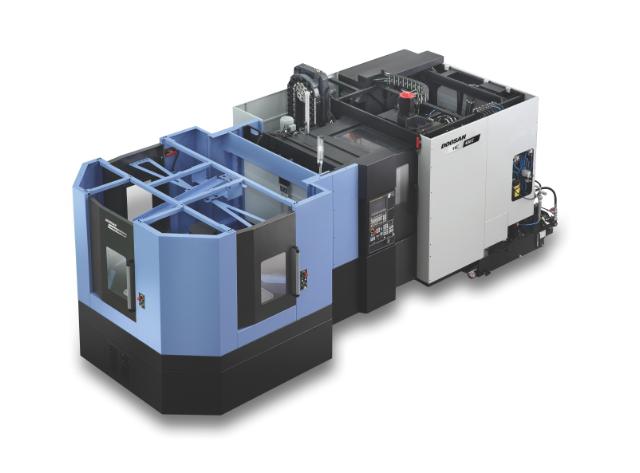

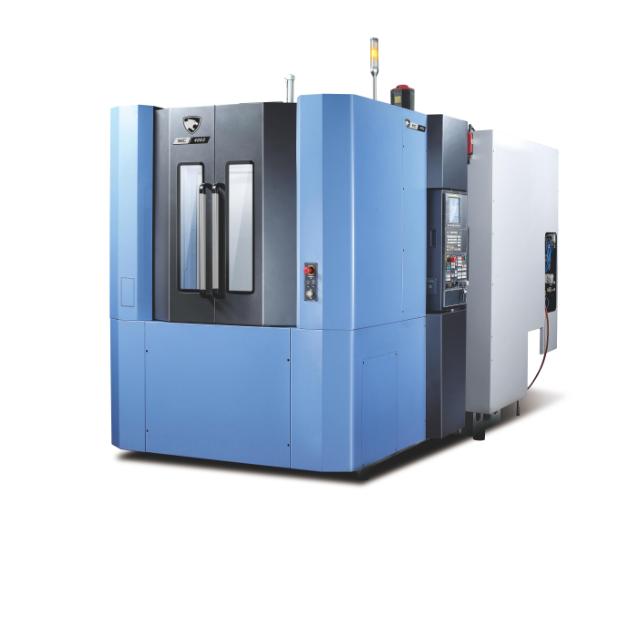

The HC II Series is a compact horizontal machining center engineered for maximum productivity and accuracy. Its space-efficient design allows for flexible use of limited factory space while offering a range of convenient features to enhance operational efficiency and precision. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 850 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 700 |
| Travels - Z Axis Travel distance (mm) | 750 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 40 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 40 |
| Feed rate - Z Axis Rapid Traverse | 40 |

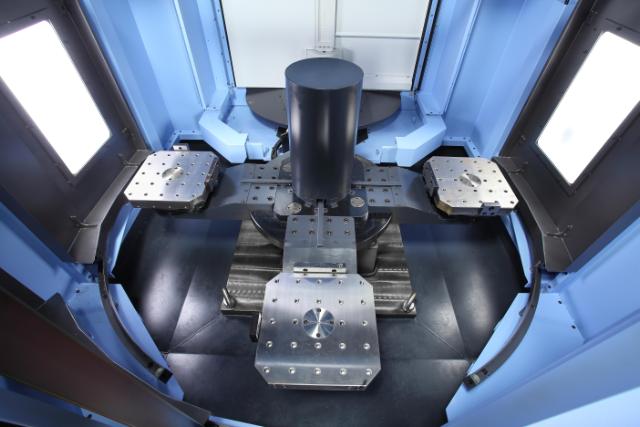

Table
| Table Length (mm) | 500 |
|---|---|
| Table Width (mm) | 500 |
| Max. Workpiece weight (kg) | 500 |
| Pallet Size (mm) | 500X500 |
| Rotary Table Diameter (mm) | 500X500 |
| Max. Table weight (kg) | 500 |
Workpiece capacity
| Max. Workpiece Diameter (mm) | 800 |
|---|---|
| Max. Workpiece Height (mm) | 900 |
| Max. Workpiece weight (kg) | 500 |
Tool storage capacity
| Machining center - No. of tool station | 40/60/80/120/170/262 |
|---|
Capacity
| Table to spindle nose | 750 |
|---|
Main spindle
| Tool Taper (ISO) | 40 |
|---|
Dimensions
| Length (mm) | 5320 |
|---|---|
| Height (mm) | 3000 |
| Width (mm) | 2680 |
| Weight (kg) | 12500 |
| Name | Download | File type | |
|---|---|---|---|
|
HC II series.pdf | 2575 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
