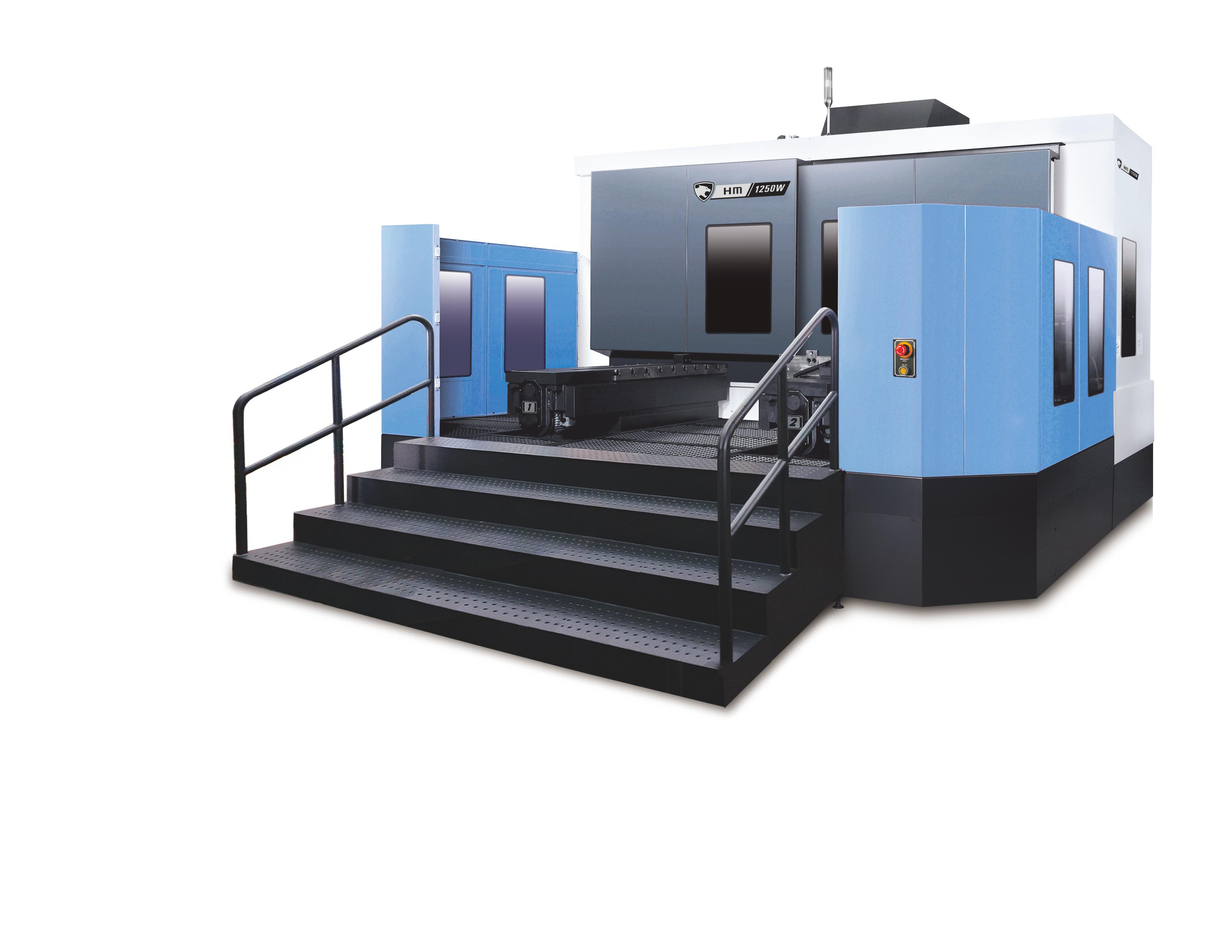

HM 1250W
- Versatile Machining: Accommodates large workpieces with 1000/1250mm pallets and optional W-axis for a wide range of applications.

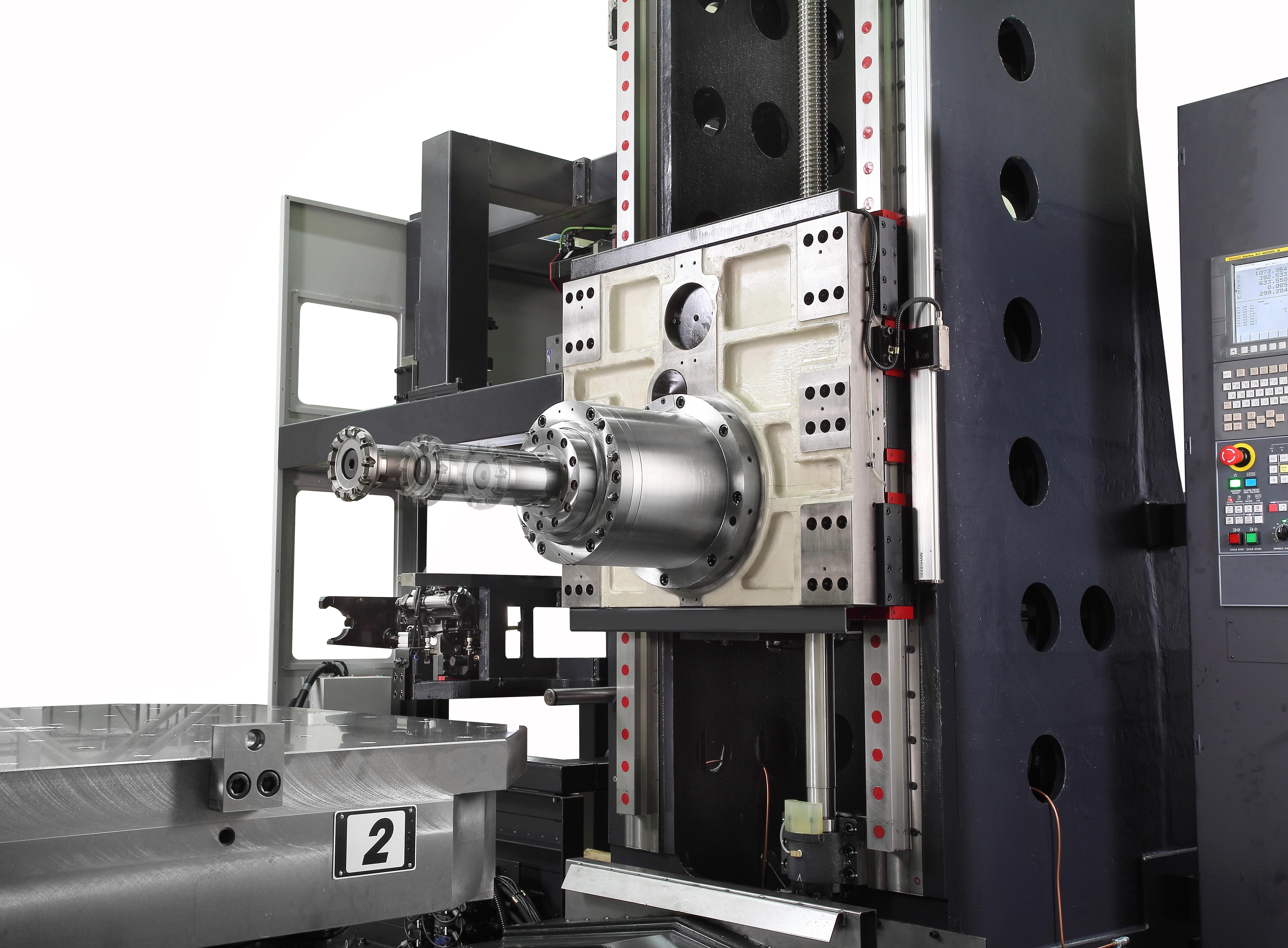

- High Productivity: Heavy-duty box guideways and high-torque gearbox spindle maximize cutting efficiency and output.
- Minimized Downtime: Designed to reduce non-cutting time, enhancing overall productivity and value.
Highlights
- Travels - X Axis Travel distance (mm): 2100
- Travels - Y Axis Travel distance (mm): 1400
- Travels - Z Axis Travel distance (mm): 1400
Compatible Control System
Series description
|

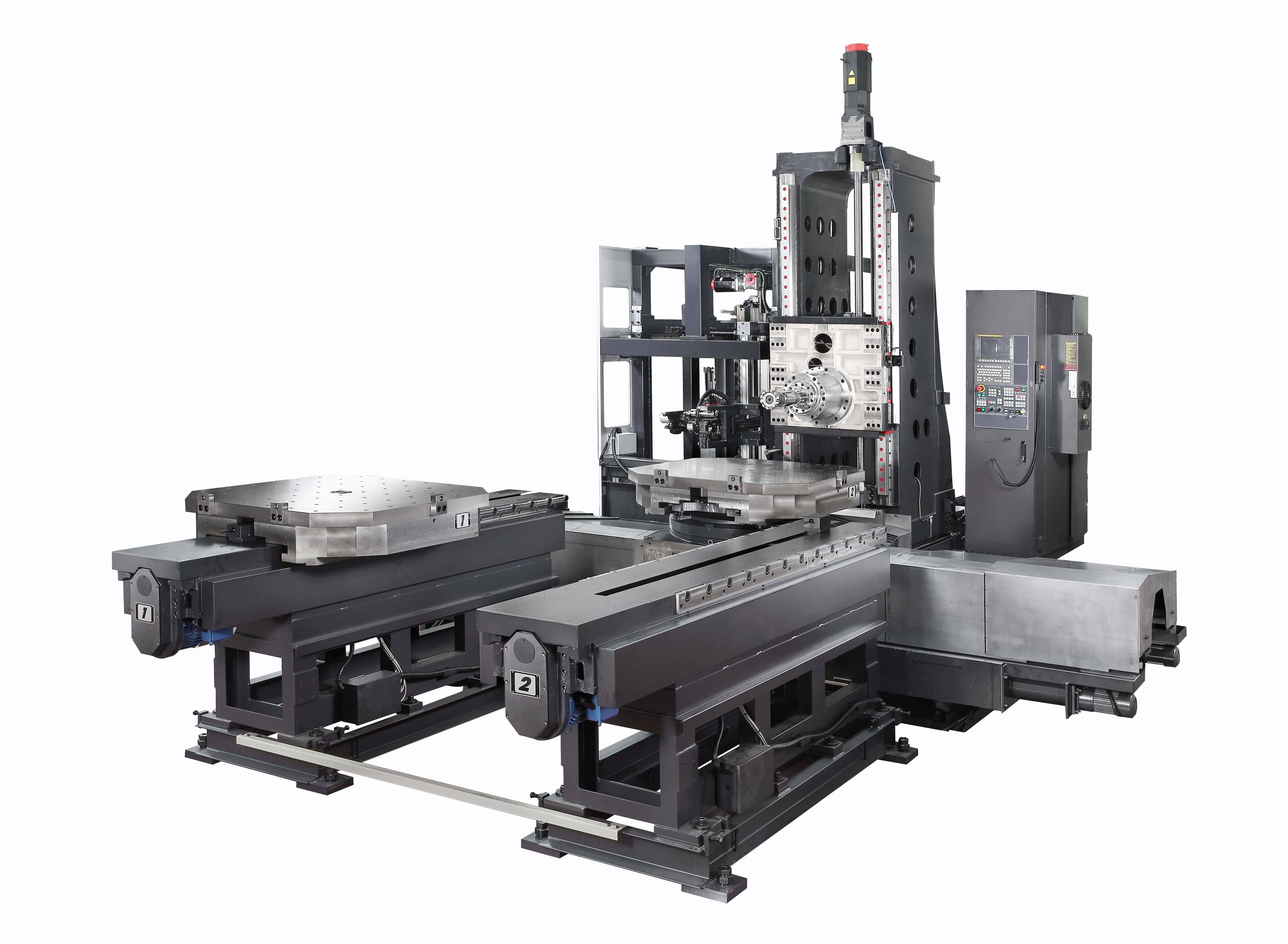

The HM Series is a twin-pallet horizontal machining center specifically designed for processing large workpieces. With a 1000/1250mm pallet size and optional W-axis capability, it supports a wide range of machining applications. The series features heavy-duty box guideways, a high-torque gearbox spindle, and minimized non-cutting time, ensuring exceptional productivity and added value for users. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 2100 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 1400 |
| Travels - Z Axis Travel distance (mm) | 1400 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 24 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 24 |
| Feed rate - Z Axis Rapid Traverse | 24 |
Table
| Table Length (mm) | 1250 |
|---|---|
| Table Width (mm) | 1250 |
| Max. Workpiece weight (kg) | 5000 |
| Pallet Size (mm) | 1250X1250 |
| Rotary Table Diameter (mm) | 1250X1250 |
| Max. Table weight (kg) | 5000 |
Workpiece capacity
| Max. Workpiece Diameter (mm) | 2000/2300 |
|---|---|
| Max. Workpiece Height (mm) | 1725 |
| Max. Workpiece weight (kg) | 5000 |
Tool storage capacity
| Machining center - No. of tool station | 60/90/120/196/256/316 |
|---|
Capacity
| Table to spindle nose | 1450 |
|---|
Main spindle
| Tool Taper (ISO) | 50 |
|---|
Dimensions
| Length (mm) | 11526 |
|---|---|
| Height (mm) | 5481 |
| Width (mm) | 5822 |
| Weight (kg) | 33000 |
| Name | Download | File type | |
|---|---|---|---|
|
HM_1000_1250_1250W .pdf | 3470 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
