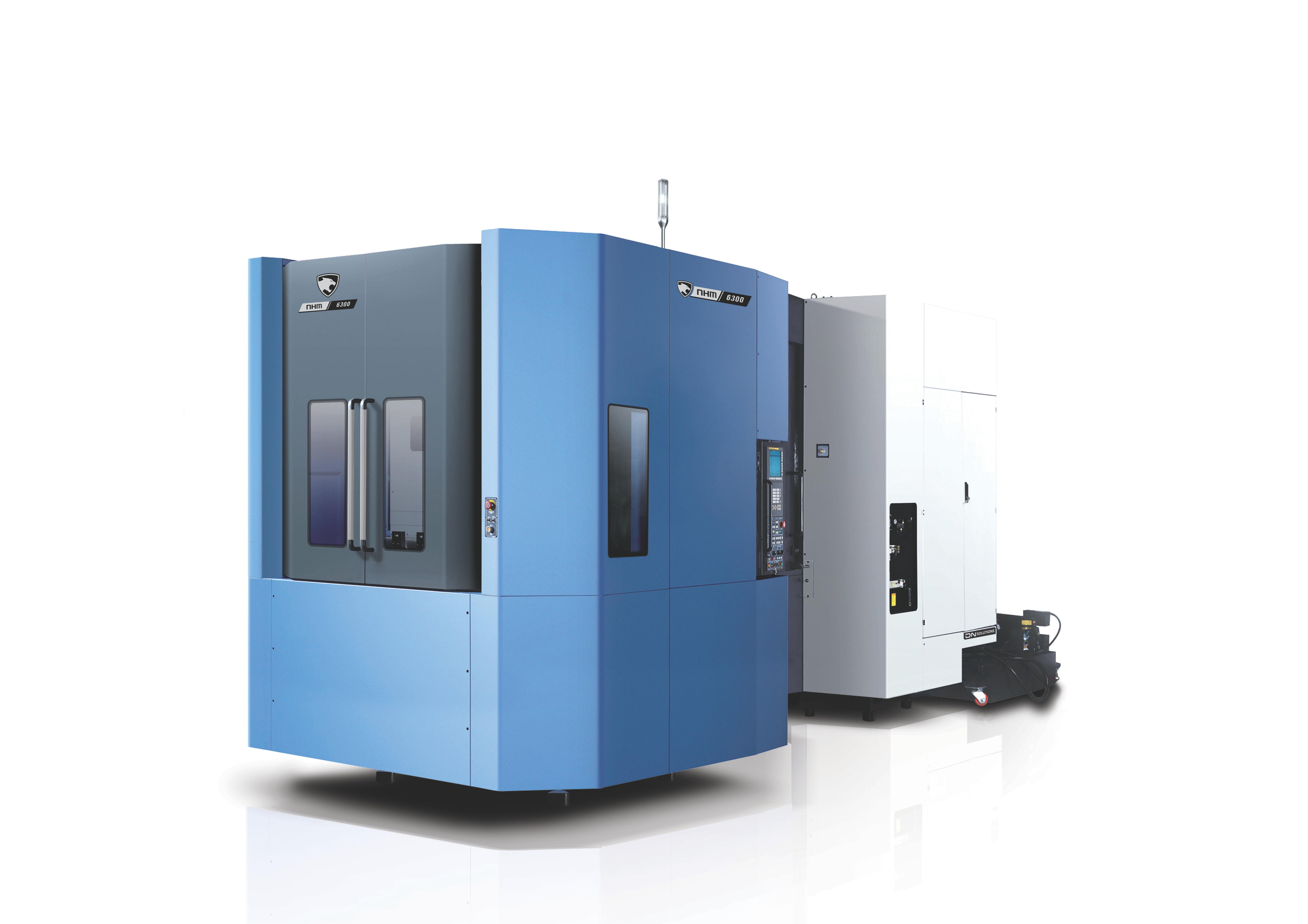

    NHM 6300

    HIGH CAPABILITY HORIZONTAL MACHINING CENTER

    • Superior Machining Capabilities: Offers the largest specifications and powerful cutting performance for diverse production needs.

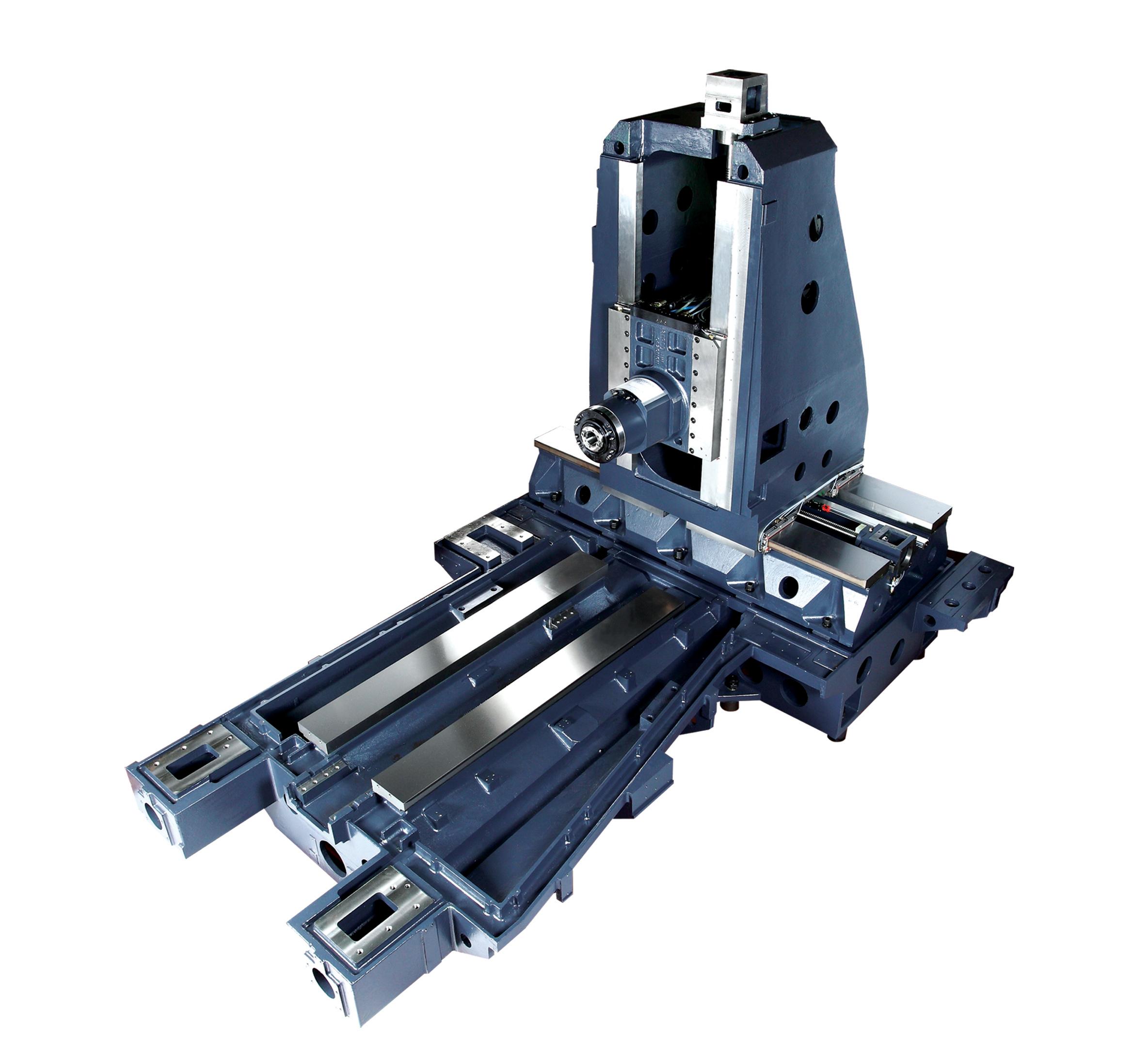

    • High Rigidity: Integrated box-type guideway structure ensures optimal stability and precision, even with hard-to-cut materials.

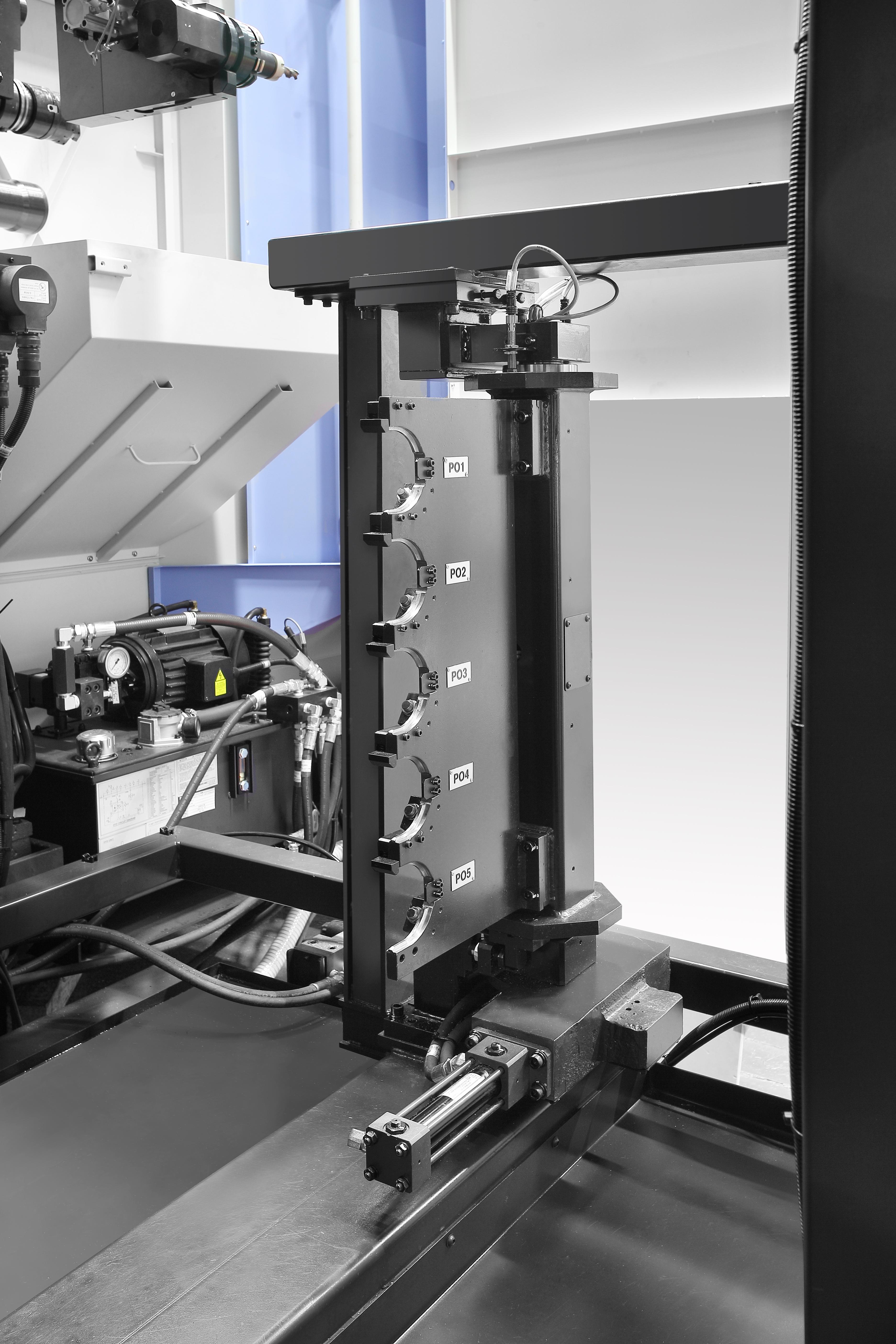

    • Increased Productivity: Fast tool and pallet replacement, driven by servo motors, minimizes non-cutting time for enhanced efficiency.

    Highlights

    • Travels - X Axis Travel distance (mm): 1050
    • Travels - Y Axis Travel distance (mm): 850
    • Travels - Z Axis Travel distance (mm): 1000

    Compatible Control System

      Fanuc

    Series description

    The NHM Series offers the largest machining specifications and production capabilities in its class, delivering powerful cutting performance to meet diverse production needs. With an integrated box-type guideway structure, it provides exceptional rigidity and is optimized for machining a wide range of materials, from standard components to hard metals. The series also features fast tool and pallet replacement driven by servo motors, minimizing non-cutting time and enhancing both reliability and productivity.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 1050
    Travels - Y Axis Travel distance (mm) 850
    Travels - Z Axis Travel distance (mm) 1000
    Travels - Z Axis Rapid Traverse (m/min) 30

    Feed rates

    Feed rate - X Axis Rapid Traverse 30
    Feed rate - Y Axis Rapid Traverse 30

    Table

    Max. Workpiece weight (kg) 1200
    Pallet Size (mm) 630

    Workpiece capacity

    Max. Workpiece Diameter (mm) 1050
    Max. Workpiece Height (mm) 1350
    Max. Workpiece weight (kg) 1200

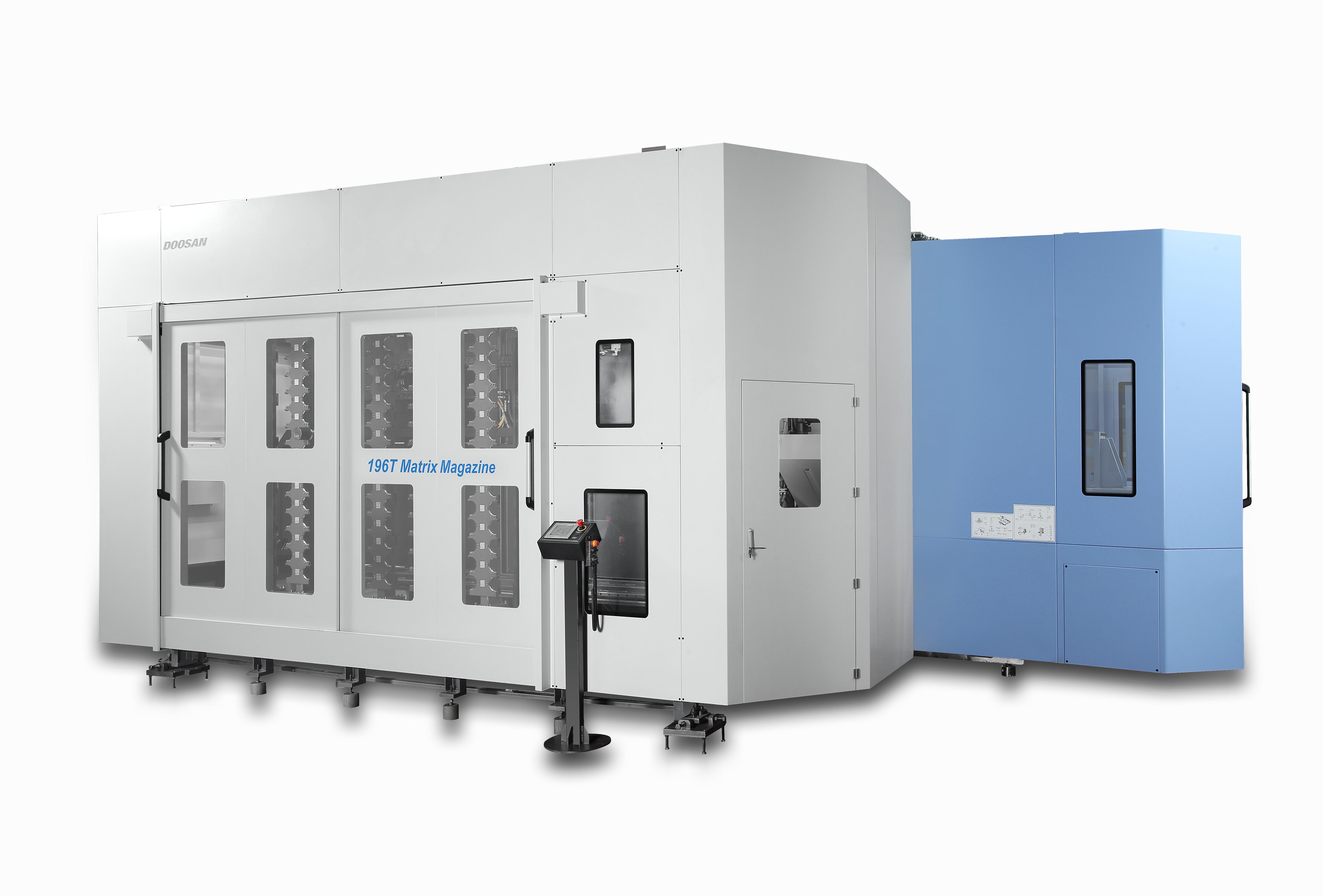

    Tool storage capacity

    Machining center - No. of tool station 60

    Main spindle

    Main Spindle Max. Speed 6000
    Main Spindle Max. Power 35
    Main Spindle Max. Torque 1732
    Tool Taper (ISO) 50

    Turret

    Turret - No. of tool station 60

    Dimensions

    Length (mm) 6410
    Height (mm) 3495
    Width (mm) 3930
    Weight (kg) 20500
      Name Download File type
    NHM 6300
    		NHM series.pdf 6581 KB
    		.pdf
