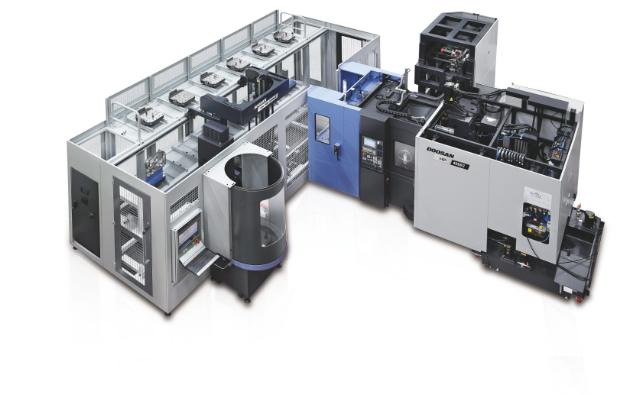

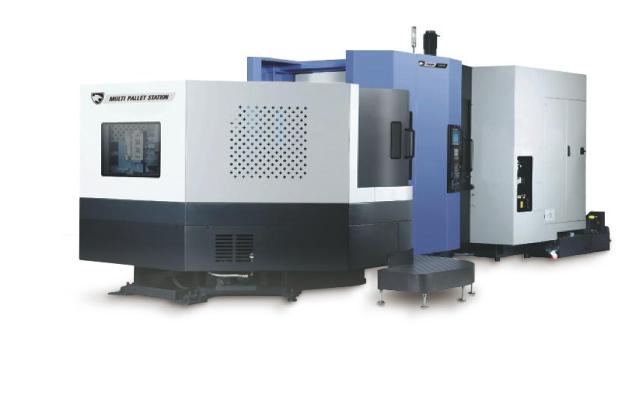

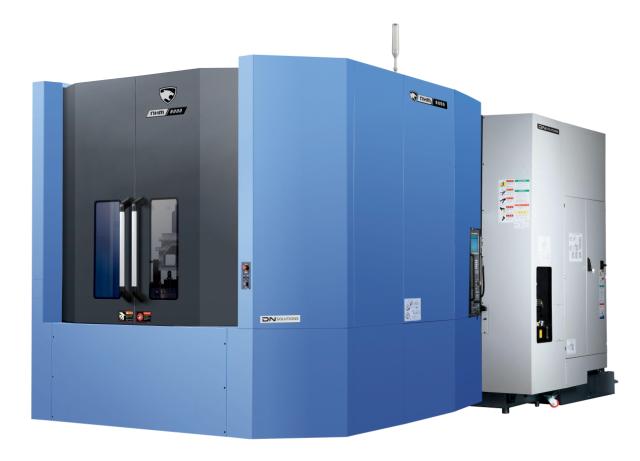

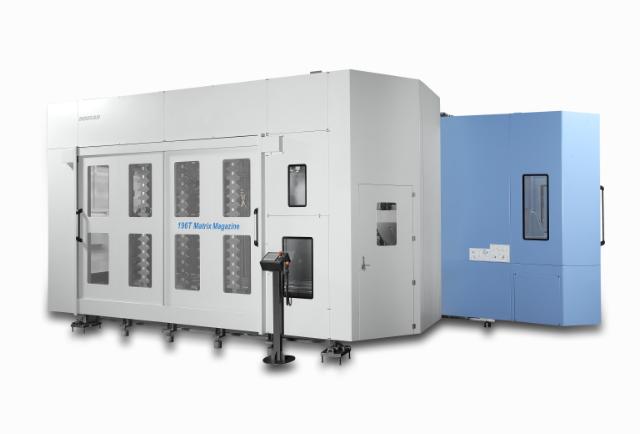

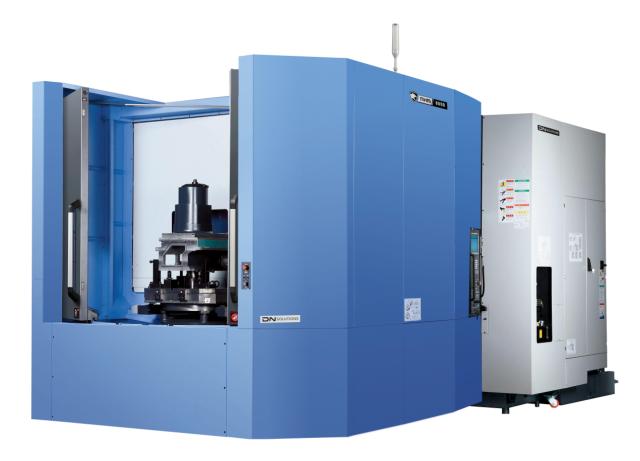

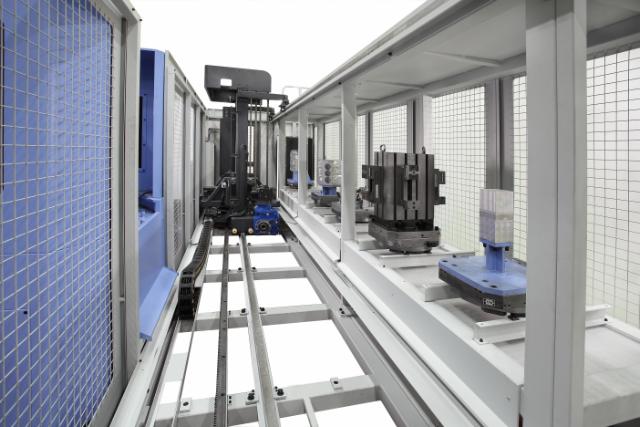

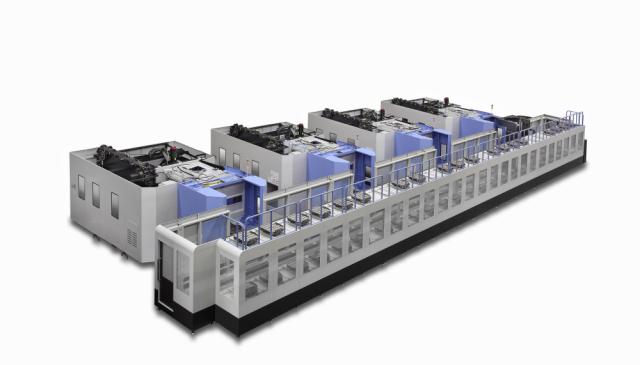

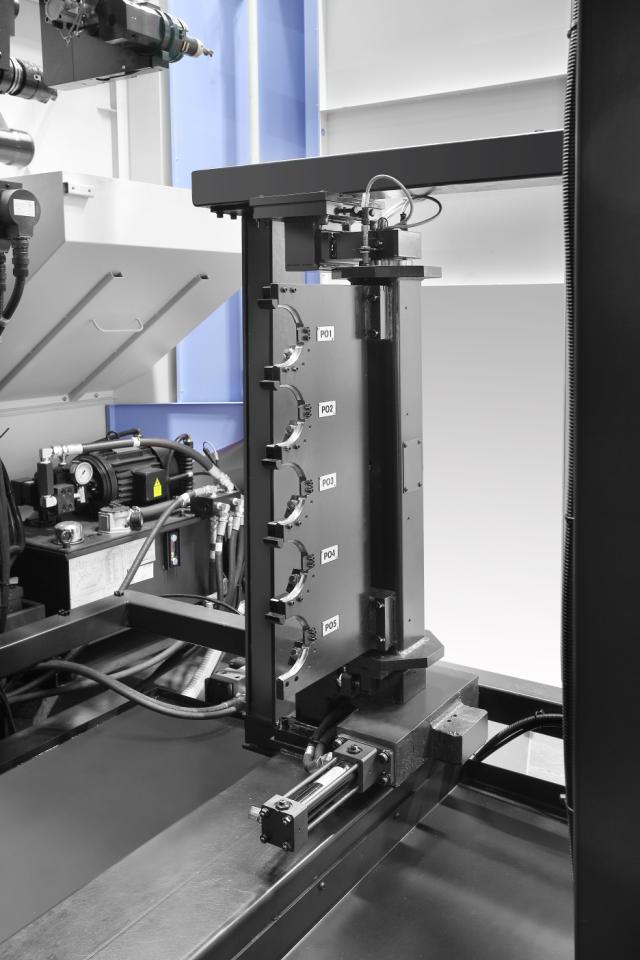

NHM 8000
- Superior Machining Capabilities: Offers the largest specifications and powerful cutting performance for diverse production needs.
- High Rigidity: Integrated box-type guideway structure ensures optimal stability and precision, even with hard-to-cut materials.
- Increased Productivity: Fast tool and pallet replacement, driven by servo motors, minimizes non-cutting time for enhanced efficiency.
Highlights
- Travels - X Axis Travel distance (mm): 1400
- Travels - Y Axis Travel distance (mm): 1050
- Travels - Z Axis Travel distance (mm): 1200
Compatible Control System
Series description
|
The NHM Series offers the largest machining specifications and production capabilities in its class, delivering powerful cutting performance to meet diverse production needs. With an integrated box-type guideway structure, it provides exceptional rigidity and is optimized for machining a wide range of materials, from standard components to hard metals. The series also features fast tool and pallet replacement driven by servo motors, minimizing non-cutting time and enhancing both reliability and productivity. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 1400 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 1050 |
| Travels - Z Axis Travel distance (mm) | 1200 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 24 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 24 |
| Feed rate - Z Axis Rapid Traverse | 24 |
Table
| Max. Workpiece weight (kg) | 2000 |
|---|---|
| Pallet Size (mm) | 800x800 |
Workpiece capacity
| Max. Workpiece Diameter (mm) | 1450 |
|---|---|
| Max. Workpiece Height (mm) | 1550 |
| Max. Workpiece weight (kg) | 2000 |
Tool storage capacity
| Machining center - No. of tool station | 60 |
|---|
Main spindle
| Main Spindle Max. Speed | 6000 |
|---|---|
| Main Spindle Max. Power | 22 |
| Main Spindle Max. Torque | 1362 |
| Tool Taper (ISO) | 50 |
Turret
| Turret - No. of tool station | 60 |
|---|
Dimensions
| Length (mm) | 7376 |
|---|---|
| Height (mm) | 3760 |
| Width (mm) | 4325 |
| Weight (kg) | 27000 |
| Name | Download | File type | |
|---|---|---|---|
|
NHM series.pdf | 6581 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
