DEM 4004
- High Rigidity: Robust structure ensures stability and precision during machining operations.
- Optimized Performance: Designed to deliver essential capabilities for effective 3-axis general machining.
- Versatile Application: Ideal for a wide range of basic cutting processes, offering reliable performance.
Highlights
- Travels - X Axis Travel distance (mm): 550
- Travels - Y Axis Travel distance (mm): 400
- Travels - Z Axis Travel distance (mm): 450
Compatible Control System
Series description
|

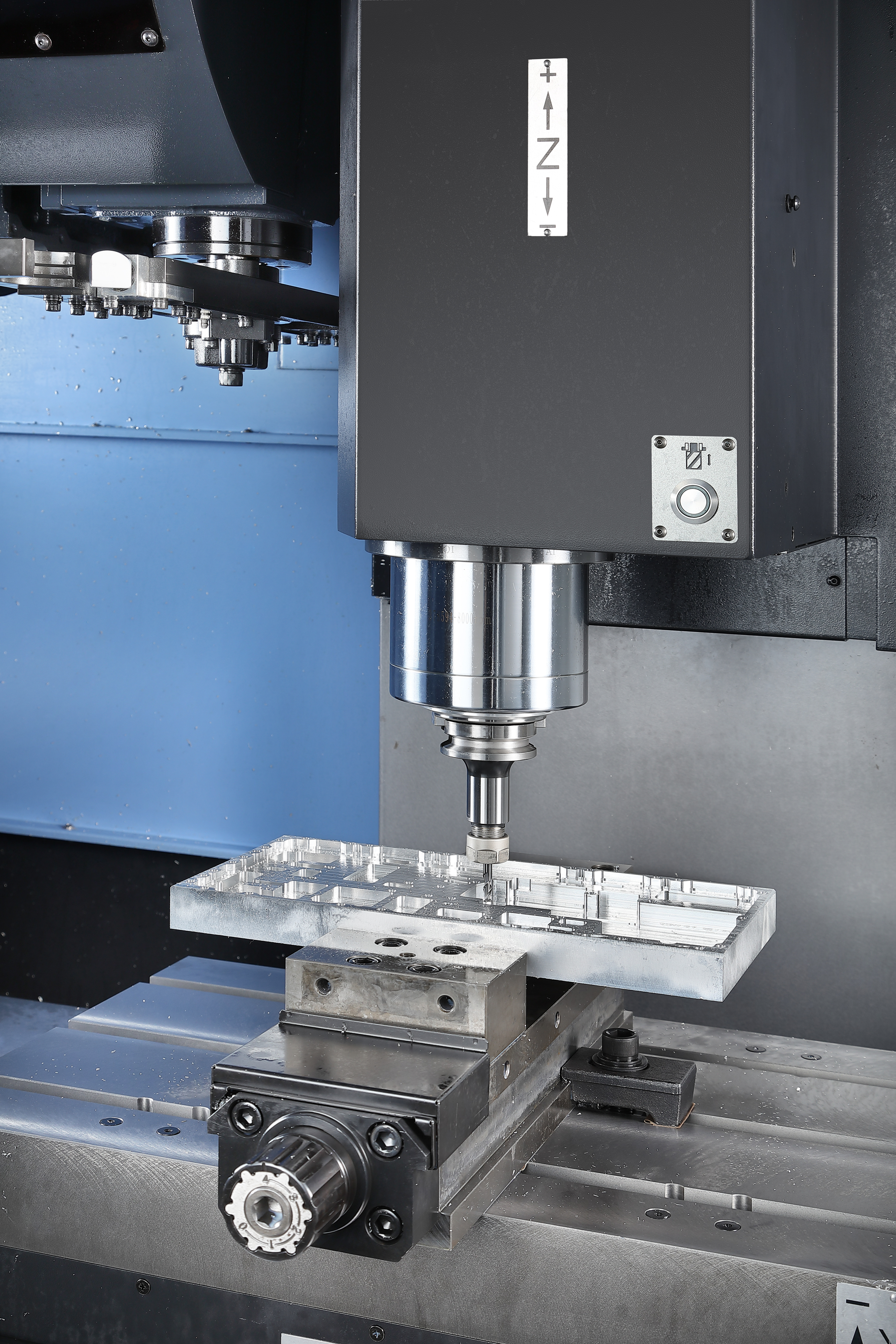

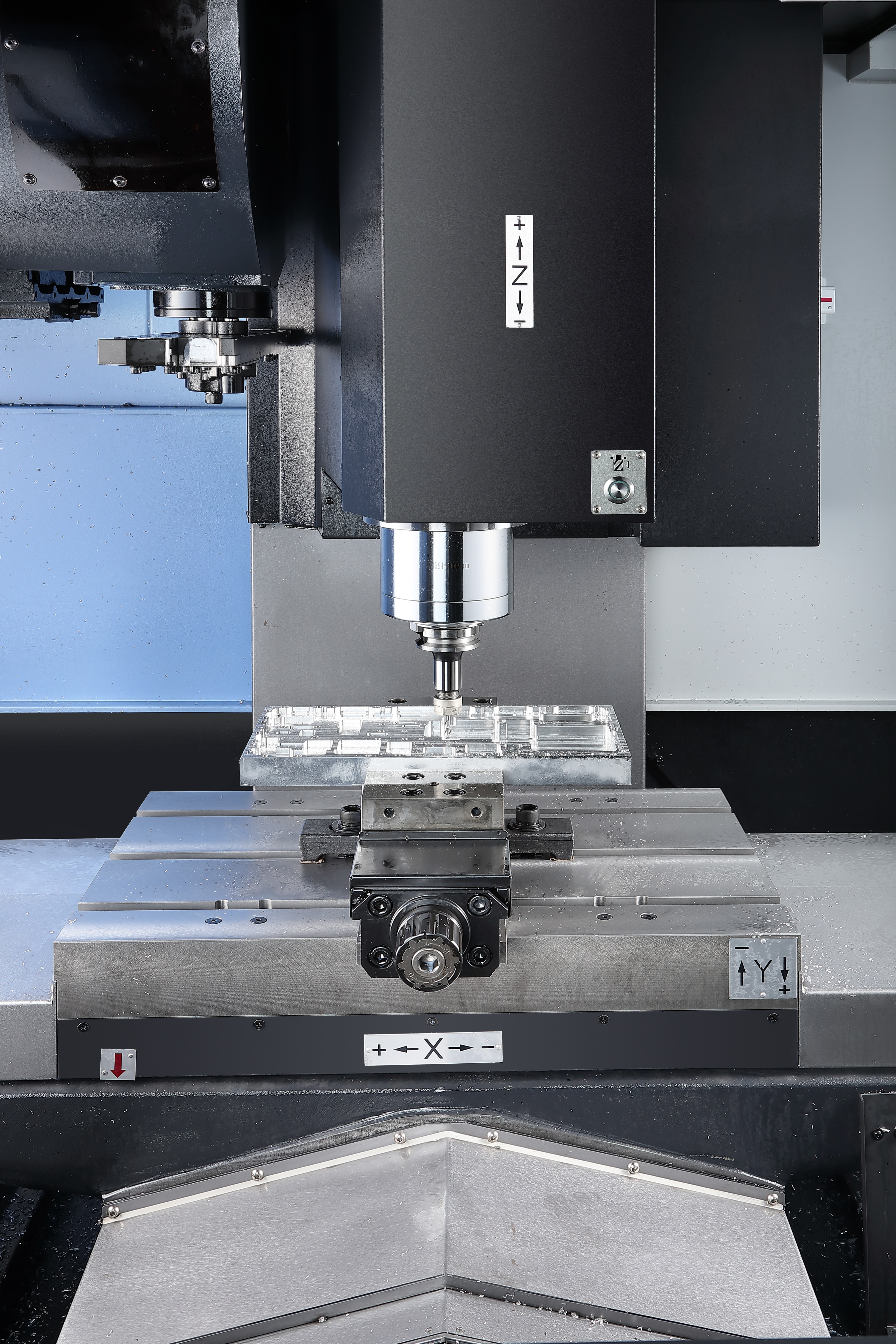

The DEM Series is a vertical machining center designed for 3-axis general machining with a high-rigidity structure. This model is optimized for delivering the essential performance required for basic cutting processes, making it highly suitable for a wide range of machining tasks. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 550 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 400 |
| Travels - Z Axis Travel distance (mm) | 450 |
| Travels - Z Axis Rapid Traverse (m/min) | 24 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 24 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 24 |
Table
| Table Length (mm) | 650 |
|---|---|
| Table Width (mm) | 400 |
| Max. Workpiece weight (kg) | 400 |
| Pallet Size (mm) | 650x400 |
| Max. Table weight (kg) | 400 |
Workpiece capacity
| Max. Workpiece Height (mm) | 500 |
|---|---|
| Max. Workpiece weight (kg) | 400 |
Tool storage capacity

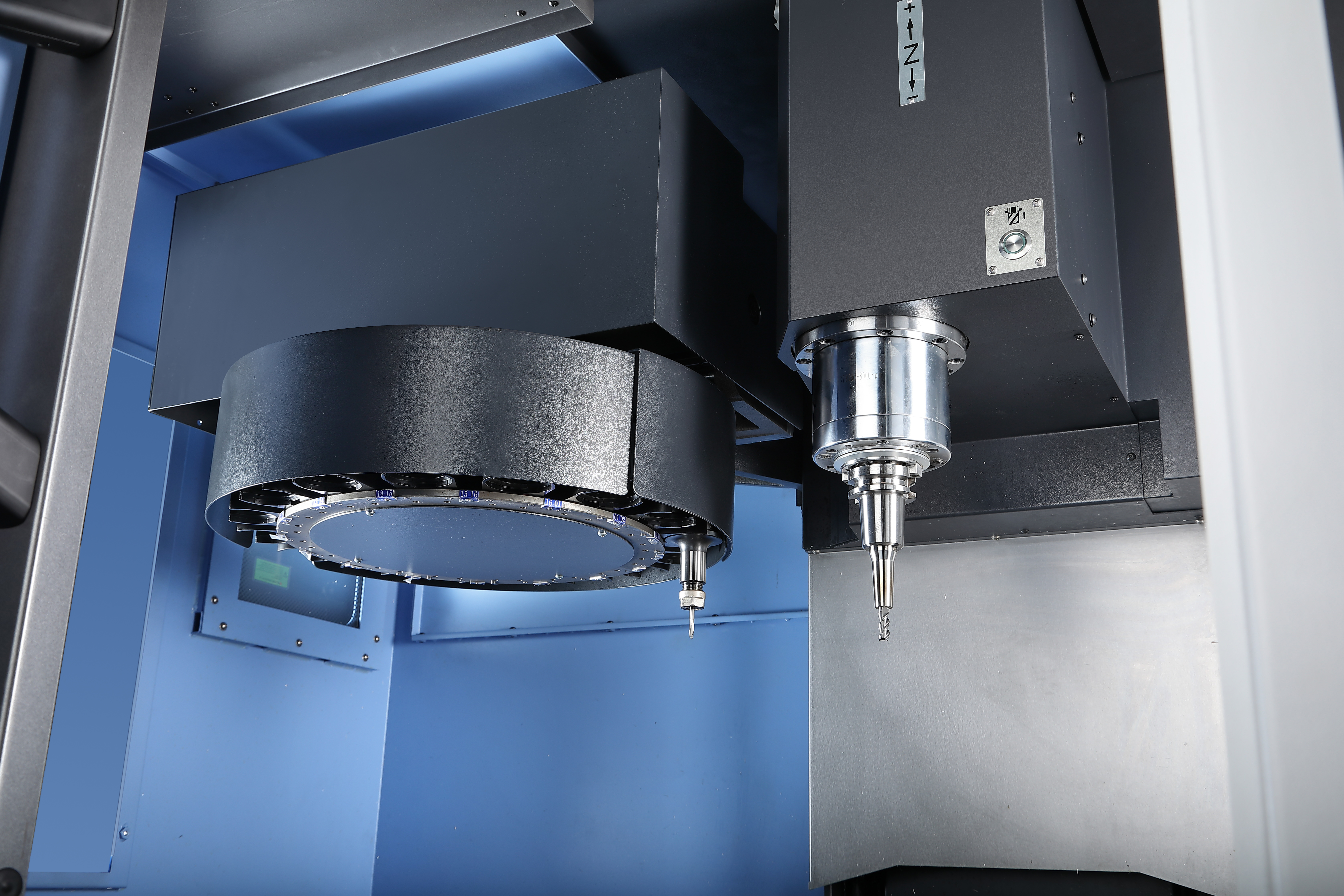

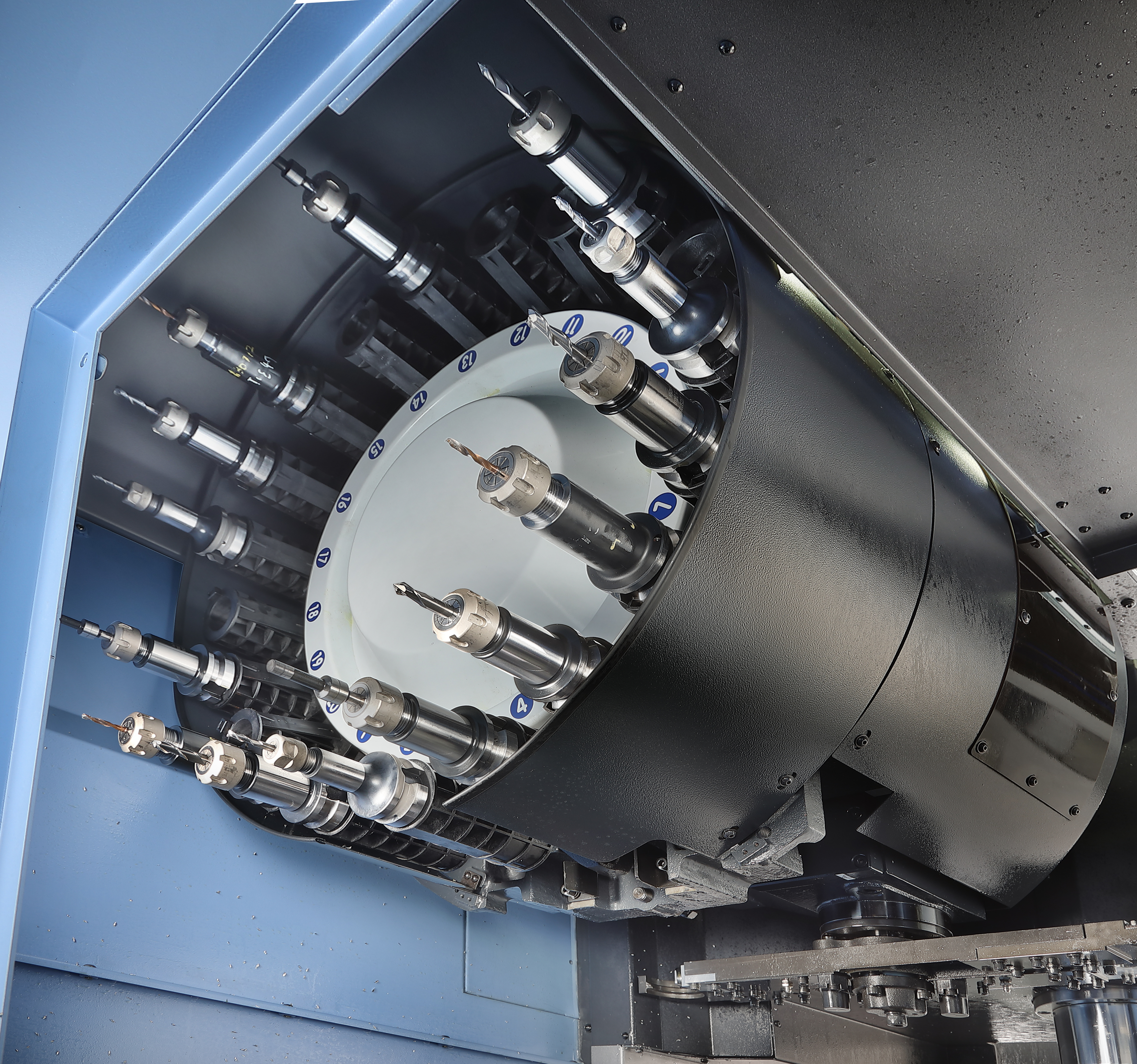

| Machining center - No. of tool station | 20 |
|---|
Main spindle
| Main Spindle Max. Speed | 8000 |
|---|---|
| Main Spindle Max. Power | 5.5 |
| Main Spindle Max. Torque | 47.7 |
| Tool Taper (ISO) | BT40 |
Turret
| Turret - No. of tool station | 20 |
|---|
Dimensions
| Length (mm) | 1875 |
|---|---|
| Height (mm) | 2317 |
| Width (mm) | 2200 |
| Weight (kg) | 3100 |
| Name | Download | File type | |
|---|---|---|---|
|
DEM 4000.pdf | 3850 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
