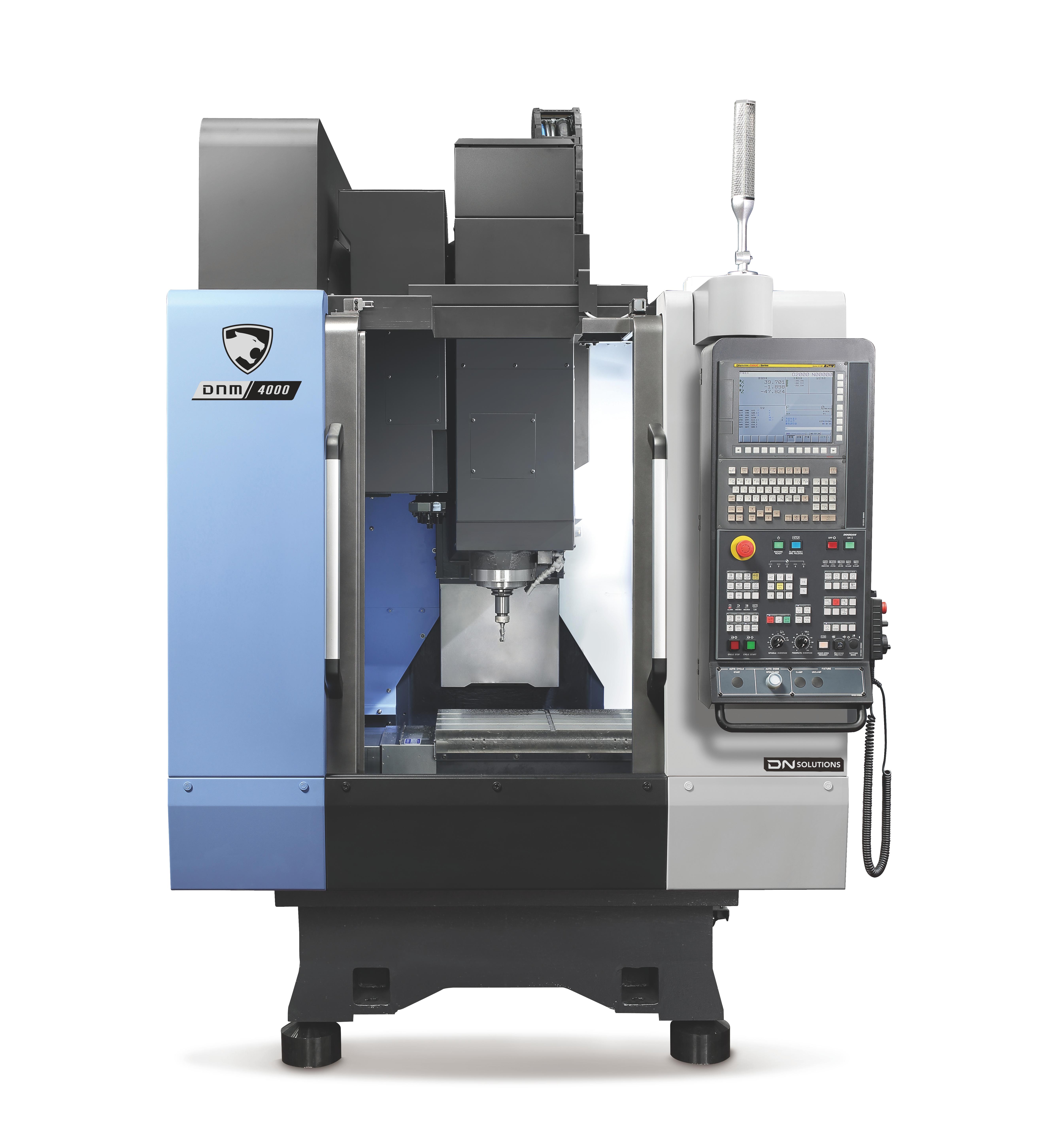

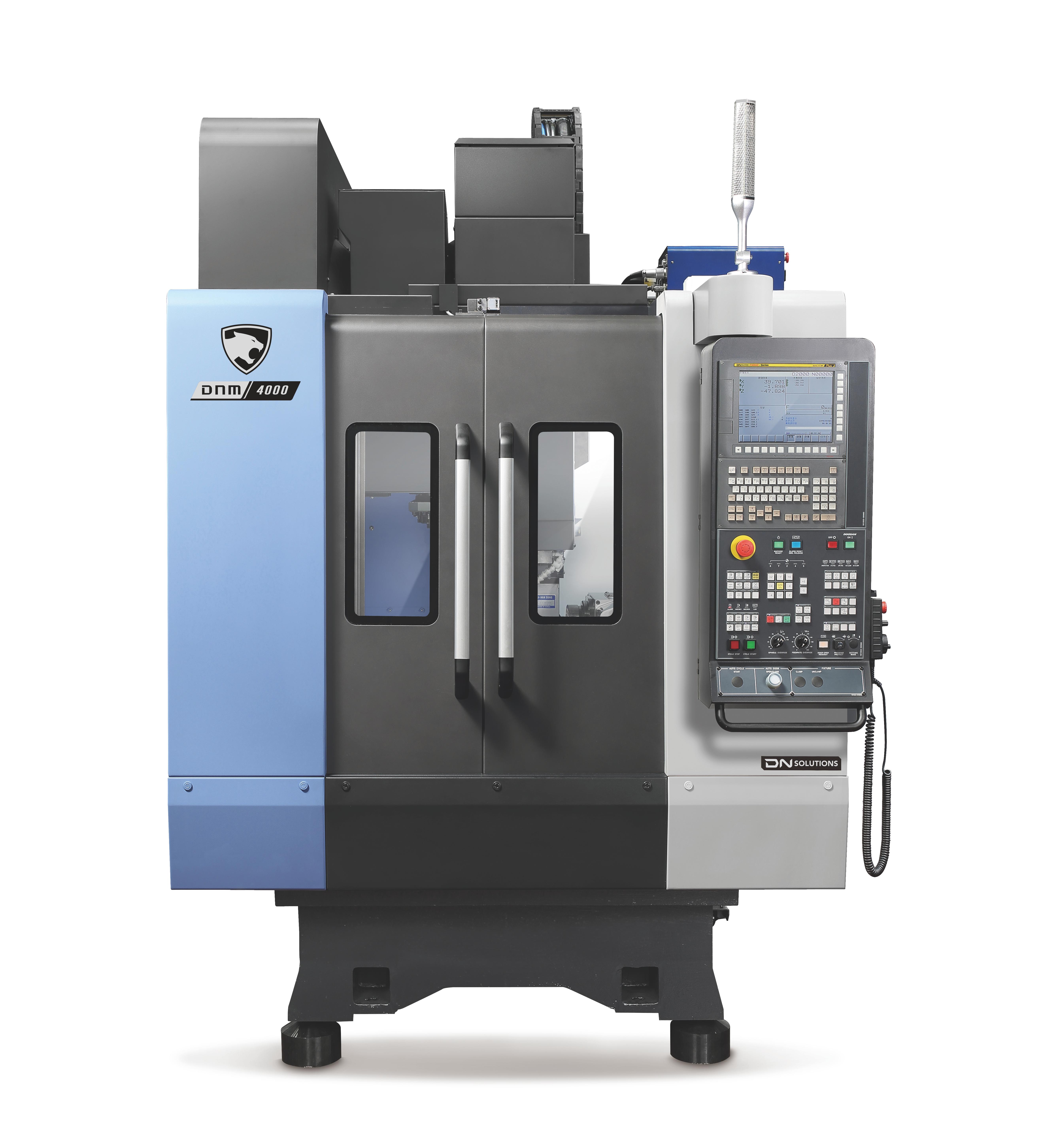

    DNM 4000

    HIGH PRODUCTIVITY COMPACT VERTICAL MACHINING CENTER

    • Versatile Performance: High speed, rigidity, and adaptability make the DNM Series ideal for a wide range of machining applications.
    • Eco-Friendly Operation: Grease lubrication on roller guideways promotes sustainability while maintaining top performance.
    • Compact Efficiency: Models like the DNM 4000 maximize productivity in limited spaces, with features designed for operator ease and convenience.

    Highlights

    • Travels - X Axis Travel distance (mm): 520
    • Travels - Y Axis Travel distance (mm): 400
    • Travels - Z Axis Travel distance (mm): 480

    Compatible Control System

      Fanuc

    Series description

    The DNM Series continues its legacy of success with enhanced reliability and performance in its latest models. Focused on high speed, high rigidity, and versatility, the DNM 4500/5000/6500 models cater to a wide range of machining applications. The series now features eco-friendly grease lubrication for roller guideways, ensuring sustainable operation. The compact DNM 4000, with a 400mm Y-axis stroke and directly-coupled 40 taper spindle, maximizes productivity in a minimized footprint, perfect for space-constrained environments. The DNM 50 II series further enhances performance with directly coupled spindles, rigid columns, and user-friendly Ez work functions for improved efficiency and ease of use.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 520
    Travels - Y Axis Travel distance (mm) 400
    Travels - Z Axis Travel distance (mm) 480
    Travels - Z Axis Rapid Traverse (m/min) 48

    Feed rates

    Feed rate - X Axis Rapid Traverse 48
    Feed rate - Y Axis Rapid Traverse 48
    Feed rate - Z Axis Rapid Traverse 48

    Table

    Table Length (mm) 650
    Table Width (mm) 400
    Max. Workpiece weight (kg) 400
    Pallet Size (mm) 650x400
    Max. Table weight (kg) 400

    Workpiece capacity

    Max. Workpiece Height (mm) 300
    Max. Workpiece weight (kg) 400

    Tool storage capacity

    Machining center - No. of tool station 20

    Main spindle

    Main Spindle Max. Speed 12000
    Main Spindle Max. Power 18.5
    Main Spindle Max. Torque 117
    Tool Taper (ISO) BT40

    Turret

    Turret - No. of tool station 20

    Dimensions

    Length (mm) 2853
    Height (mm) 2753
    Width (mm) 1650
    Weight (kg) 3300
