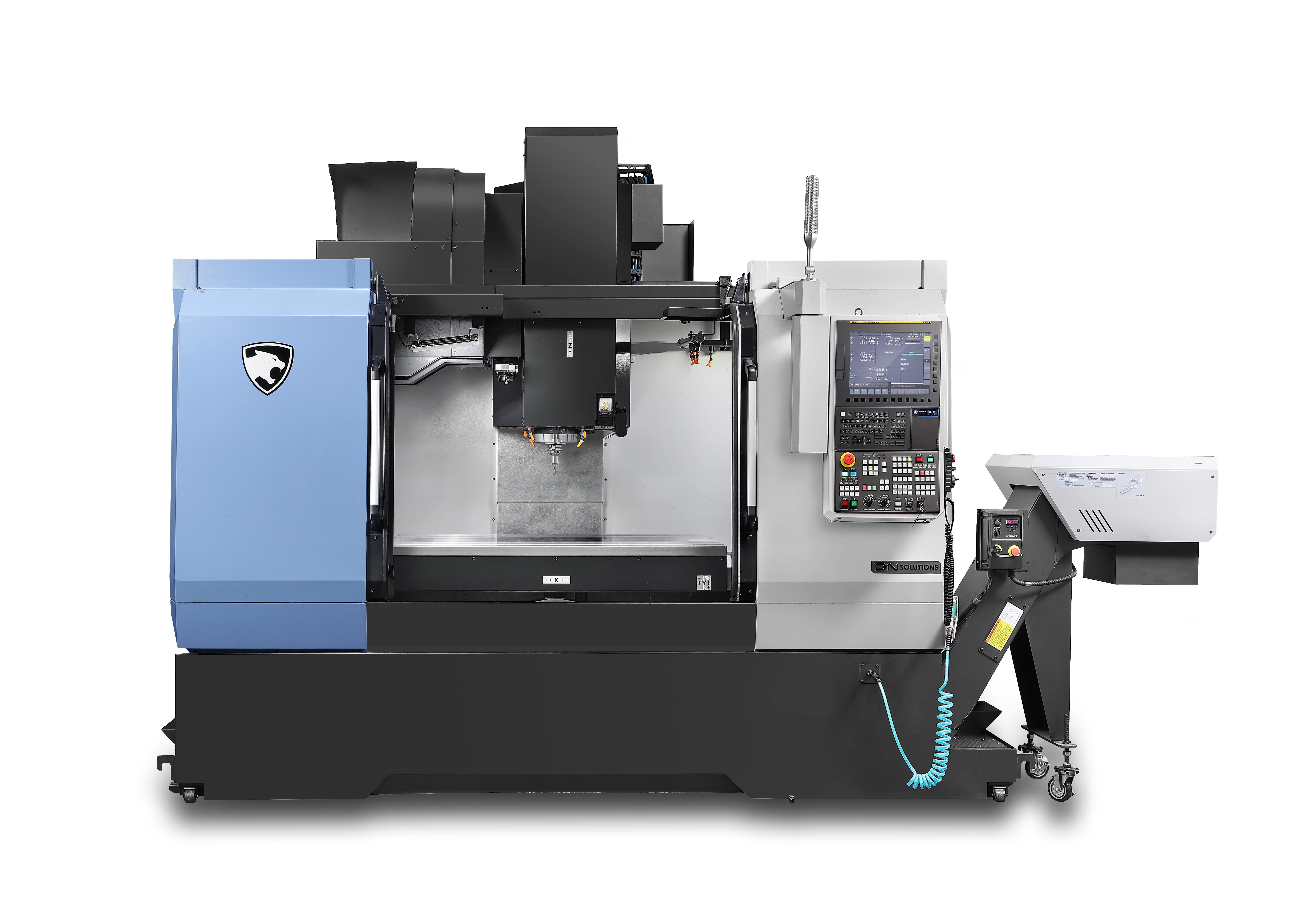

    DNM 6700

    GLOBAL STANDARD VERTICAL MACHINING CENTER

    • Enhanced Reliability: Builds on the proven success of previous generations with improved durability and performance.
    • Eco-Friendly Operation: Standard grease lubrication on spindle and axes promotes sustainable and cost-effective machining.
    • User-Friendly Design: Engineered for outstanding productivity and ease of use, ensuring efficient and convenient operation.

    Highlights

    • Travels - X Axis Travel distance (mm): 1300
    • Travels - Y Axis Travel distance (mm): 670
    • Travels - Z Axis Travel distance (mm): 625

    Compatible Control System

      Fanuc

    Series description

    The 4th Generation DNM Series builds on the global success of its predecessors, offering enhanced reliability, durability, and productivity. With eco-friendly grease lubrication applied to the spindle and each axis as standard, this series is designed for sustainable operation. The 4th Gen DNM machines are engineered for best-in-class rigidity and user convenience, ensuring high performance across a wide range of applications while maintaining the trusted reputation of the DNM name.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 1300
    Travels - Y Axis Travel distance (mm) 670
    Travels - Z Axis Travel distance (mm) 625

    Feed rates

    Feed rate - X Axis Rapid Traverse 36
    Feed rate - Y Axis Rapid Traverse 36
    Feed rate - Z Axis Rapid Traverse 30

    Table

    Table Length (mm) 1500
    Table Width (mm) 670
    Max. Workpiece weight (kg) 1300

    Workpiece capacity

    Max. Workpiece Height (mm) 700
    Max. Workpiece weight (kg) 1300

    Tool storage capacity

    Machining center - No. of tool station 30

    Capacity

    Table to spindle nose 150-775

    Main spindle

    Tool Taper (ISO) 40

    Dimensions

    Length (mm) 2670
    Height (mm) 3095
    Width (mm) 3560
    Weight (kg) 8500
      Name Download File type
    DNM 6700
    		DNM Series (4th Gen.).pdf 4791 KB
    		.pdf

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
