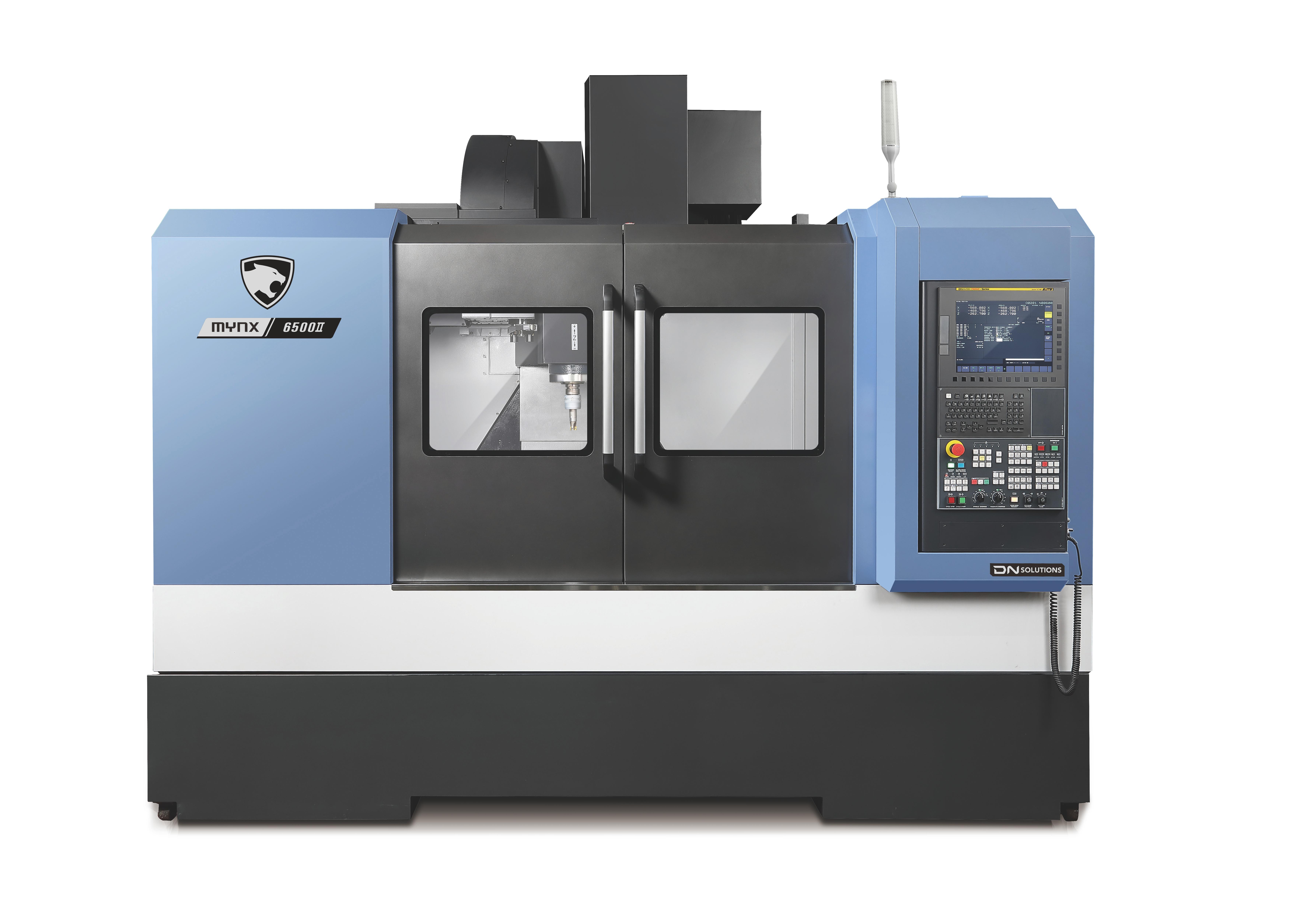

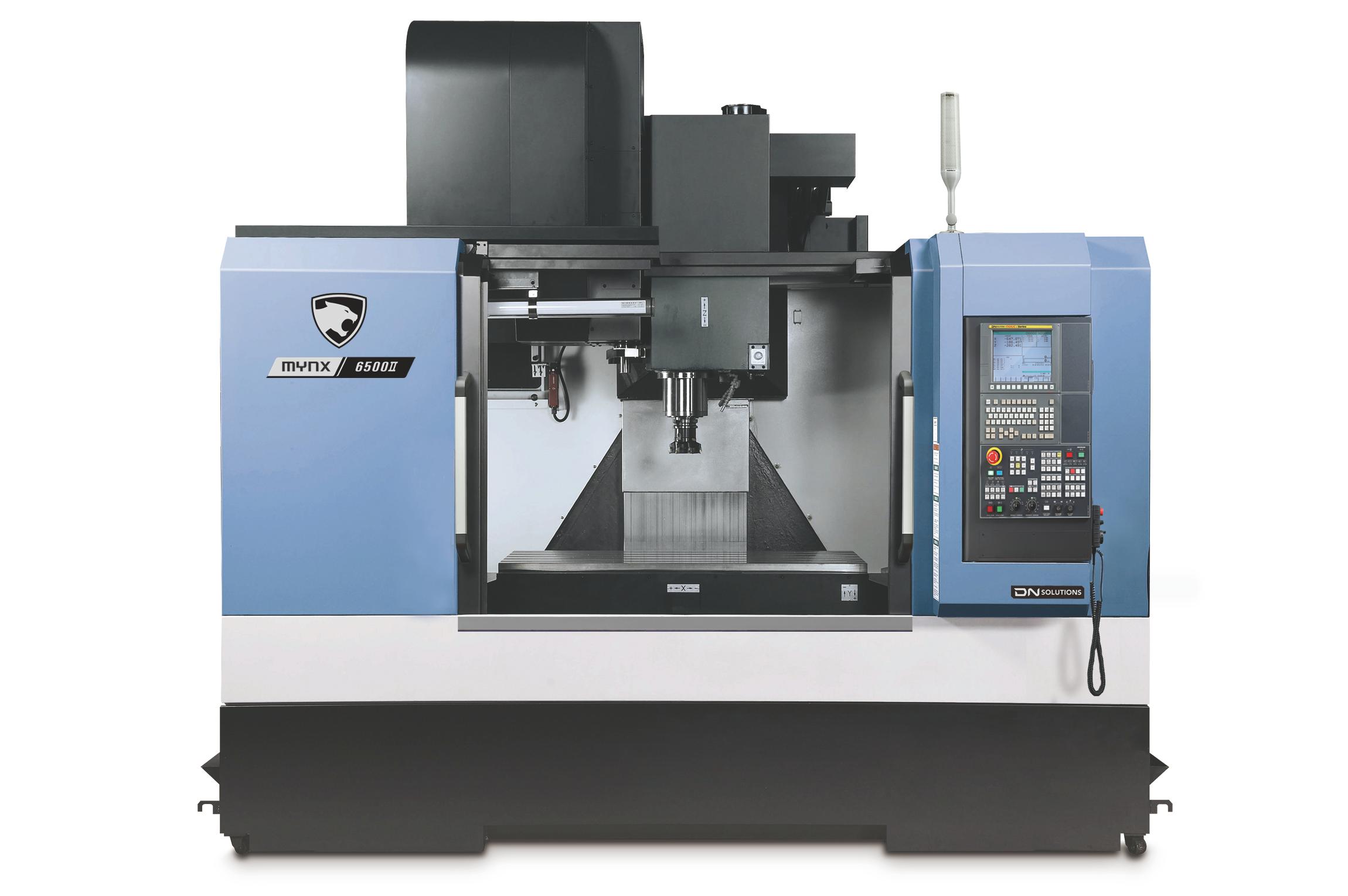

    MYNX 6500/50 II

    HEAVY DUTY VERTICAL MACHINING CENTER

    • Versatile Workpiece Handling: Offers a wide range of table sizes and spindle options to accommodate various machining needs.
    • High Durability and Rigidity: Engineered for robust performance, ensuring reliable operation in demanding applications.
    • User-Friendly Features: Includes Ez work functions that enhance ease of use and convenience for operators.

    Highlights

    • Travels - X Axis Travel distance (mm): 1270
    • Travels - Y Axis Travel distance (mm): 670
    • Travels - Z Axis Travel distance (mm): 625

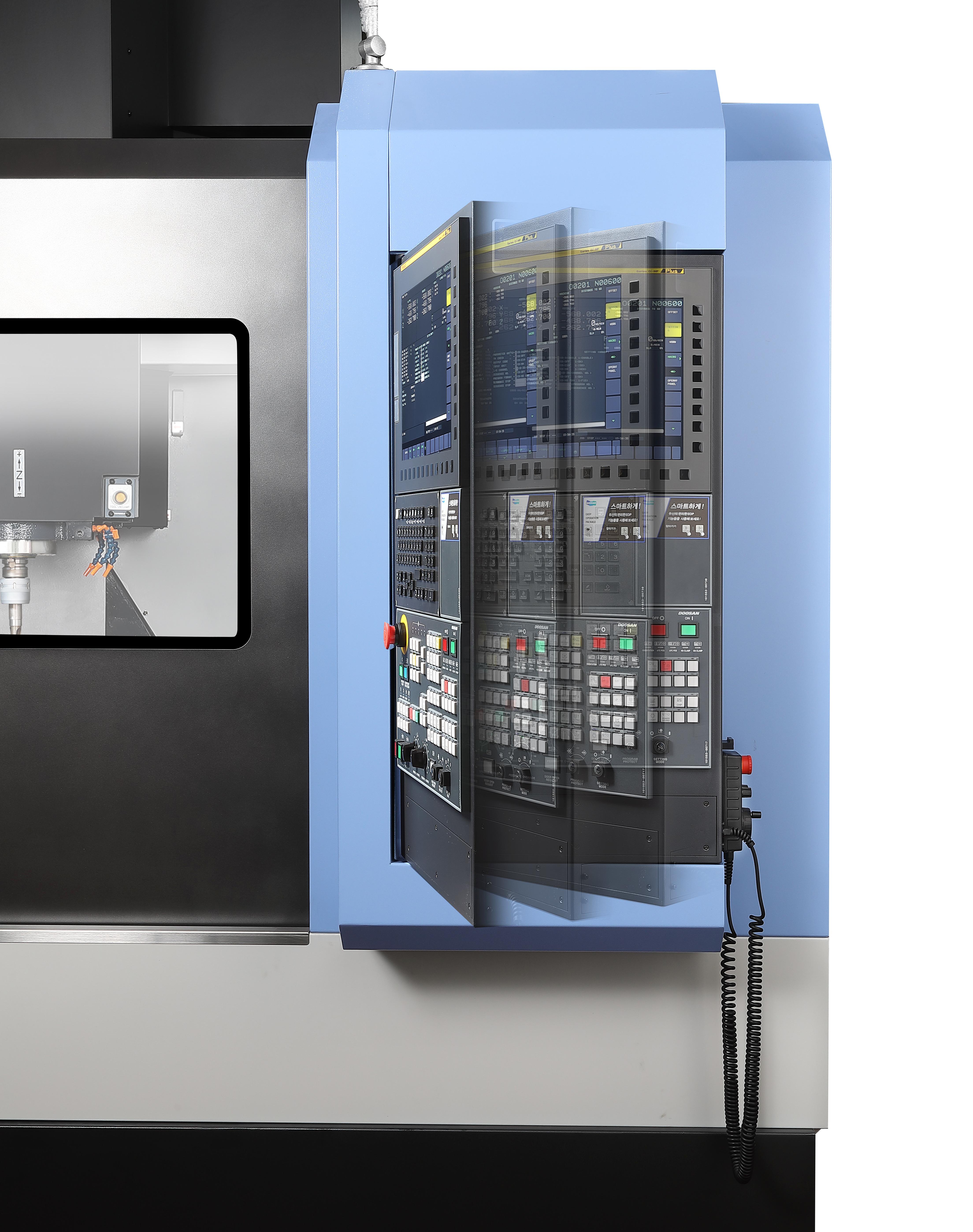

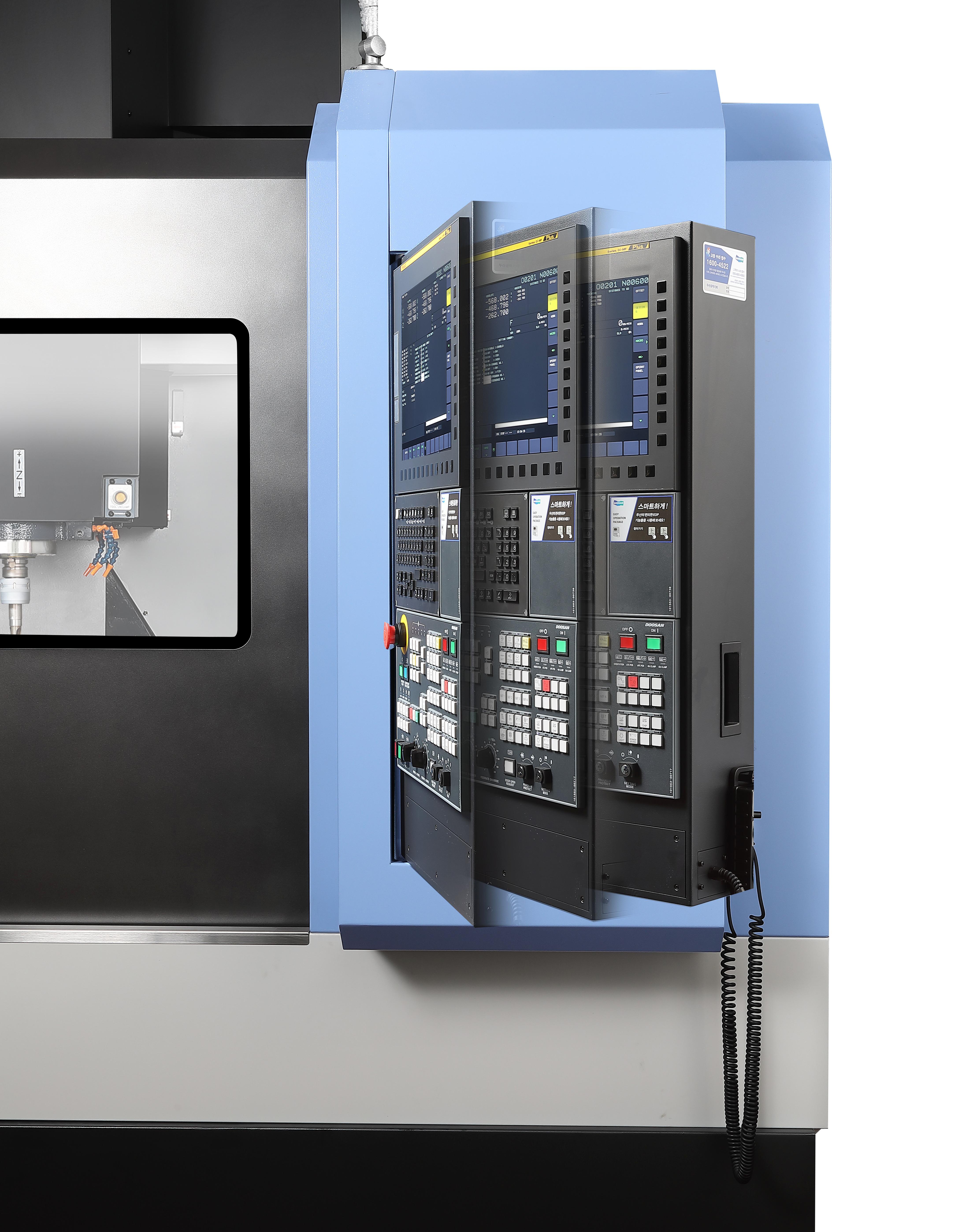

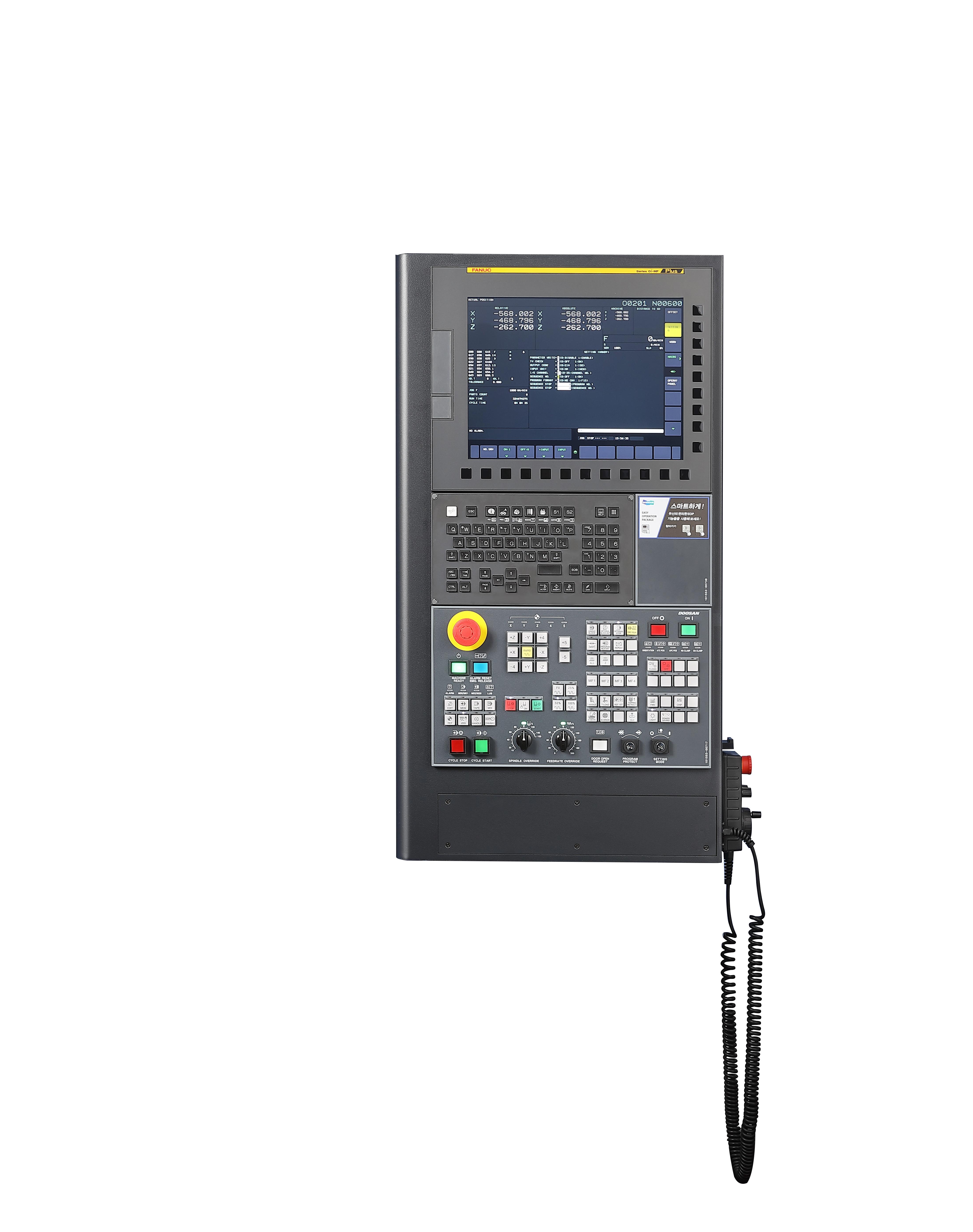

    Compatible Control System

      Fanuc

    Series description

    The Mynx II Series offers a versatile lineup of vertical machining centers with table sizes ranging from 550 mm to 950 mm, allowing users to handle a broad range of workpieces. Designed for high durability and performance, the Mynx Series features robust rigidity and various spindle options to meet diverse machining needs. Enhanced with Ez work functions, the series improves user-friendliness and overall convenience, making it a reliable choice for demanding applications.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 1270
    Travels - Y Axis Travel distance (mm) 670
    Travels - Z Axis Travel distance (mm) 625
    Travels - Z Axis Rapid Traverse (m/min) 24

    Feed rates

    Feed rate - X Axis Rapid Traverse 30
    Feed rate - Y Axis Rapid Traverse 30

    Table

    Table Length (mm) 1400
    Table Width (mm) 670
    Max. Workpiece weight (kg) 1300
    Pallet Size (mm) 1400x670
    Max. Table weight (kg) 1300

    Workpiece capacity

    Max. Workpiece Height (mm) 625
    Max. Workpiece weight (kg) 1300

    Tool storage capacity

    Machining center - No. of tool station 24

    Main spindle

    Main Spindle Max. Speed 6000
    Main Spindle Max. Power 20
    Main Spindle Max. Torque 286.5
    Tool Taper (ISO) BT50

    Turret

    Turret - No. of tool station 24

    Dimensions

    Length (mm) 2629
    Height (mm) 3016
    Width (mm) 3350
    Weight (kg) 9500
      Name Download File type
    MYNX 6500/50 II
    		Mynx II series.pdf 2803 KB
    		.pdf

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
