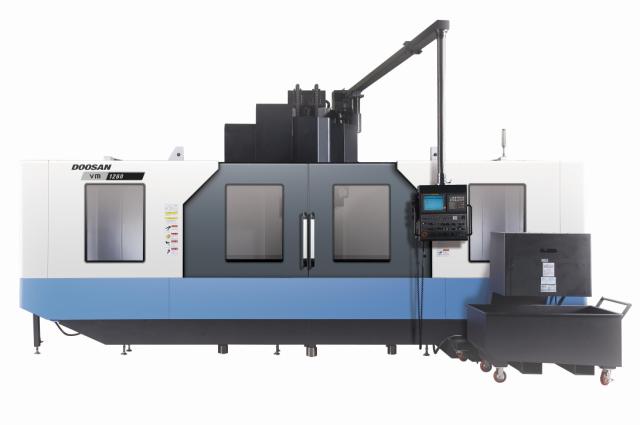

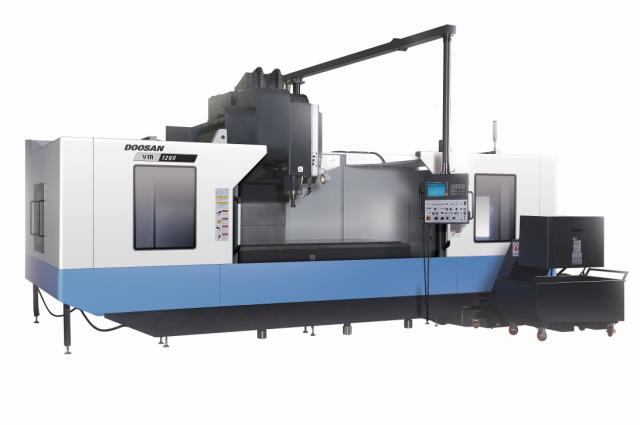

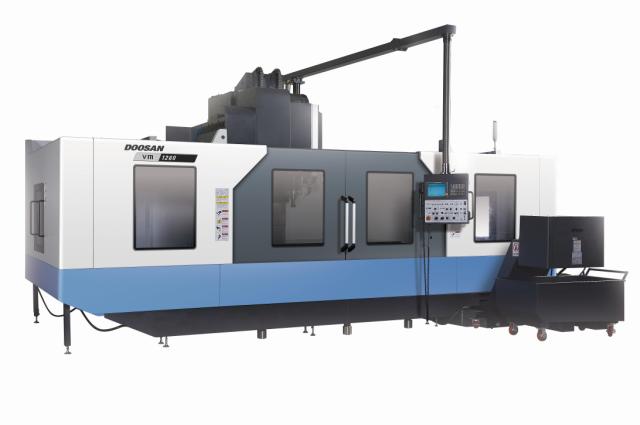

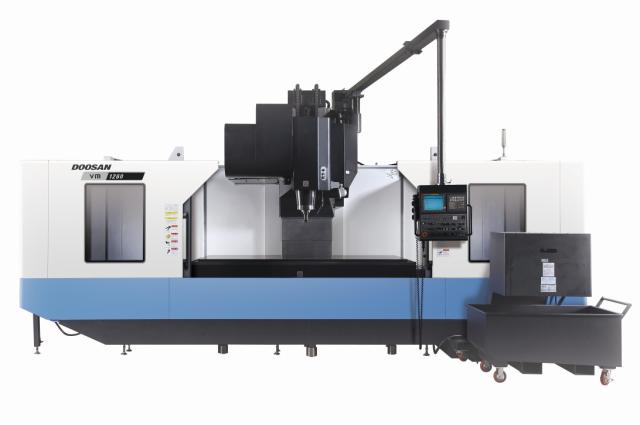

VM 1260
- Versatile Performance: Designed for both roughing and finishing, with a range of sizes to suit various machining needs.
- Enhanced Productivity: Low-vibration spindles and user-friendly design improve efficiency and operational convenience.
- High-Quality Output: Standard features like the BBT40 spindle, effective cooling, and chip removal ensure superior die and mold production.
Highlights
- Travels - X Axis Travel distance (mm): 2500
- Travels - Y Axis Travel distance (mm): 1260
- Travels - Z Axis Travel distance (mm): 900
Compatible Control System
Series description
|
The VM 750/960/1260 and VM 5400/6500 Series are advanced vertical machining centers featuring low-vibration built-in spindles and the highest stroke in their class. Designed for both roughing and finishing operations, these machines offer a wide range of sizes from Unit 7 to Unit 12. The new design enhances operator convenience and work efficiency, boosting productivity and creating added value. Key features, such as the face/taper contact spindle nose (BBT40), an effective spindle cooling system, and an air blower for chip removal during dry cutting, are standard. These features optimize efficiency and competitiveness, making the VM Series ideal for producing high-quality dies and molds. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 2500 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 1260 |
| Travels - Z Axis Travel distance (mm) | 900 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 12 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 12 |
| Feed rate - Z Axis Rapid Traverse | 12 |
Table
| Table Length (mm) | 2800 |
|---|---|
| Table Width (mm) | 1260 |
| Max. Workpiece weight (kg) | 8000 |
Workpiece capacity
| Max. Workpiece Height (mm) | 1040 |
|---|---|
| Max. Workpiece weight (kg) | 8000 |
Tool storage capacity
| Machining center - No. of tool station | 40 |
|---|
Main spindle
| Main Spindle Max. Speed | 12000 |
|---|---|
| Main Spindle Max. Power | 25 |
| Main Spindle Max. Torque | 419.4 |
| Tool Taper (ISO) | 50 |
Turret
| Turret - No. of tool station | 40 |
|---|
Dimensions
| Length (mm) | 5645 |
|---|---|
| Height (mm) | 3930 |
| Width (mm) | 6938 |
| Weight (kg) | 31000 |
| Name | Download | File type | |
|---|---|---|---|
|
VM series.pdf | 4323 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
