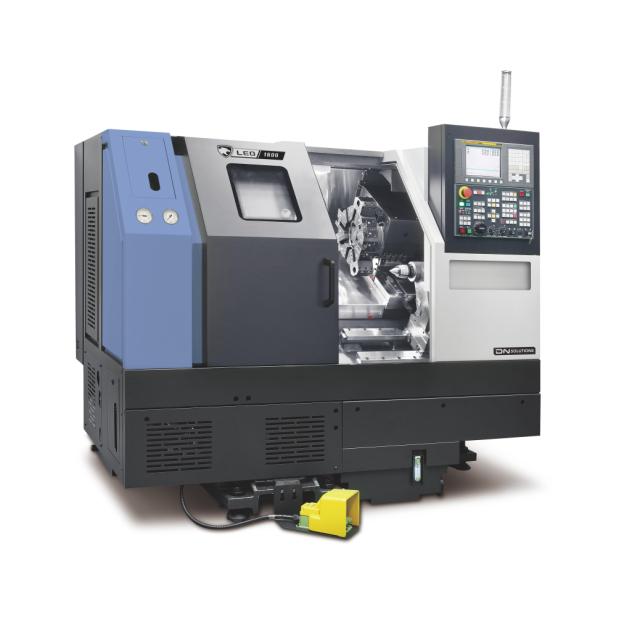

LEO 1604
- High Productivity: The LEO 1600 series supports the largest processing area in its class, maximizing machining efficiency.
- Robust Performance: Its high-strength octagonal turret ensures superior performance for strong cutting tasks.
- User-Friendly Design: The machine's design enhances convenience, making it easy and efficient to operate.
Highlights
- Travels - X Axis Travel distance (mm): 175
- Travels - Z Axis Travel distance (mm): 330
- Chuck size (mm): 152.4
- Max. Turning Diameter (mm): 320
- Max. Turning Length (mm): 303
Compatible Control System
Series description
|
The LEO 1600 series delivers high productivity by offering the largest processing area in its class within a compact installation space. Its high-strength octagonal turret ensures excellent performance for robust cutting and features a user-friendly design for enhanced convenience. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 175 |
|---|---|
| Travels - Z Axis Travel distance (mm) | 330 |
| Travels - X Axis Rapid Traverse (m/min) | 30 |
| Travels - Z Axis Rapid Traverse (m/min) | 30 |
Tool storage capacity
| Machining center - No. of tool station | 8 |
|---|
Capacity
| Chuck size (mm) | 152.4 |
|---|---|
| Max. Turning Diameter (mm) | 320 |
| Max. Turning Length (mm) | 303 |
| Bar Capacity (mm) | 45 |
Main spindle
| Main Spindle Max. Speed | 4000 |
|---|---|
| Main Spindle Max. Power | 7.5 |
Turret
| Turret - No. of tool station | 8 |
|---|
Dimensions
| Length (mm) | 1850 |
|---|---|
| Height (mm) | 1635 |
| Width (mm) | 1690 |
| Weight (kg) | 2600 |
| Name | Download | File type | |
|---|---|---|---|
|
LEO_1600.pdf | 2739 KB | |
|
TOOLING SYSTEM-LEO-1600.pdf | 160 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
