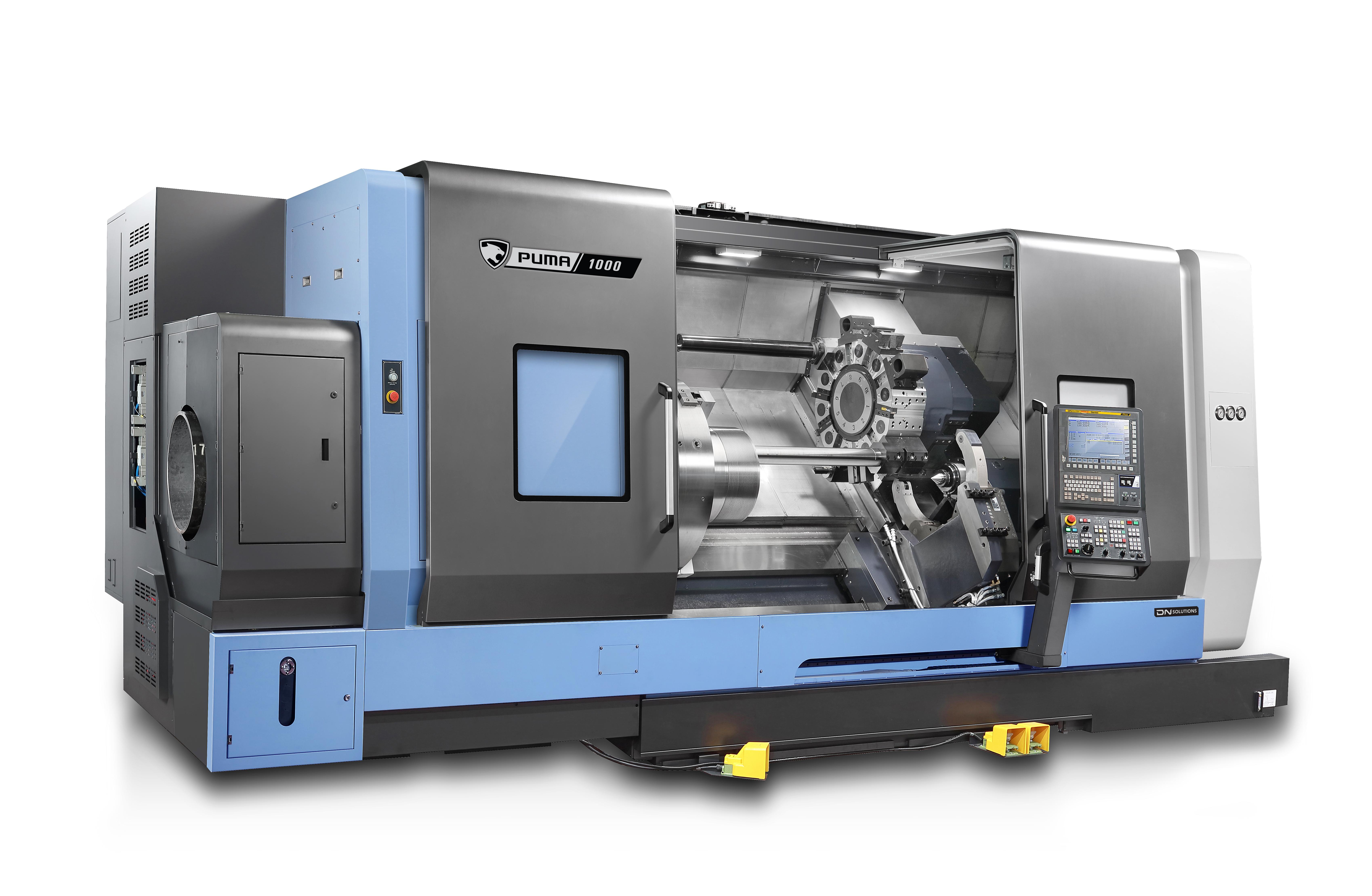

    PUMA 1000MA

    LARGE-SIZED BIG BORE HEAVY DUTY TURNING CENTER WITH UP TO 560MM SPINDLE BORE

    • Powerful Machining Capability: Equipped with a two-step gearbox and high-torque motors for robust performance in heavy-duty applications.
    • Enhanced Stability: Rigid box guideway structure and servo-driven turrets provide exceptional stability and precision during cutting and milling operations.
    • Industry Versatility: Optimized for machining pipe and flange parts across various industries, including oil & gas, power generation, aerospace, construction, and shipbuilding.

    Highlights

    • Travels - X Axis Travel distance (mm): 540
    • Travels - Z Axis Travel distance (mm): 2130
    • Chuck size (mm): 812,8
    • Max. Turning Diameter (mm): 1000
    • Max. Turning Length (mm): 2040

    Compatible Control System

      Fanuc

    Series description

    The PUMA 1000 series comprises large horizontal turning centers optimized for machining pipe and flange parts commonly used in the oil & gas, power generation, aerospace, construction, and shipbuilding industries. These machines offer powerful machining capabilities with a two-step gearbox, high-torque motors, and a rigid box guideway structure. Highly rigid servo-driven turrets ensure fast, stable tool rotation and the impressive stability needed for heavy-duty cutting and high-accuracy milling operations.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 540
    Travels - Z Axis Travel distance (mm) 2130
    Travels - X Axis Rapid Traverse (m/min) 12
    Travels - Z Axis Rapid Traverse (m/min) 16

    Tool storage capacity

    Machining center - No. of tool station 12

    Capacity

    Chuck size (mm) 812,8
    Max. Turning Diameter (mm) 1000
    Max. Turning Length (mm) 2040

    Main spindle

    Main Spindle Max. Speed 500
    Main Spindle Max. Power 75
    Main Spindle Max. Torque 11011

    Turret

    Rotary Tool (r/min) 3000
    Turret - No. of tool station 12

    Dimensions

    Length (mm) 6595
    Height (mm) 2835
    Width (mm) 3210
    Weight (kg) 21000

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
