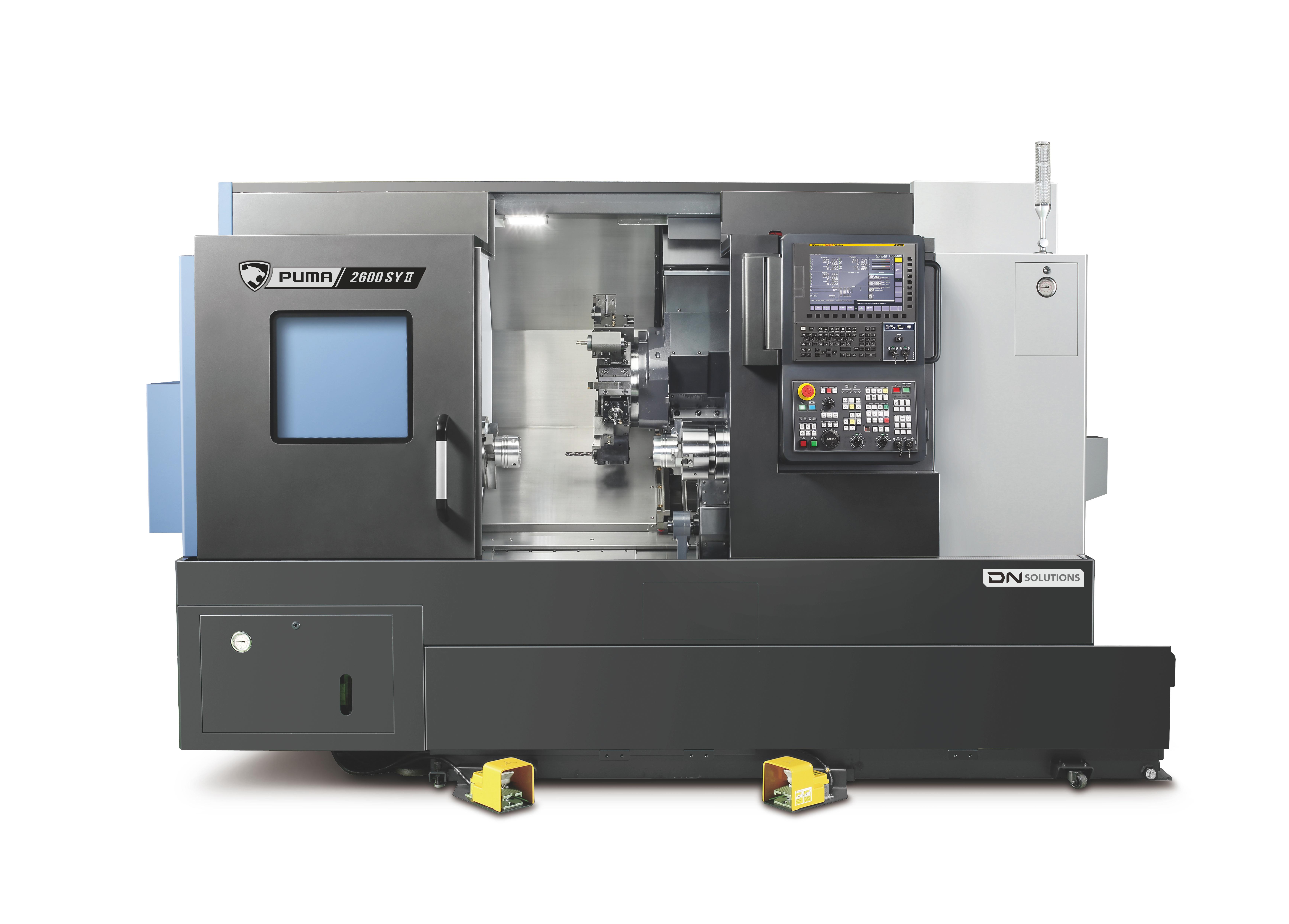

    PUMA 2600B (Belt)

    HIGH PERFORMANCE HORIZONTAL TURNING CENTER

    • Versatile Configurations: Available in 2-axis, Y-axis, and sub-spindle models, catering to a wide range of machining requirements.
    • Comprehensive Size Range: Covers 12" to 15" sizes, offering flexibility and adaptability for various applications.
    • High-Level Performance: Designed to deliver superior precision and efficiency across all model variations.

    Highlights

    • Travels - X Axis Travel distance (mm): 260
    • Travels - Z Axis Travel distance (mm): 830
    • Chuck size (mm): 315
    • Max. Turning Diameter (mm): 481
    • Max. Turning Length (mm): 755

    Compatible Control System

      Siemens

    Series description

    The PUMA 2100/2600/3100 series offers a comprehensive range of high-level turning centers with 12" to 15" sizes. These models vary from 2-axis to Y-axis and sub-spindle configurations, providing versatile solutions for diverse machining needs.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 260
    Travels - Z Axis Travel distance (mm) 830
    Travels - X Axis Rapid Traverse (m/min) 30
    Travels - Z Axis Rapid Traverse (m/min) 30

    Tool storage capacity

    Machining center - No. of tool station 12

    Capacity

    Chuck size (mm) 315
    Max. Turning Diameter (mm) 481
    Max. Turning Length (mm) 755
    Bar Capacity (mm) 102

    Main spindle

    Main Spindle Max. Speed 2800
    Main Spindle Max. Power 22
    Main Spindle Max. Torque 1123

    Turret

    Turret - No. of tool station 12

    Dimensions

    Length (mm) 3873
    Height (mm) 1900
    Width (mm) 1863
    Weight (kg) 5500

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
