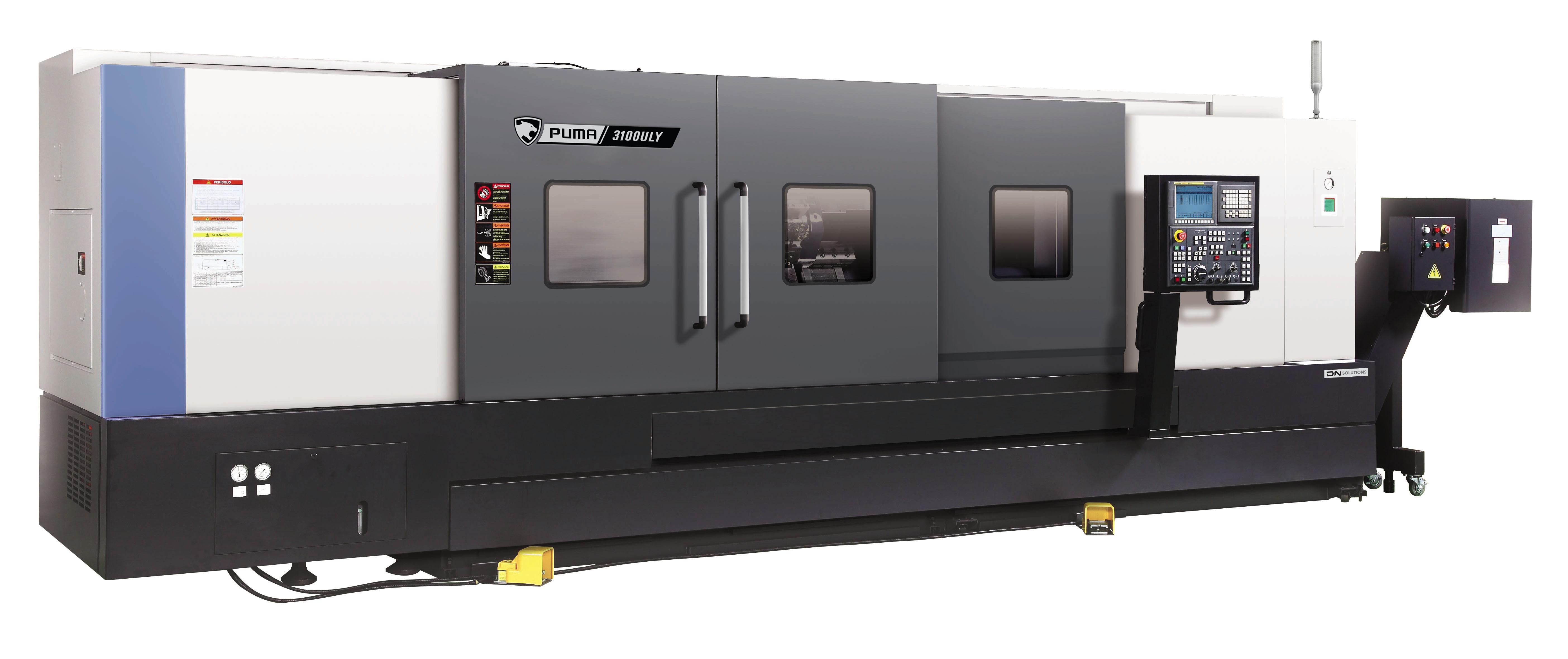

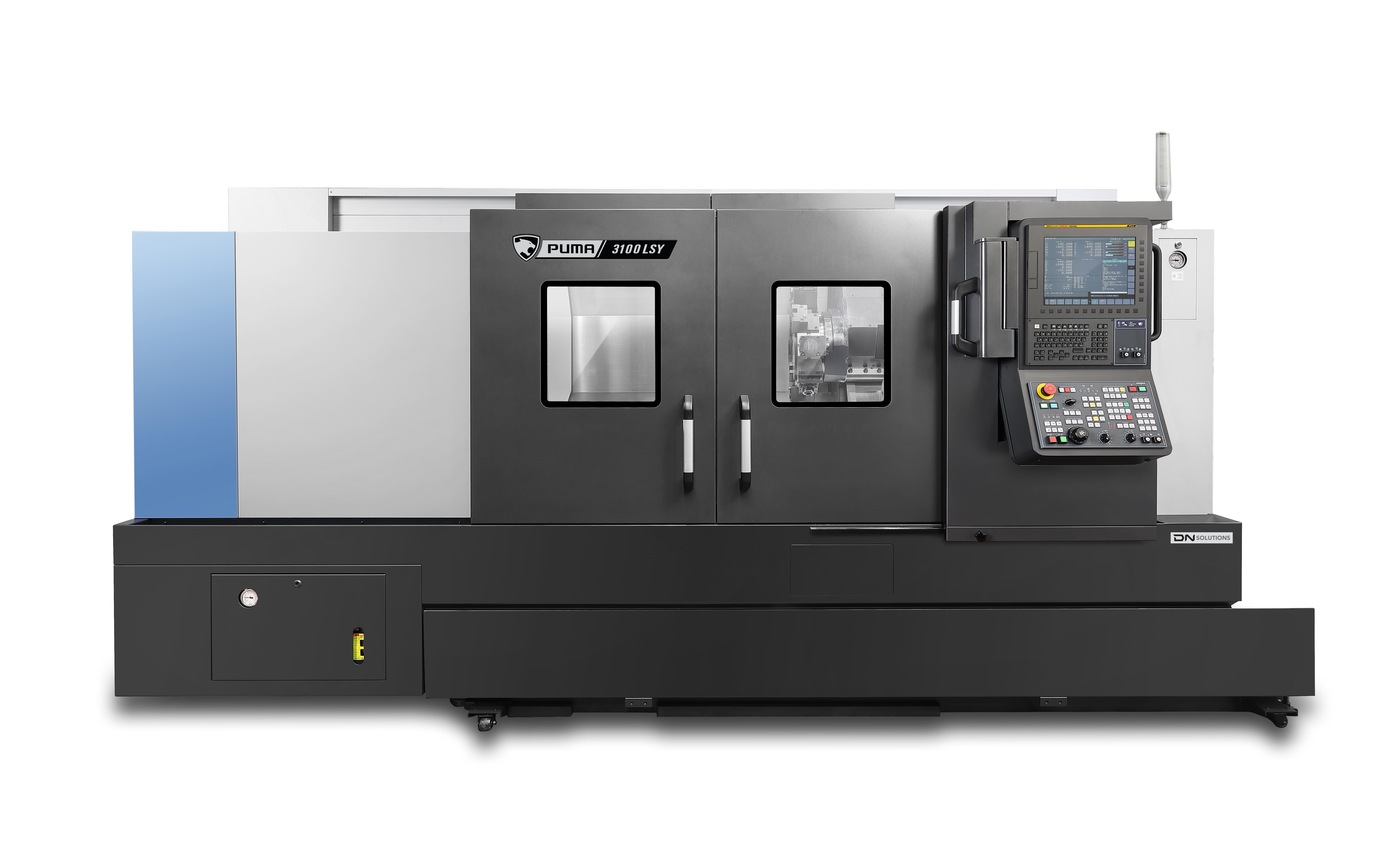

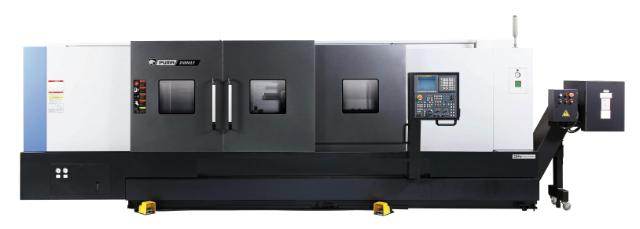

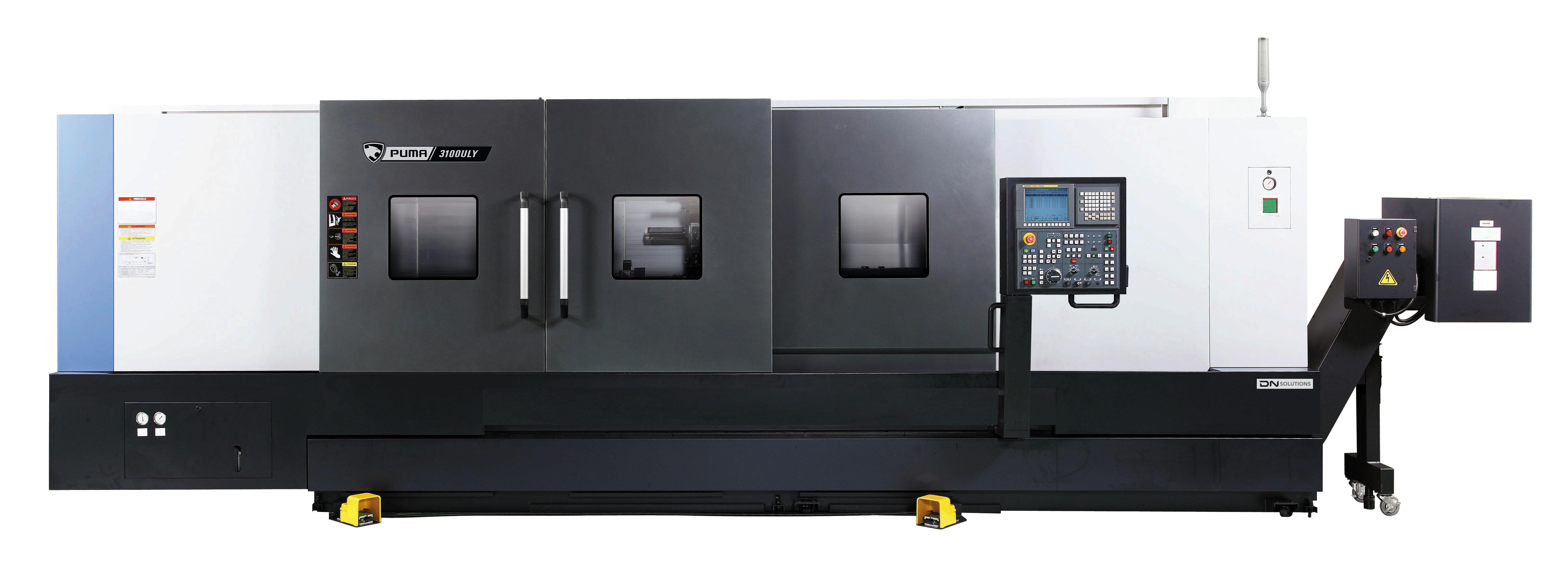

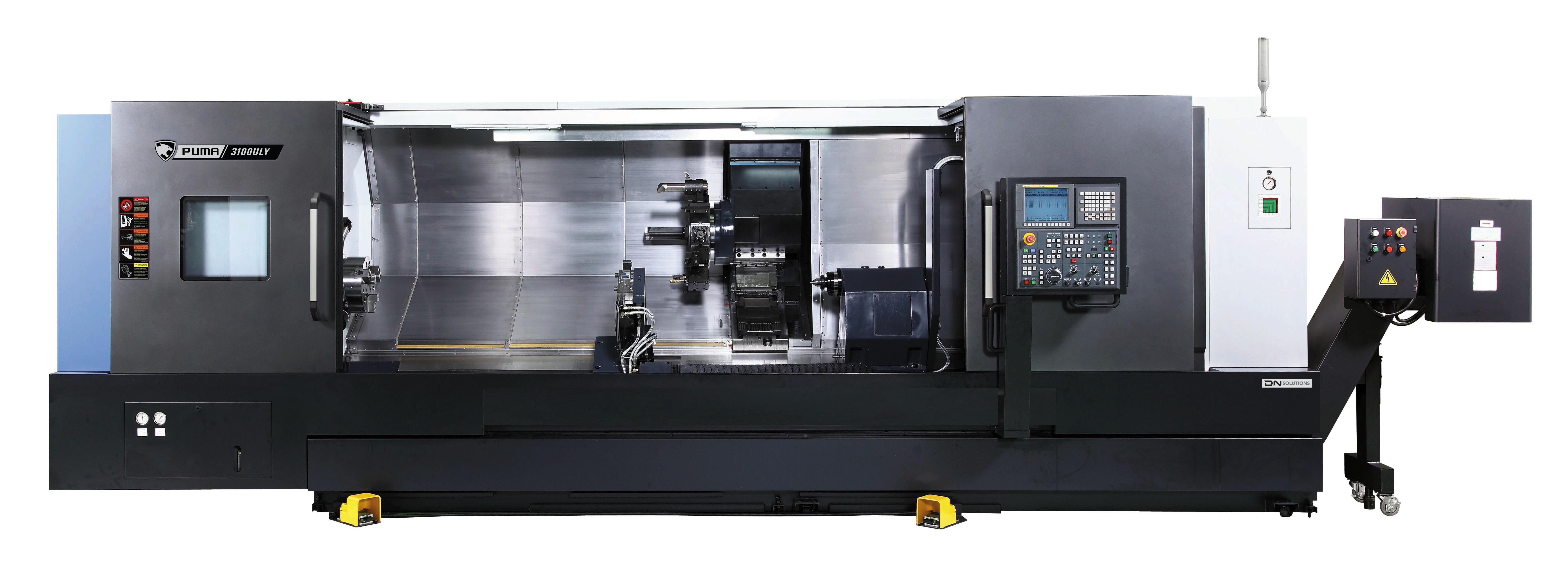

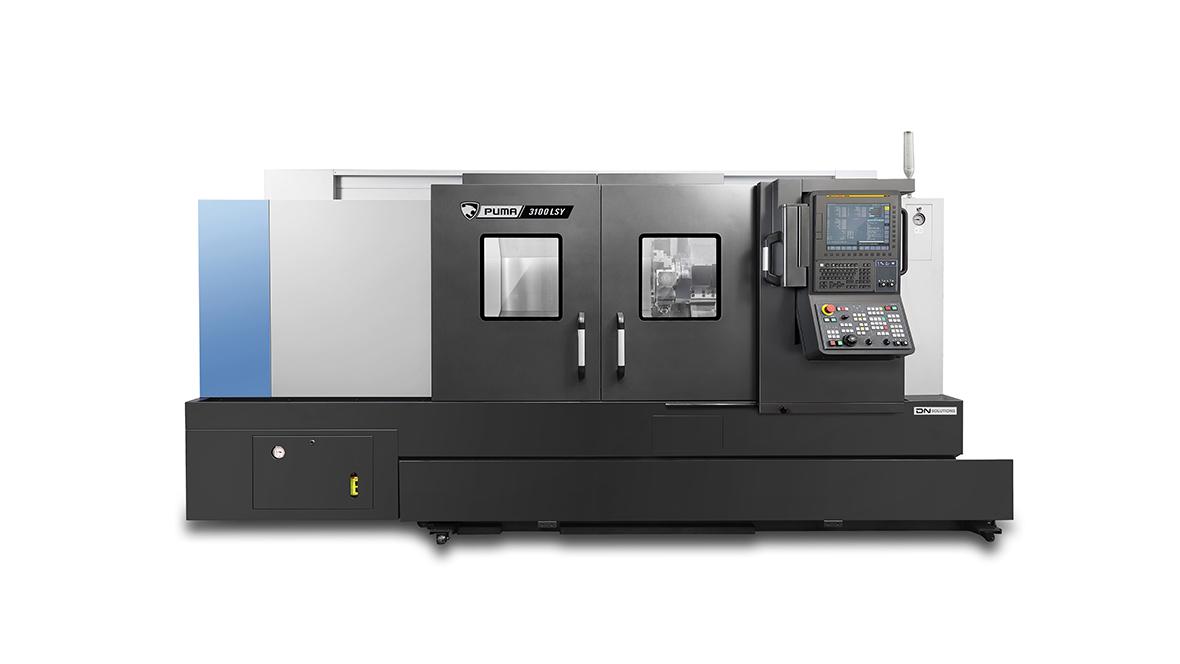

PUMA 3100 Series
- Versatile Configurations: Available in 2-axis, Y-axis, and sub-spindle models, catering to a wide range of machining requirements.
- Comprehensive Size Range: Covers 12" to 15" sizes, offering flexibility and adaptability for various applications.
- High-Level Performance: Designed to deliver superior precision and efficiency across all model variations.
Highlights
- Travels - X Axis Travel distance (mm): 293
- Travels - Z Axis Travel distance (mm): 830
- Chuck size (mm): 304.8
- Max. Turning Diameter (mm): 525
- Max. Turning Length (mm): 790

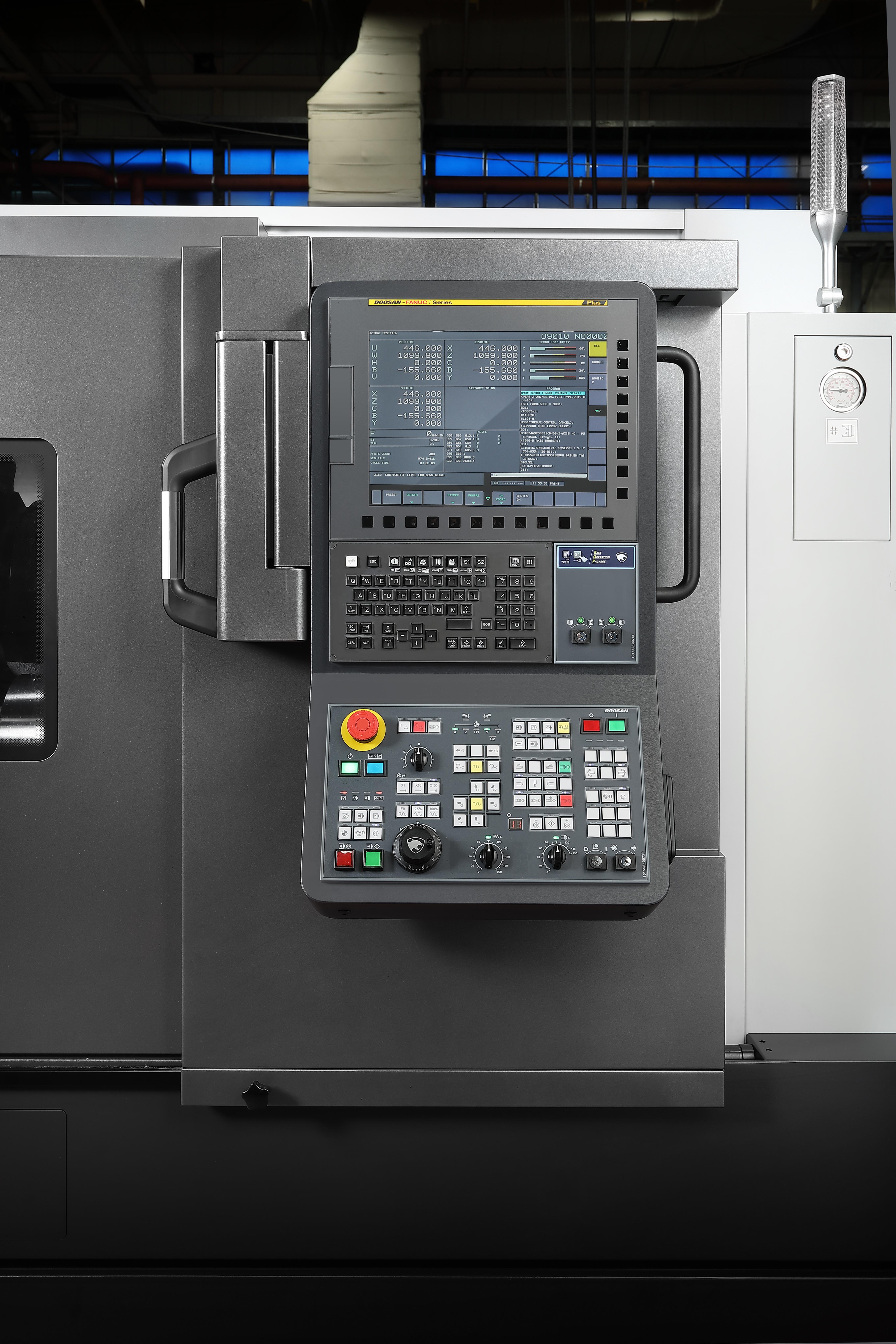

Compatible Control System
Series description
|
The PUMA 2100/2600/3100 series offers a comprehensive range of high-level turning centers with 12" to 15" sizes. These models vary from 2-axis to Y-axis and sub-spindle configurations, providing versatile solutions for diverse machining needs. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 293 |
|---|---|
| Travels - Z Axis Travel distance (mm) | 830 |
| Travels - X Axis Rapid Traverse (m/min) | 30 |
| Travels - Z Axis Rapid Traverse (m/min) | 30 |
Tool storage capacity
| Machining center - No. of tool station | 10 |
|---|
Capacity
| Chuck size (mm) | 304.8 |
|---|---|
| Max. Turning Diameter (mm) | 525 |
| Max. Turning Length (mm) | 790 |
| Bar Capacity (mm) | 102 |

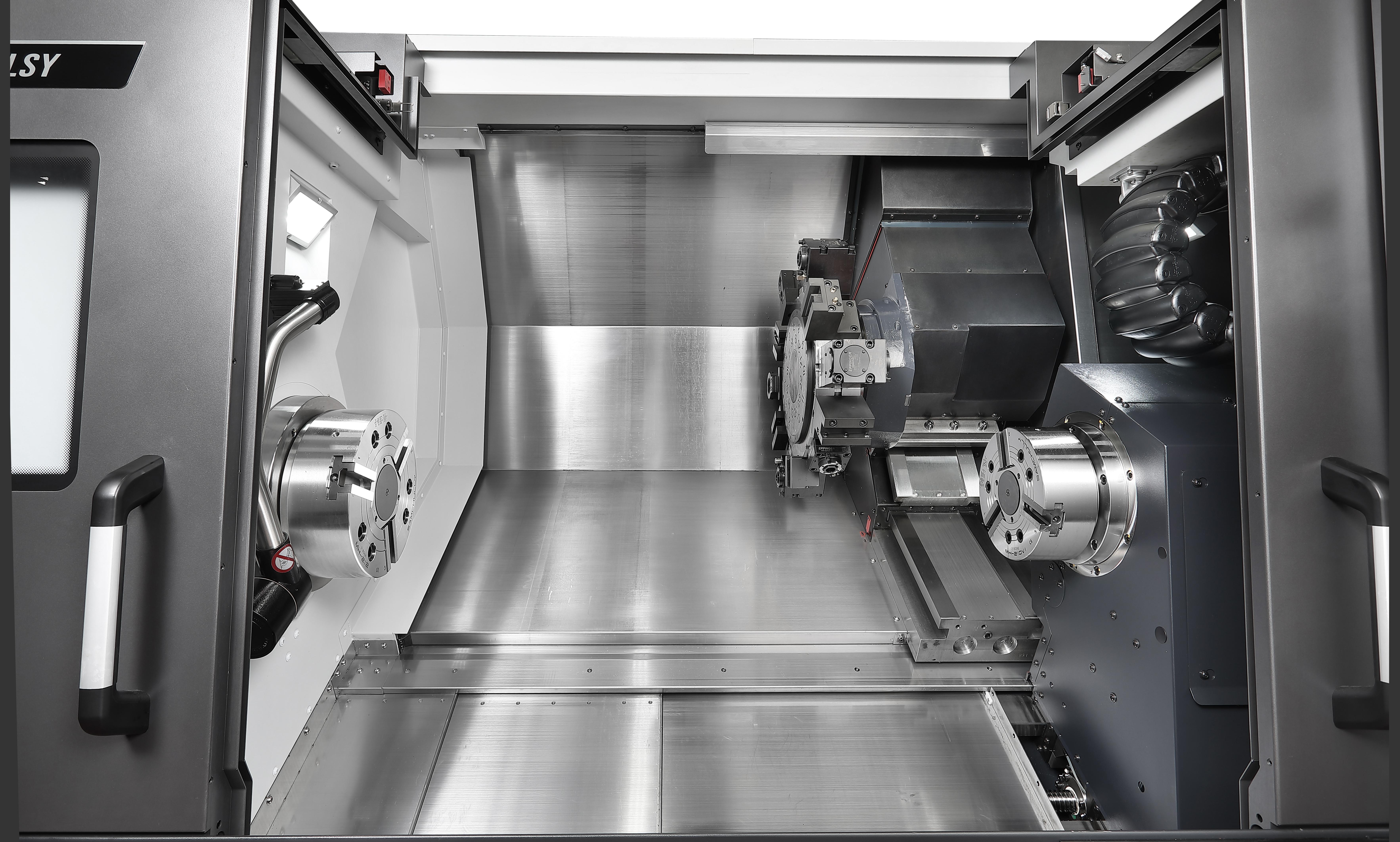

Main spindle
| Main Spindle Max. Speed | 2800 |
|---|---|
| Main Spindle Max. Power | 22 |
| Main Spindle Max. Torque | 1123 |
Turret
| Turret - No. of tool station | 10 |
|---|
Dimensions
| Length (mm) | 3908 |
|---|---|
| Height (mm) | 2010 |
| Width (mm) | 1978 |
| Weight (kg) | 5850 |
| Name | Download | File type | |
|---|---|---|---|
|
PUMA_3100.pdf | 10692 KB | |
|
TOOLING SYSTEM-PUMA-2100-2600-3100.pdf | 1504 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
