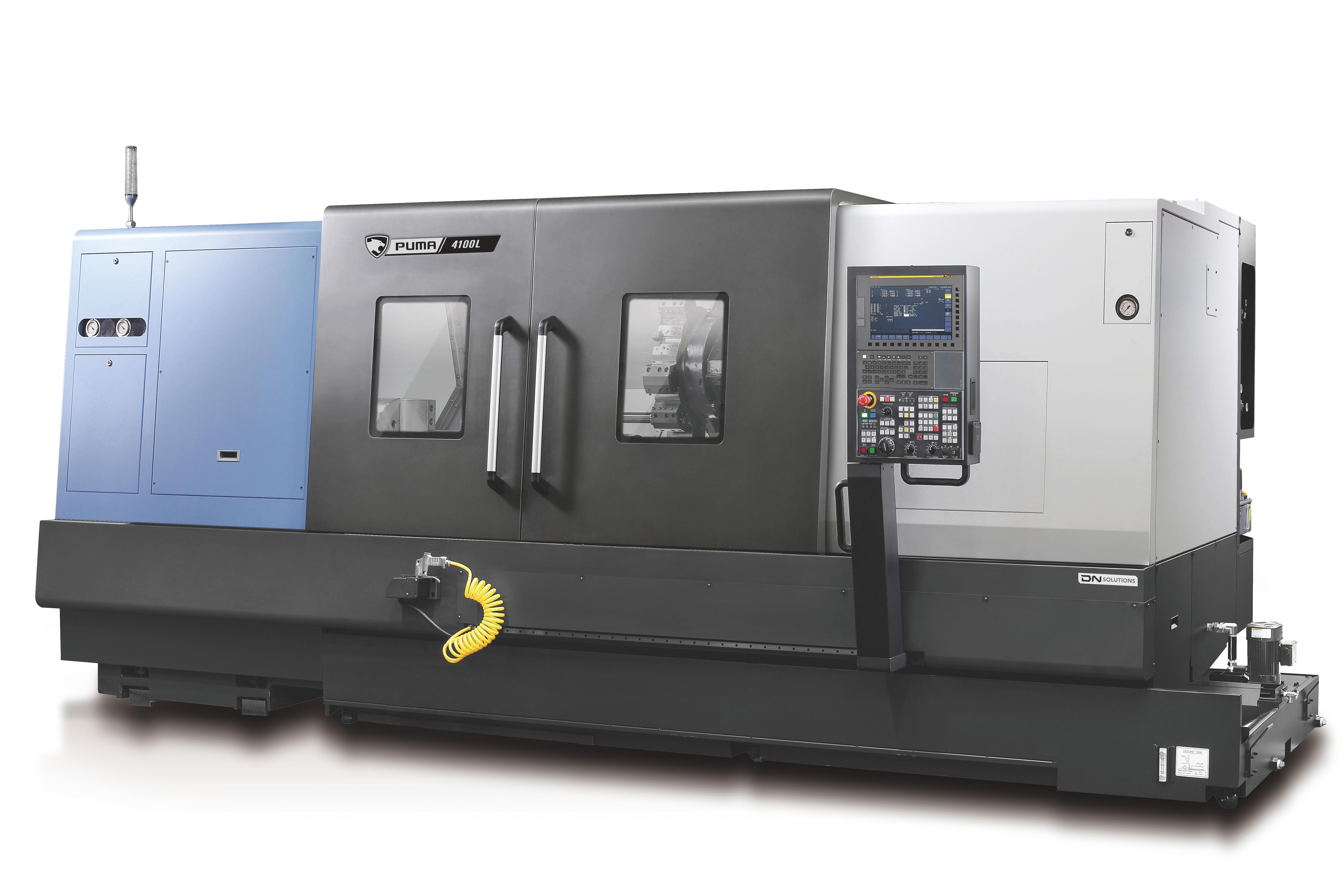

    PUMA 4100 Series

    MEDIUM TO LARGE TURNING CENTERS WITH 2-AXIS THROUGH TO Y-AXIS MACHINING CAPABILITIES

    • High Precision and Rigidity: The robust box guideway structure and high torque motors ensure stable and precise machining, even for challenging materials.
    • Versatility in Applications: Optional Y-axis and threading functions enable the handling of complex workpieces, making the machines suitable for a wide range of industries.
    • Efficient Power Transmission: The two-step gearbox delivers optimal power and torque, enhancing machining efficiency and productivity for medium to large workpieces.

    Highlights

    • Travels - X Axis Travel distance (mm): 352
    • Travels - Z Axis Travel distance (mm): 1105
    • Chuck size (mm): 304.8
    • Max. Turning Diameter (mm): 550
    • Max. Turning Length (mm): 1074

    Compatible Control System

      Fanuc

    Series description

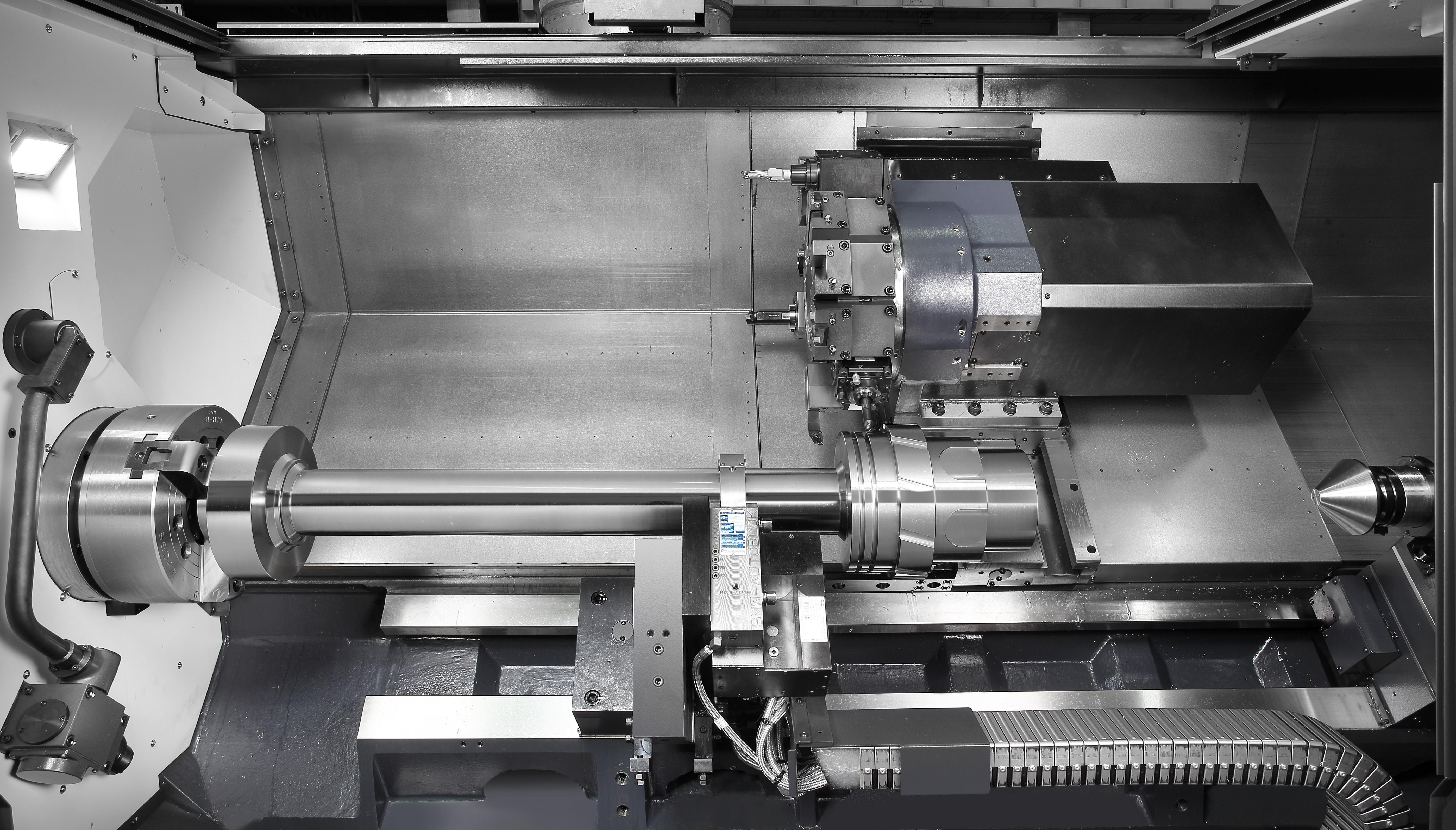

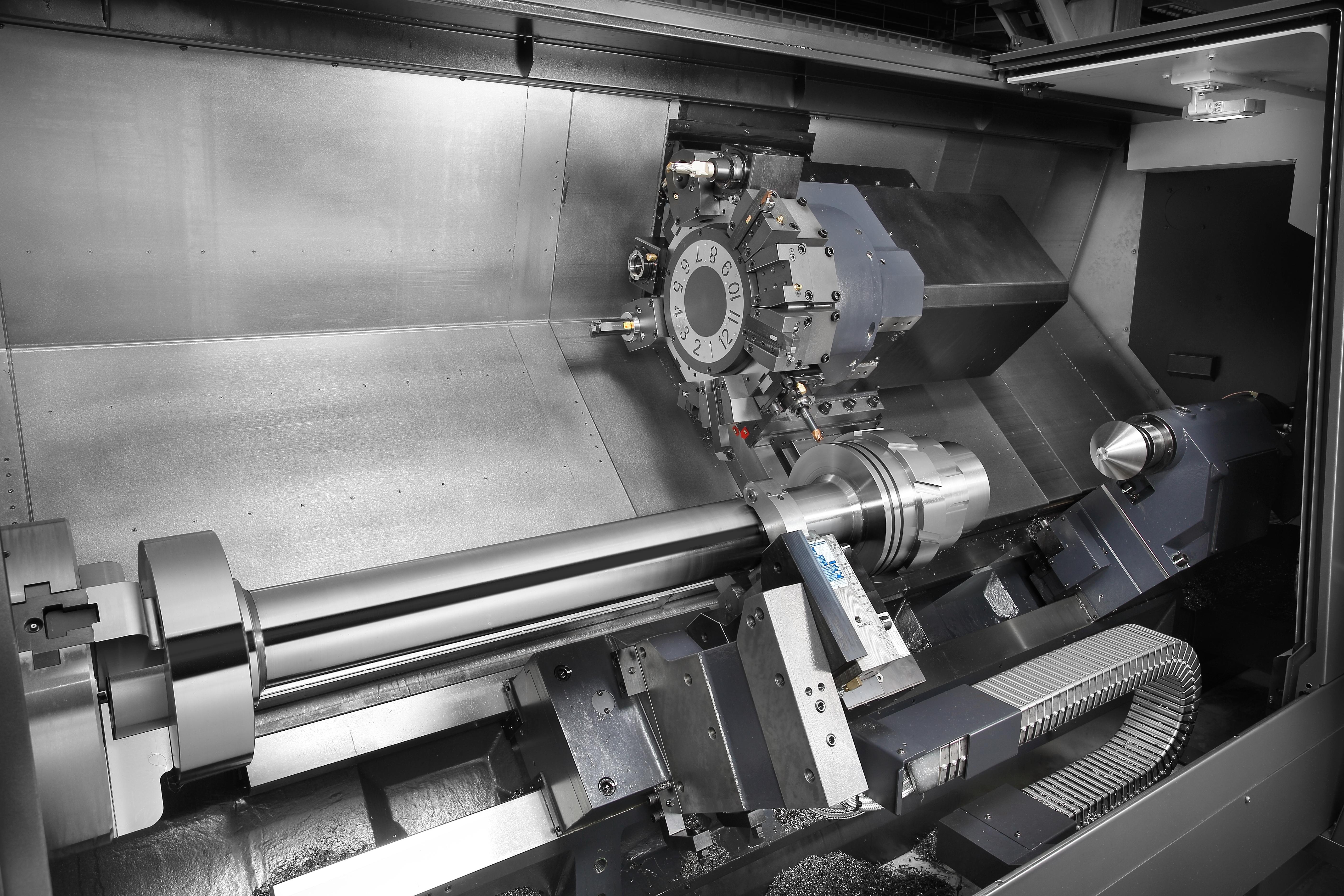

    PUMA 4100/5100 series machines are horizontal turning centers designed for machining medium-tolarge size workpieces. They are powerful machines using a two-step gearbox and high torque motors and feature a rigid box guideway structure. Selected models can process complex workpieces by using the optional Y-axis function and, optional DN Solutions threading functions, especially useful for oil and gas parts, make PUMA 4100/5100 machines the ideal solution for many industries and applications.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 352
    Travels - Z Axis Travel distance (mm) 1105
    Travels - X Axis Rapid Traverse (m/min) 16
    Travels - Z Axis Rapid Traverse (m/min) 20

    Tool storage capacity

    Machining center - No. of tool station 12

    Capacity

    Chuck size (mm) 304.8
    Max. Turning Diameter (mm) 550
    Max. Turning Length (mm) 1074
    Bar Capacity (mm) 102

    Main spindle

    Main Spindle Max. Speed 2800
    Main Spindle Max. Power 35
    Main Spindle Max. Torque 1584

    Turret

    Turret - No. of tool station 12

    Dimensions

    Length (mm) 4654
    Height (mm) 2194
    Width (mm) 2056
    Weight (kg) 9450
