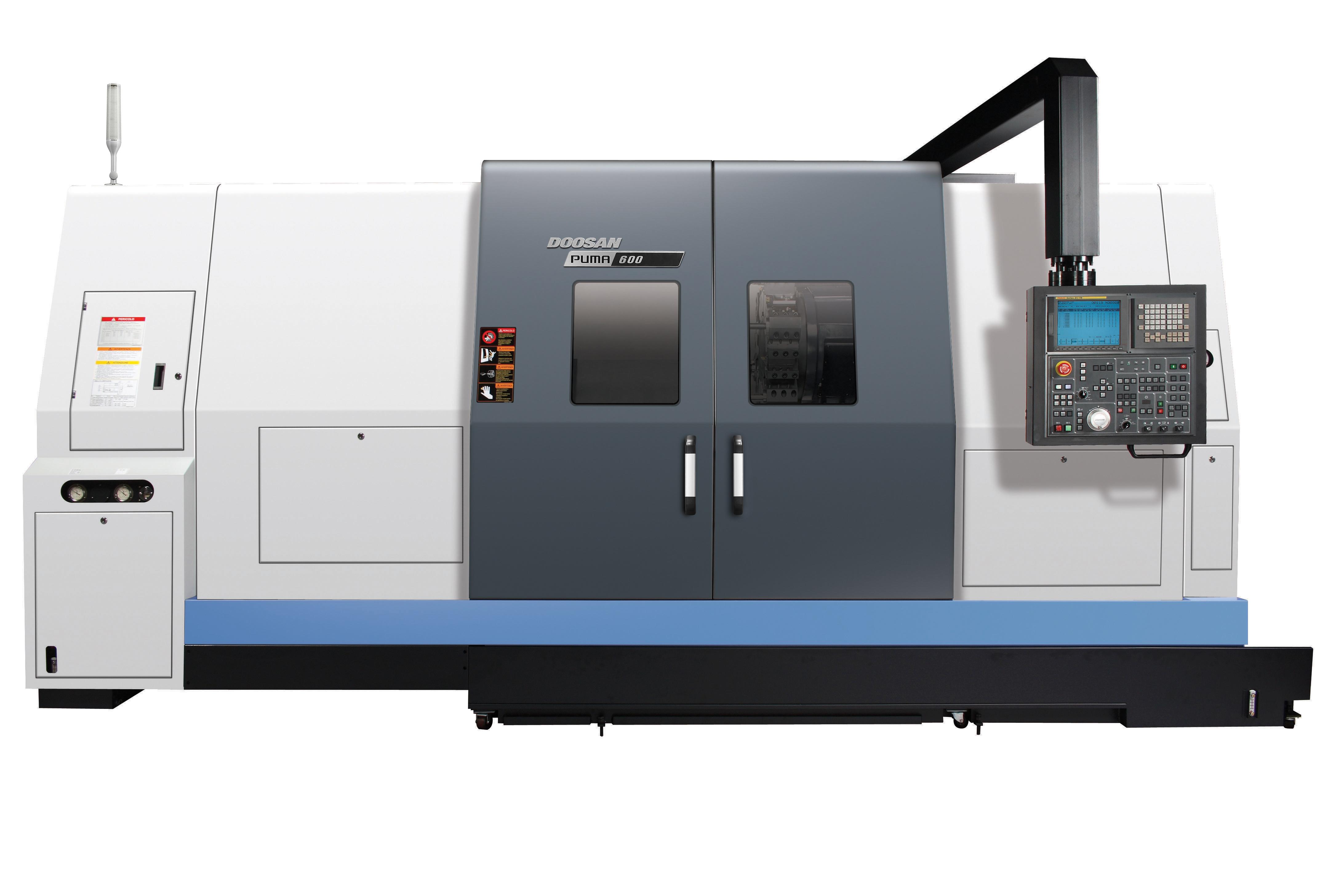

PUMA 600L II
- Large Capacity: Capable of handling workpieces with diameters up to Ø900mm and lengths up to 5050mm, accommodating the largest components in their class.
- Versatile Applications: Ideal for producing critical components across multiple industries, including oil and gas, construction, aerospace, and shipbuilding.

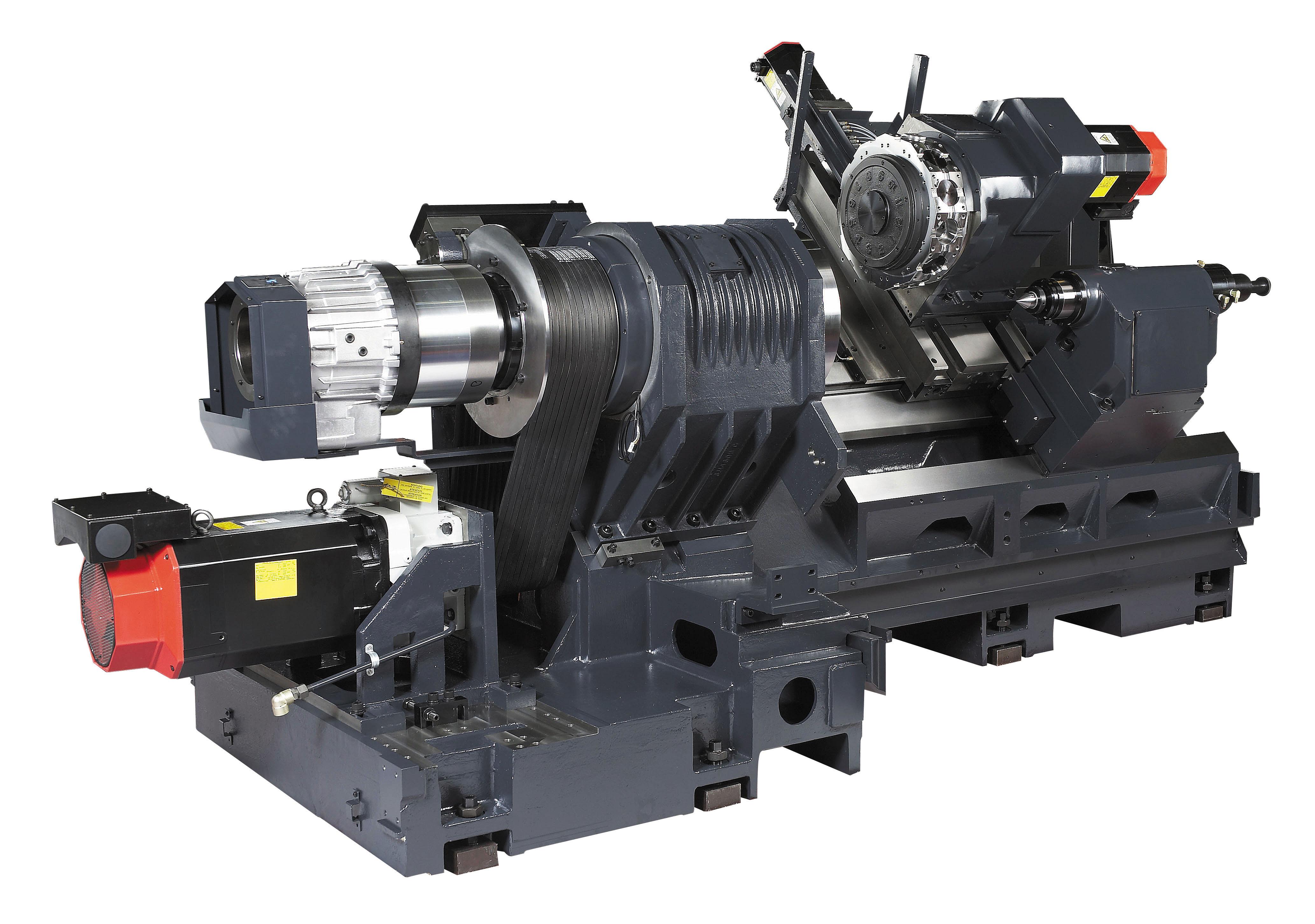

- Efficient Chip Management: The slant bed design ensures smooth chip disposal, improving machine uptime and operator convenience.
Highlights
- Travels - X Axis Travel distance (mm): 470
- Travels - Y Axis Travel distance (mm):
- Travels - Z Axis Travel distance (mm): 3235
- Chuck size (mm): 450
- Max. Turning Diameter (mm): 900
- Max. Turning Length (mm): 3200
Compatible Control System
Series description
|

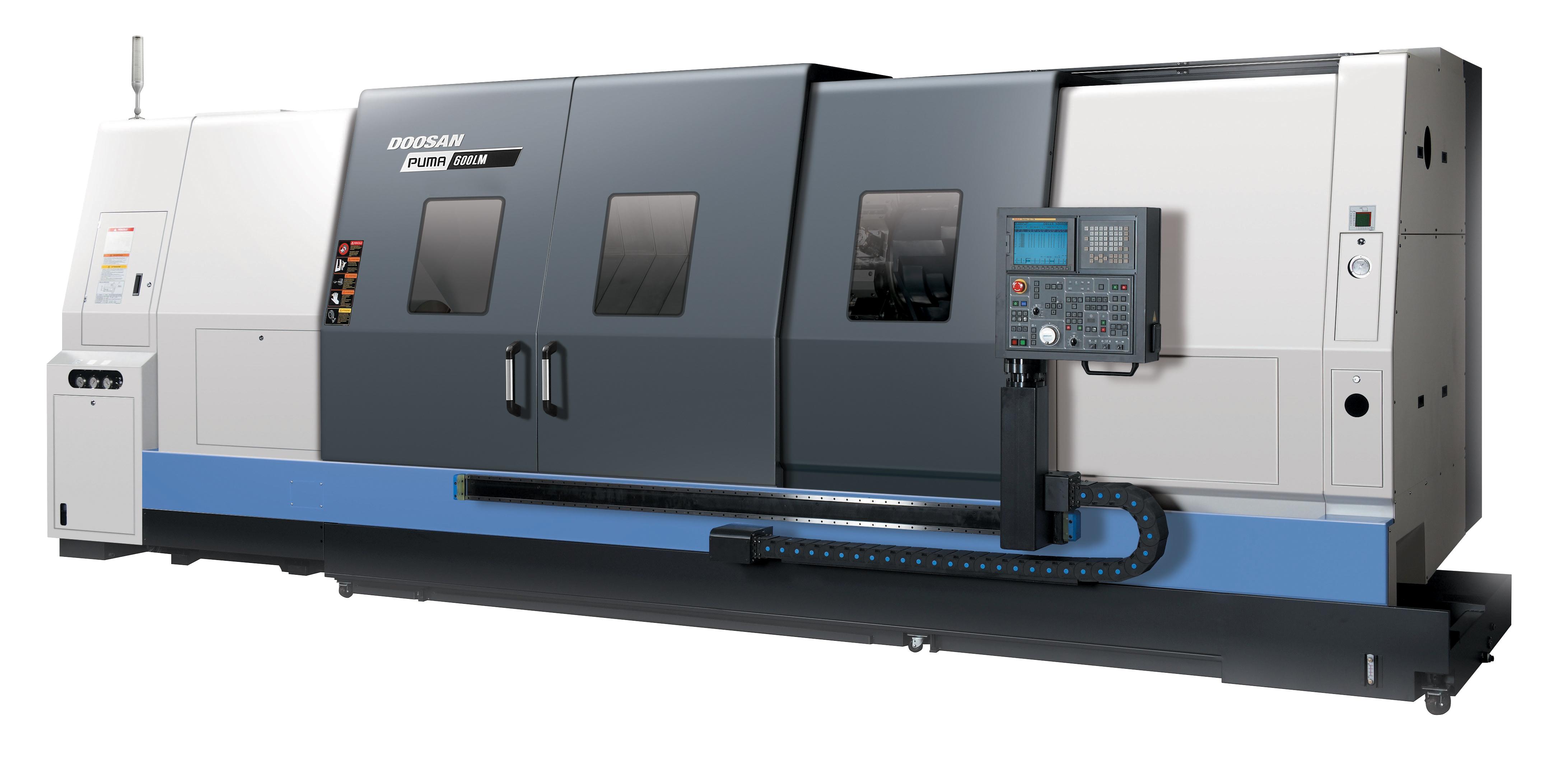

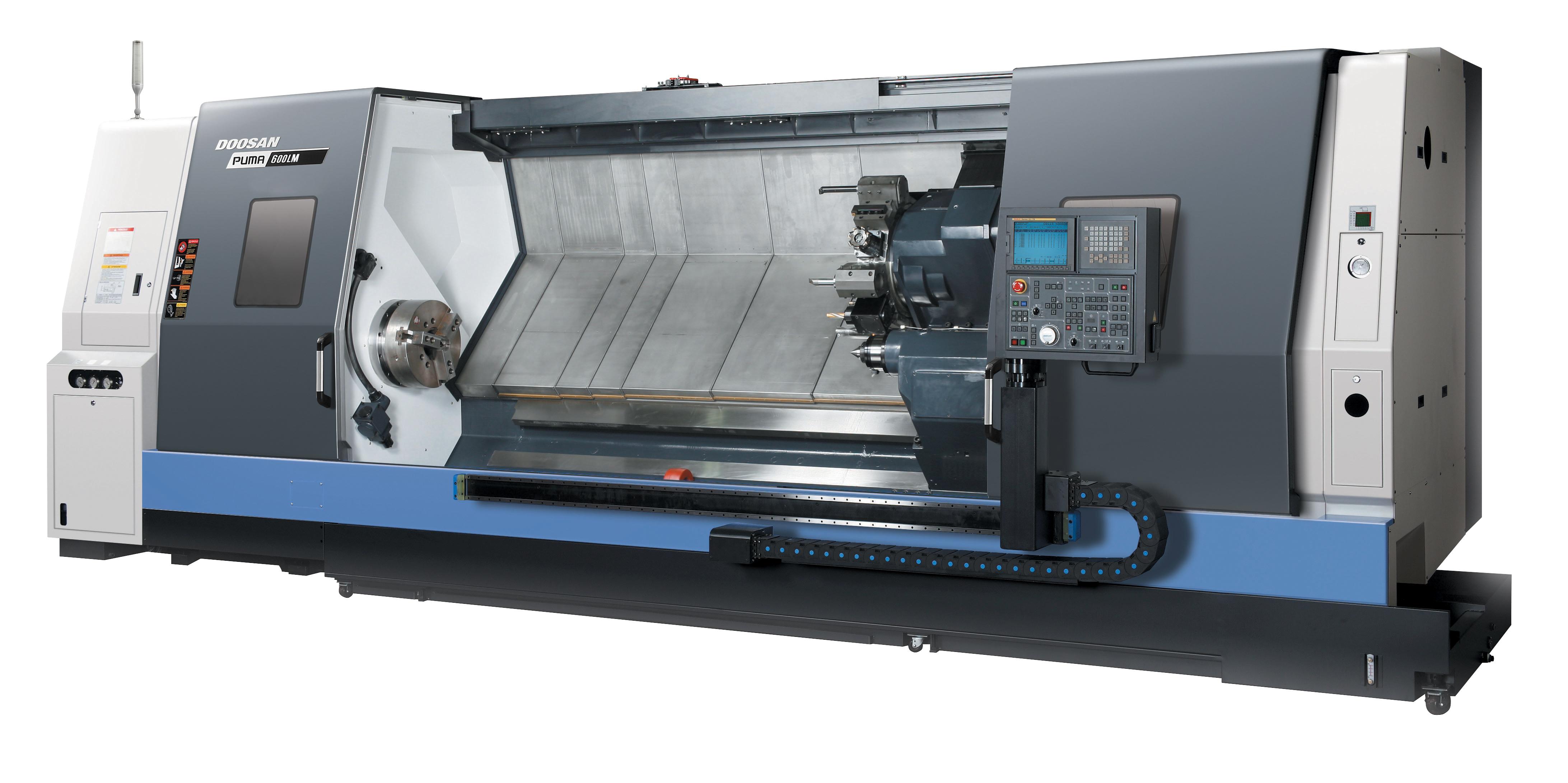

The PUMA 600/700/800 II series are large horizontal turning centers designed for machining substantial workpieces, such as pipes, valves, and flanges used in the oil and gas industry, hydraulic components for construction equipment, and complex parts for the aerospace and shipbuilding sectors. These machines offer impressive maximum turning diameters of Ø900mm (35.4 inches) and lengths up to 5050mm (198.8 inches), making them leaders in their class. The slant bed design facilitates efficient chip disposal, enhancing overall machining performance and convenience. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 470 |
|---|---|
| Travels - Y Axis Travel distance (mm) | |
| Travels - Z Axis Travel distance (mm) | 3235 |
| Travels - X Axis Rapid Traverse (m/min) | 12 |
| Travels - Z Axis Rapid Traverse (m/min) | 10 |
Feed rates
| Feed rate - Y Axis Rapid Traverse |
|---|
Table
| Table Length (mm) | |
|---|---|
| Table Width (mm) | |
| Max. Workpiece weight (kg) | |
| Pallet Size (mm) | |
| Rotary Table Diameter (mm) | |
| Max. Table weight (kg) |
Workpiece capacity
| Max. Workpiece Diameter (mm) | |
|---|---|
| Max. Workpiece Height (mm) | |
| Max. Workpiece weight (kg) |
Tool storage capacity
| Machining center - No. of tool station | 12 |
|---|
Capacity
| Chuck size (mm) | 450 |
|---|---|
| Max. Turning Diameter (mm) | 900 |
| Max. Turning Length (mm) | 3200 |
| Bar Capacity (mm) | 65 |
Main spindle
| Main Spindle Max. Speed | 1800 |
|---|---|
| Main Spindle Max. Power | 55 |
| Main Spindle Max. Torque | 6622 |
| Tool Taper (ISO) |
Turret
| Turret - No. of tool station | 12 |
|---|
Dimensions
| Length (mm) | 7354 |
|---|---|
| Height (mm) | 2590 |
| Width (mm) | 2713.5 |
| Weight (kg) | 22000 |
| Name | Download | File type | |
|---|---|---|---|
|
PUMA_600_700_800.pdf | 5119 KB | |
|
TOOLING SYSTEM-PUMA-600-700-800.pdf | 1655 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
