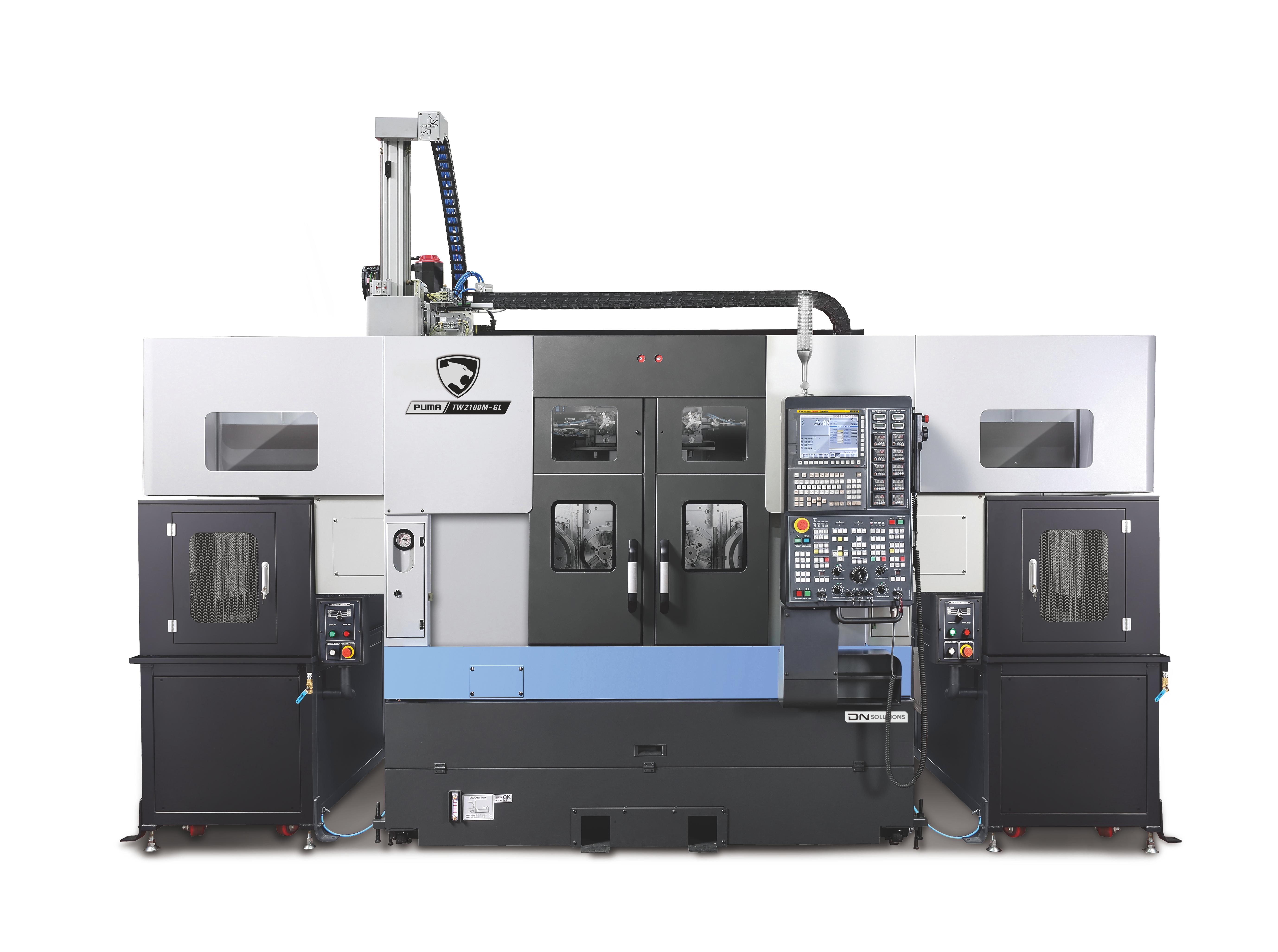

    PUMA TW2100 Series

    HIGH PRODUCTIVITY, 6/8/10/12 INCH CLASS, 2-SPINDLE HORIZONTAL TURNING CENTER

    • High Productivity: The twin-spindle design enables simultaneous machining, significantly boosting production efficiency.
    • Precision and Accuracy: Engineered for consistent accuracy, ensuring high-quality results in every operation.
    • Automated Efficiency: Advanced automation features streamline processes, reducing manual intervention and enhancing overall operational performance.

    Highlights

    • Travels - X Axis Travel distance (mm): 135
    • Travels - Z Axis Travel distance (mm): 160
    • Chuck size (mm): 203.2
    • Max. Turning Diameter (mm): 240
    • Max. Turning Length (mm): 128

    Compatible Control System

      Fanuc

    Series description

    The PUMA TW Series includes 6, 8, 10, and 12-inch turning centers that feature twin spindles for automated machining. These next-generation machines deliver exceptional productivity and precision, making them ideal for high-volume manufacturing. With advanced automation capabilities, the PUMA TW Series ensures consistent accuracy and high efficiency, leading to increased user satisfaction and operational excellence across various industrial applications.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 135
    Travels - Z Axis Travel distance (mm) 160
    Travels - X Axis Rapid Traverse (m/min) 24
    Travels - Z Axis Rapid Traverse (m/min) 24

    Tool storage capacity

    Machining center - No. of tool station 8+8

    Capacity

    Chuck size (mm) 203.2
    Max. Turning Diameter (mm) 240
    Max. Turning Length (mm) 128

    Main spindle

    Main Spindle Max. Speed 4500
    Main Spindle Max. Power 15
    Main Spindle Max. Torque 127

    Turret

    Turret - No. of tool station 8+8

    Dimensions

    Length (mm) 2030
    Height (mm) 2278
    Width (mm) 2098
    Weight (kg) 4650

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
