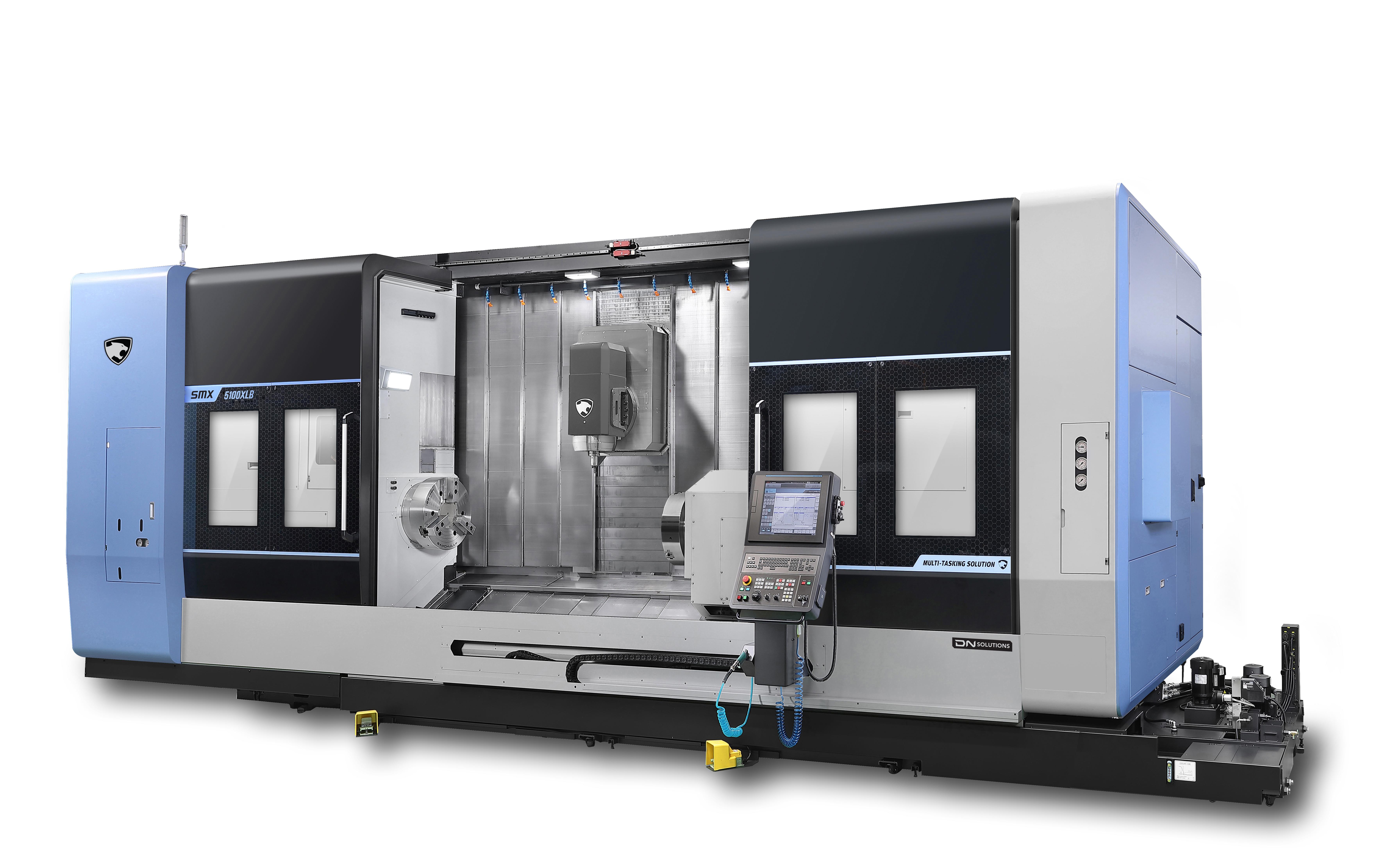

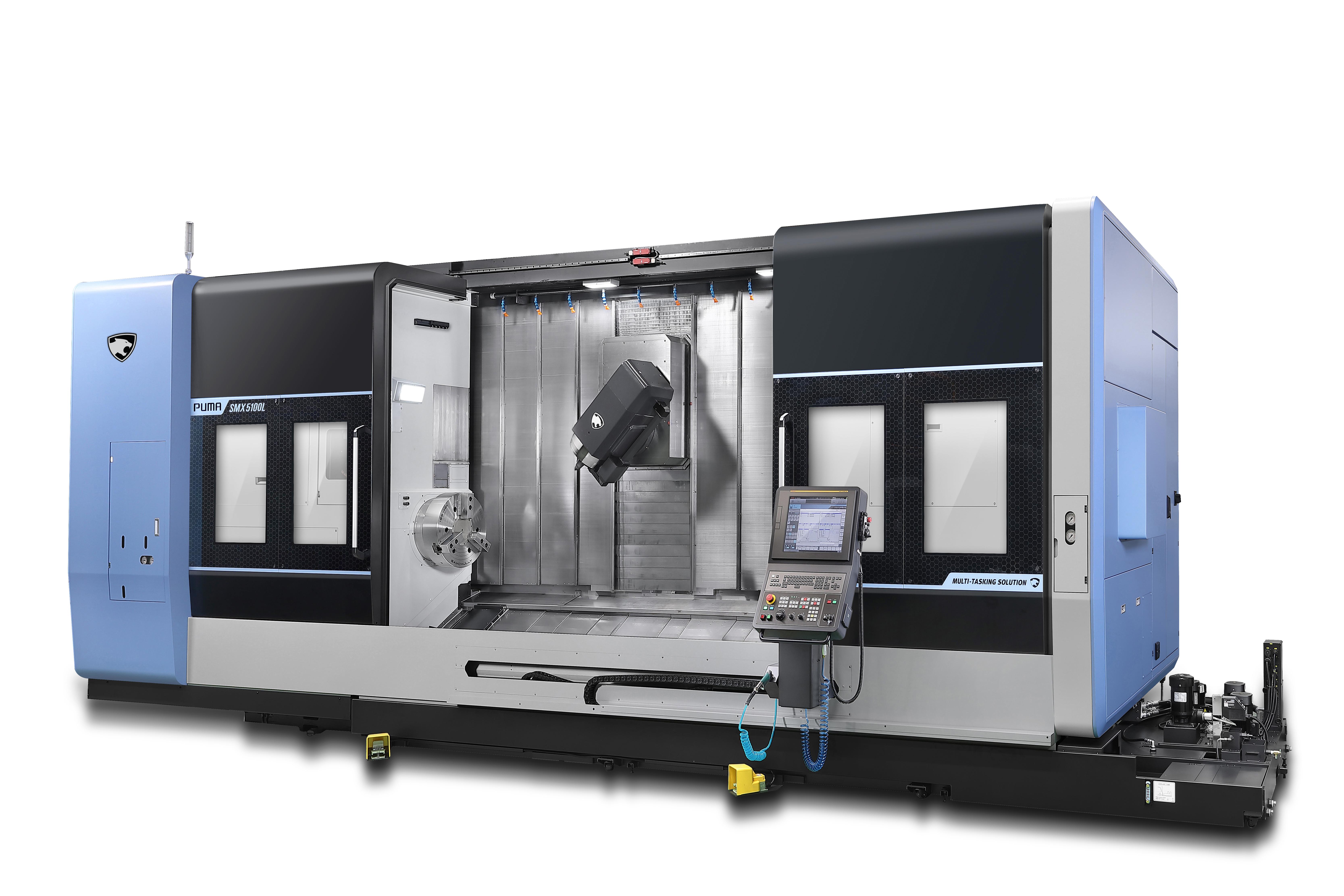

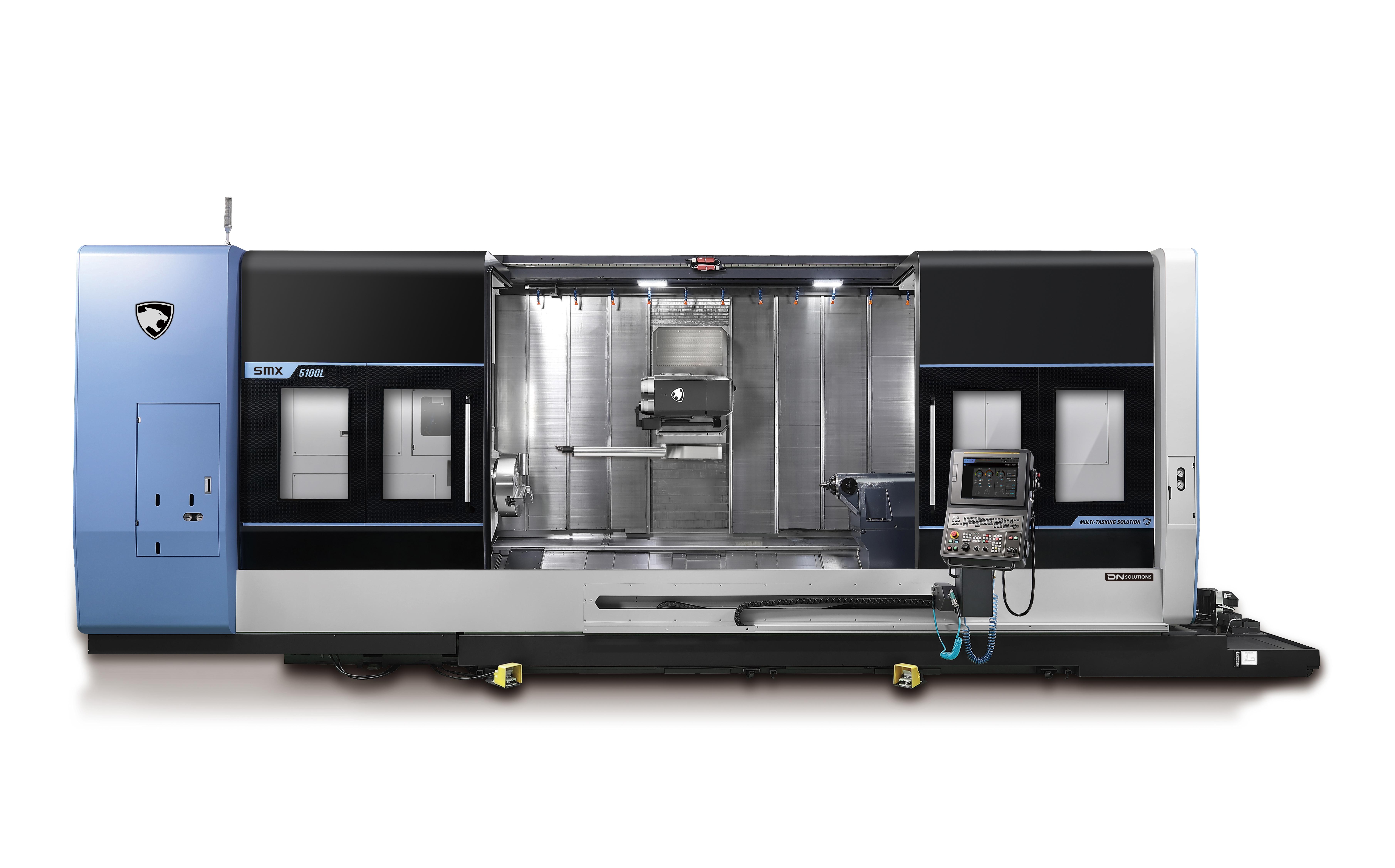

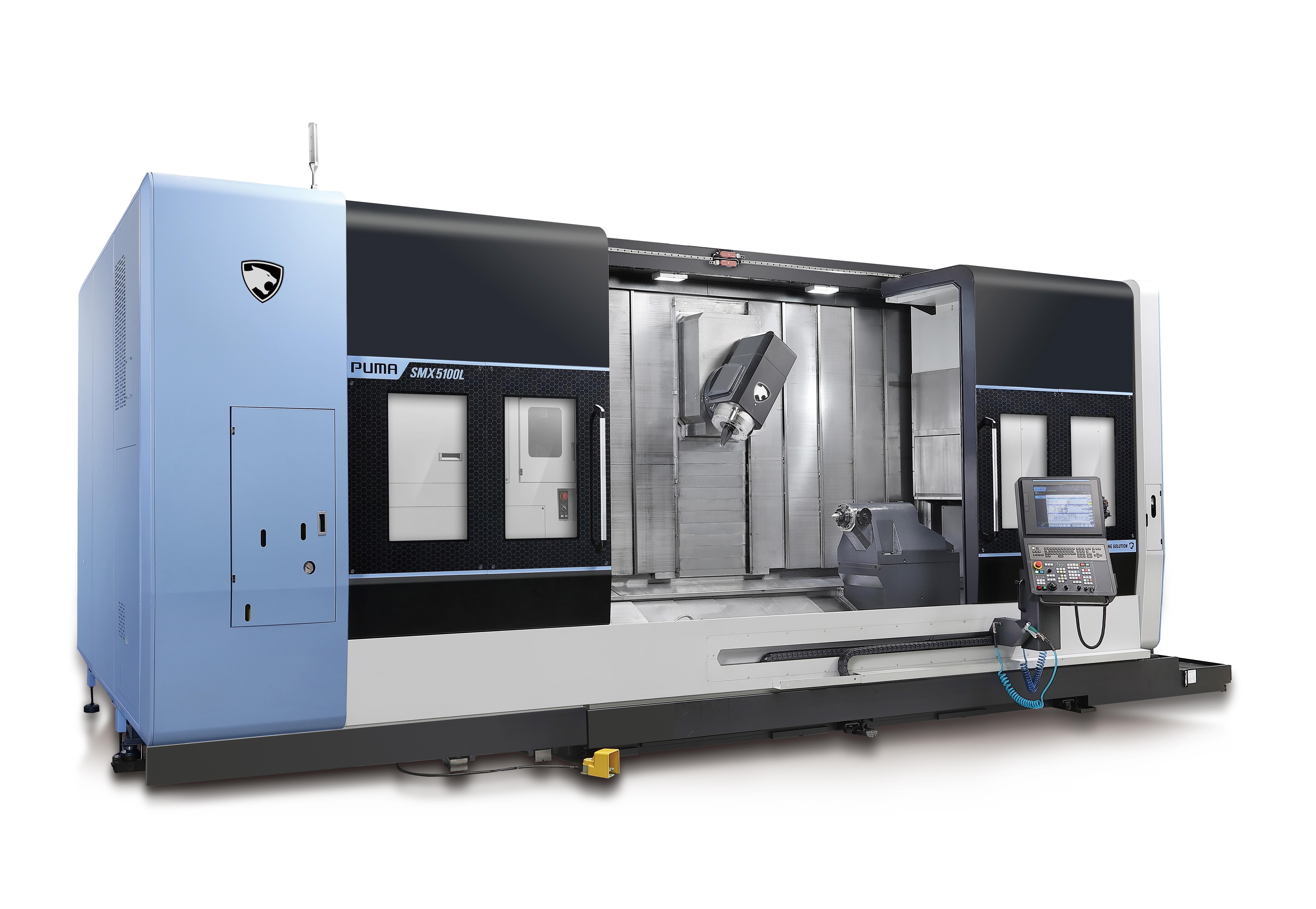

PUMA SMX5100LB
- Versatile Machining Capabilities: With nine axes and large chuck sizes, the PUMA SMX series handles complex machining tasks with ease.
- High Precision: Features rapid traverse rates, extensive Y-axis travel, and backlash-free B-axis motion, ensuring accuracy in every operation.
- User-Friendly Design: Ergonomic design prioritizes operator convenience and simplifies maintenance for enhanced productivity and ease of use.
Highlights
- Travels - X Axis Travel distance (mm): 910
- Travels - Y Axis Travel distance (mm): 520
- Travels - Z Axis Travel distance (mm): 3215
- Chuck size (mm): 530
- Max. Turning Diameter (mm): 830
- Max. Turning Length (mm): 3050
Compatible Control System
Series description
|

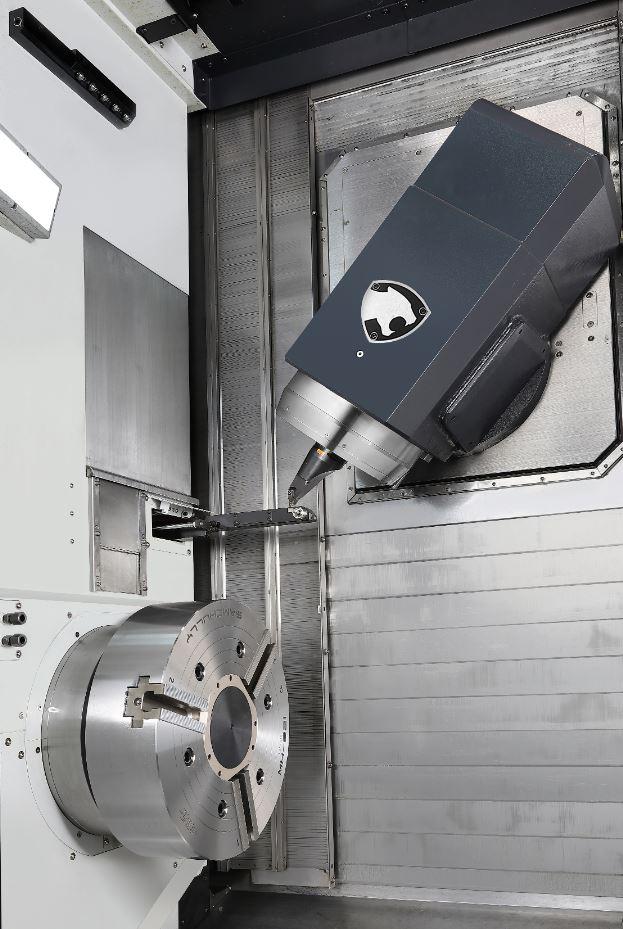

The PUMA SMX series is a multifunction mill-turn center featuring nine axes, allowing for virtually limitless machining possibilities. It boasts larger chuck sizes and the same high performance as the PUMA MX series, ensuring high precision and flexibility. Key features include rapid traverse rates, a large Y-axis travel, and backlash-free motion on the B-axis milling spindle. The ergonomic design emphasizes user convenience and efficient maintenance, making it an excellent choice for complex, high-precision tasks across various industries. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 910 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 520 |
| Travels - Z Axis Travel distance (mm) | 3215 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 40 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 40 |
| Feed rate - Z Axis Rapid Traverse | 40 |
Tool storage capacity
| Machining center - No. of tool station | 40 |
|---|
Capacity

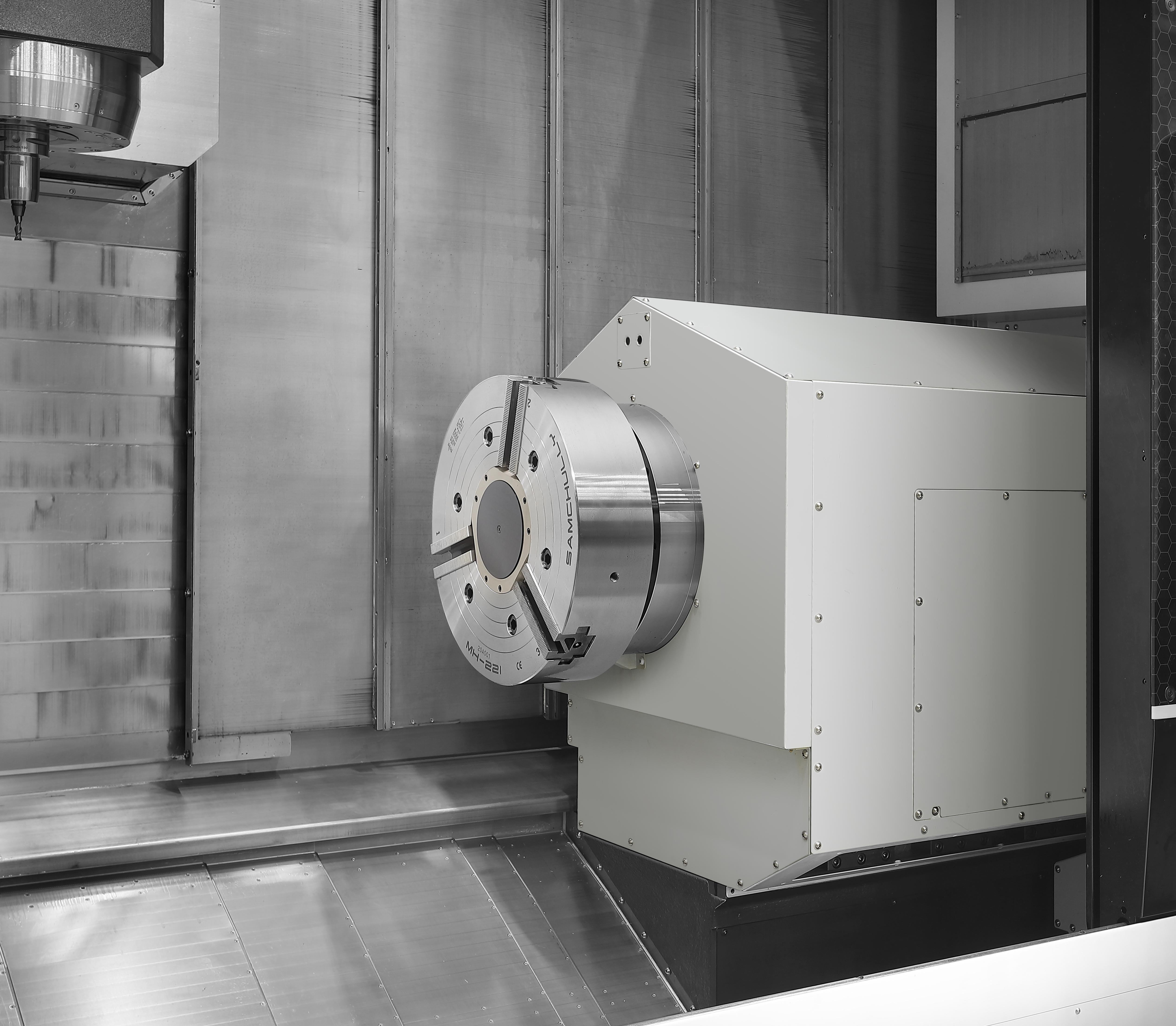

| Chuck size (mm) | 530 |
|---|---|
| Max. Turning Diameter (mm) | 830 |
| Max. Turning Length (mm) | 3050 |
Main spindle
| Tool Taper (ISO) | CAPTO C8 |
|---|
Turret
| Rotary Tool (r/min) | 10000 |
|---|
Dimensions
| Length (mm) | 9222 |
|---|---|
| Height (mm) | 3346 |
| Width (mm) | 3597 |
| Weight (kg) | 33000 |
| Name | Download | File type | |
|---|---|---|---|
|
SMX_5100.pdf | 6218 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
