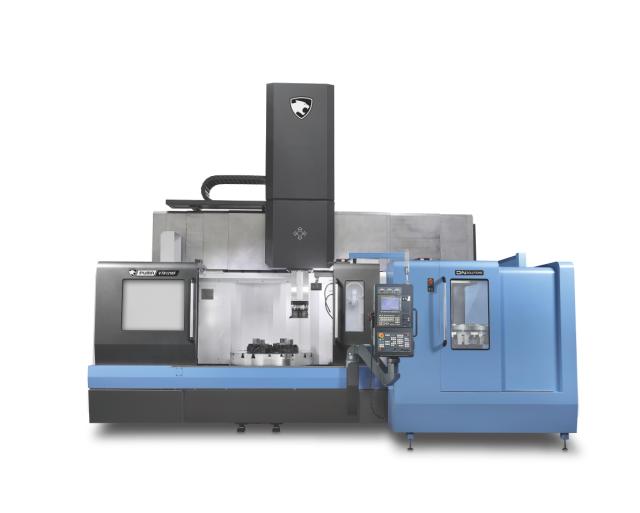

PUMA VTR1216F

LARGE RAM-TYPE VERTICAL TURNING CENTER

  • Largest Table Diameter: Accommodates a wide range of workpieces with table diameters up to 2500mm (98.4 inches).
  • Enhanced Stability: Rigid design and wide-column structure provide superior stability during heavy-duty operations.
  • High Productivity: Optimized for efficient, high-volume machining with reliable performance and durability.

Highlights

  • Travels - X Axis Travel distance (mm): 1700
  • Travels - Z Axis Travel distance (mm): 900
  • Chuck size (mm): 1270
  • Max. Turning Diameter (mm): 1600
  • Max. Turning Length (mm): 950

Compatible Control System

    Fanuc

Series description

The PUMA VTR Series features the largest table diameter in its class, ranging from Ø1250mm to Ø2500mm (50.0 to 98.4 inches). These machines are designed for maximum stability and productivity, with a robust, wide-column structure that ensures exceptional rigidity and reliable performance in demanding machining applications.

Build Your Custom CNC Machine

Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

DETAIL1658 https://youtu.be/UJjWc38OhFc https://youtu.be/UJjWc38OhFc

Travels

Travels - X Axis Travel distance (mm) 1700
Travels - Z Axis Travel distance (mm) 900
Travels - X Axis Rapid Traverse (m/min) 12
Travels - Z Axis Rapid Traverse (m/min) 10

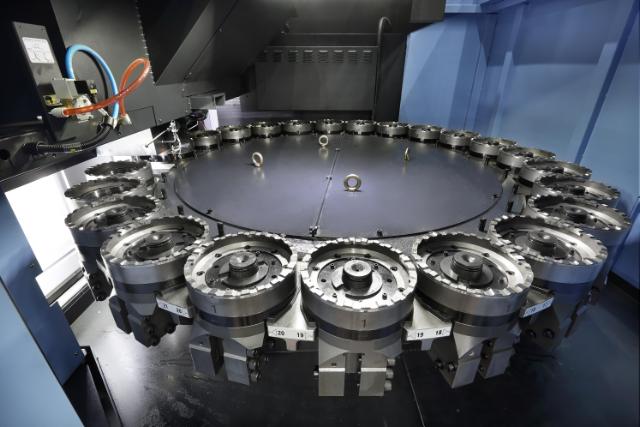

Tool storage capacity

Machining center - No. of tool station 12

Capacity

Chuck size (mm) 1270
Max. Turning Diameter (mm) 1600
Max. Turning Length (mm) 950

Main spindle

Main Spindle Max. Speed 400
Main Spindle Max. Power 45
Main Spindle Max. Torque 20557

Turret

Turret - No. of tool station 12

Dimensions

Length (mm) 5590
Height (mm) 5065
Width (mm) 4066
Weight (kg) 27500
