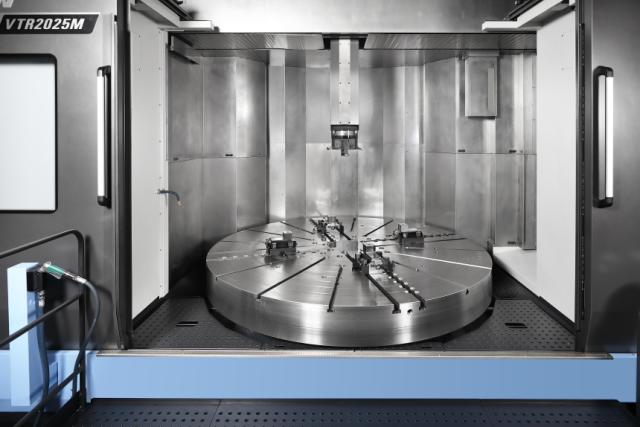

    PUMA VTR2025

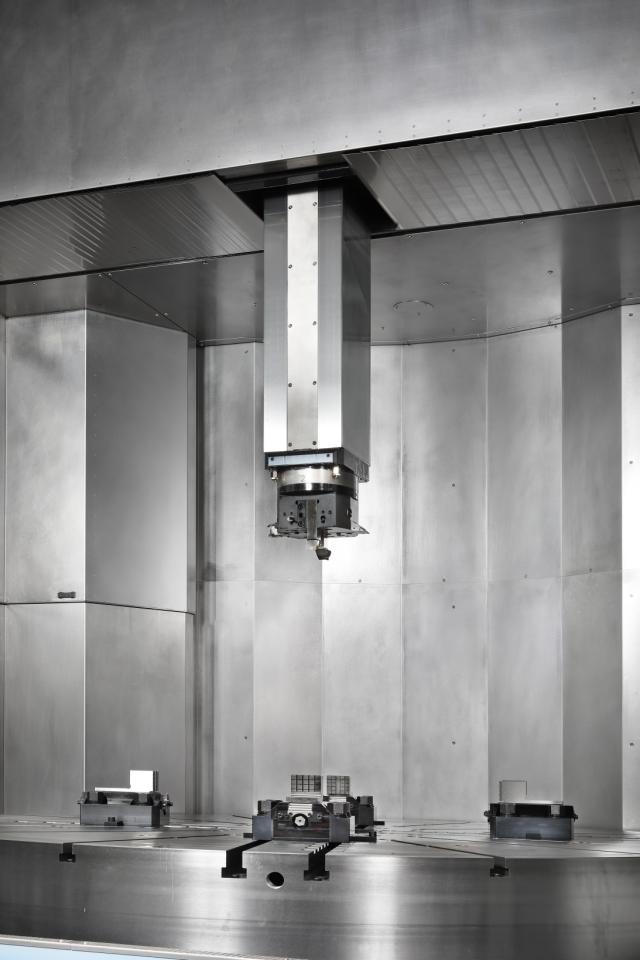

    LARGE RAM-TYPE VERTICAL TURNING CENTER

    • Largest Table Diameter: Accommodates a wide range of workpieces with table diameters up to 2500mm (98.4 inches).
    • Enhanced Stability: Rigid design and wide-column structure provide superior stability during heavy-duty operations.
    • High Productivity: Optimized for efficient, high-volume machining with reliable performance and durability.

    Highlights

    • Travels - X Axis Travel distance (mm): 1640/1000
    • Travels - Z Axis Travel distance (mm): 1400
    • Max. Turning Diameter (mm): 2500
    • Max. Turning Length (mm): 2000

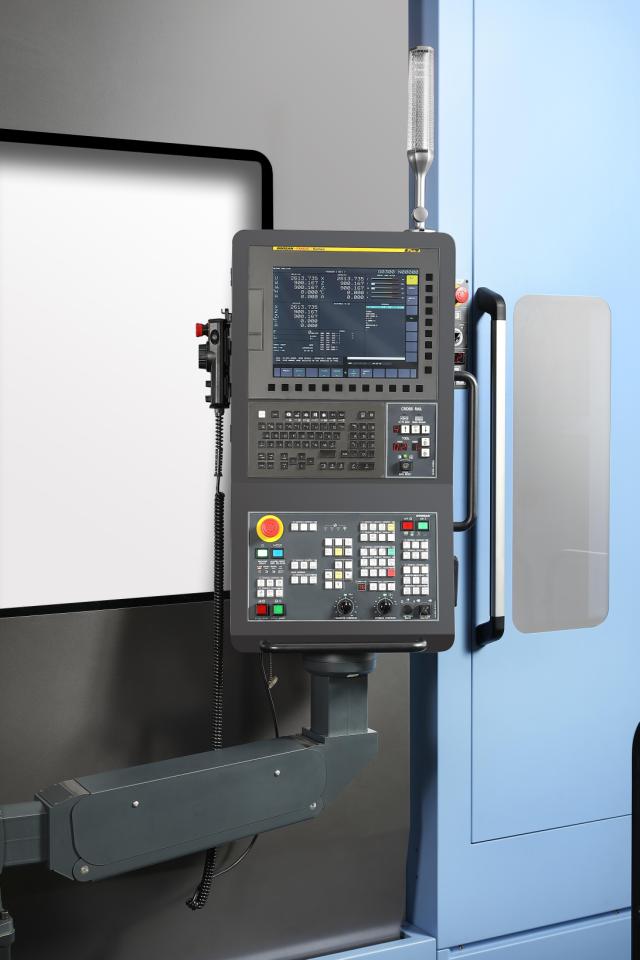

    Compatible Control System

      Fanuc

    Series description

    The PUMA VTR Series features the largest table diameter in its class, ranging from Ø1250mm to Ø2500mm (50.0 to 98.4 inches). These machines are designed for maximum stability and productivity, with a robust, wide-column structure that ensures exceptional rigidity and reliable performance in demanding machining applications.

    Build Your Custom CNC Machine

    Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

    Travels

    Travels - X Axis Travel distance (mm) 1640/1000
    Travels - Z Axis Travel distance (mm) 1400

    Feed rates

    Feed rate - X Axis Rapid Traverse 10
    Feed rate - Z Axis Rapid Traverse 10

    Tool storage capacity

    Machining center - No. of tool station 15

    Capacity

    Max. Turning Diameter (mm) 2500
    Max. Turning Length (mm) 2000

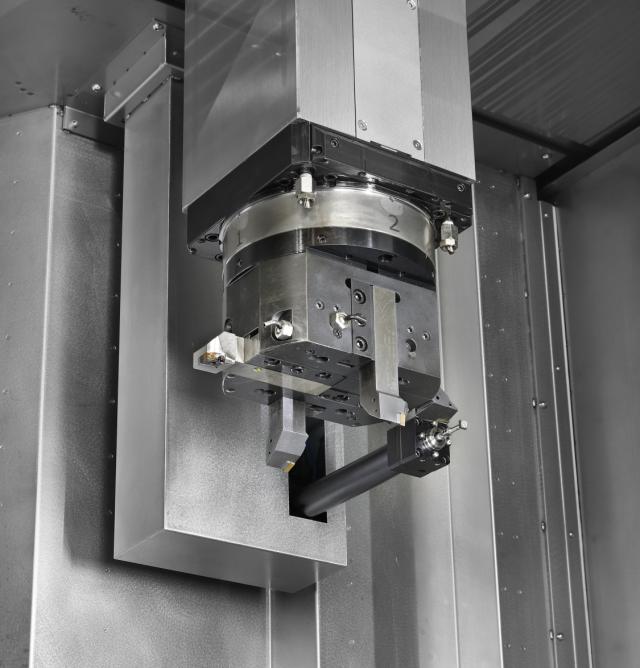

    Turret

    Rotary Tool (r/min) 3000

    Dimensions

    Length (mm) 7296
    Height (mm) 7600
    Width (mm) 4836
    Weight (kg) 55000

    The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
